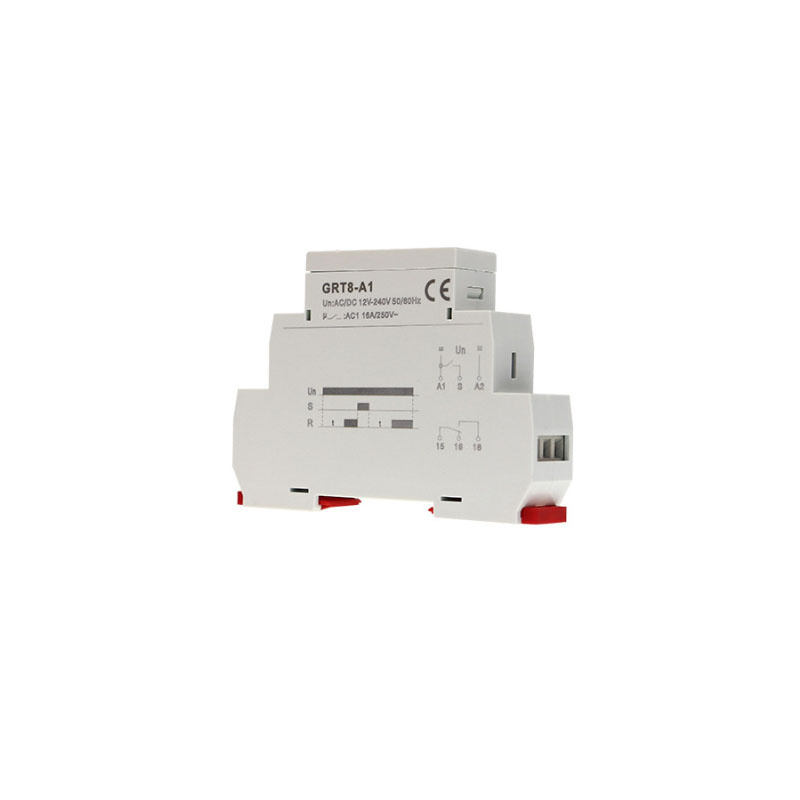

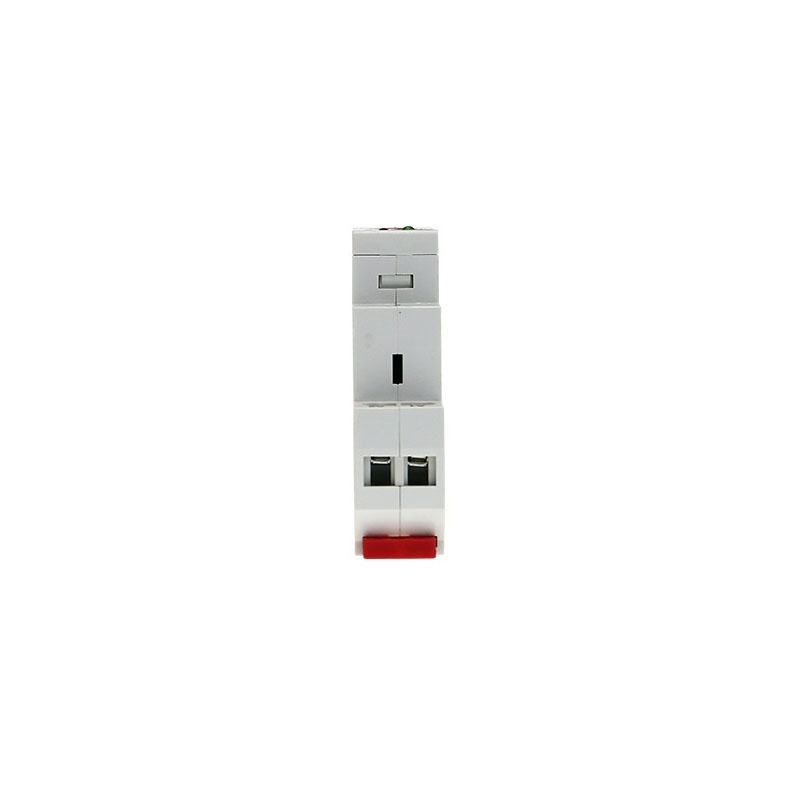

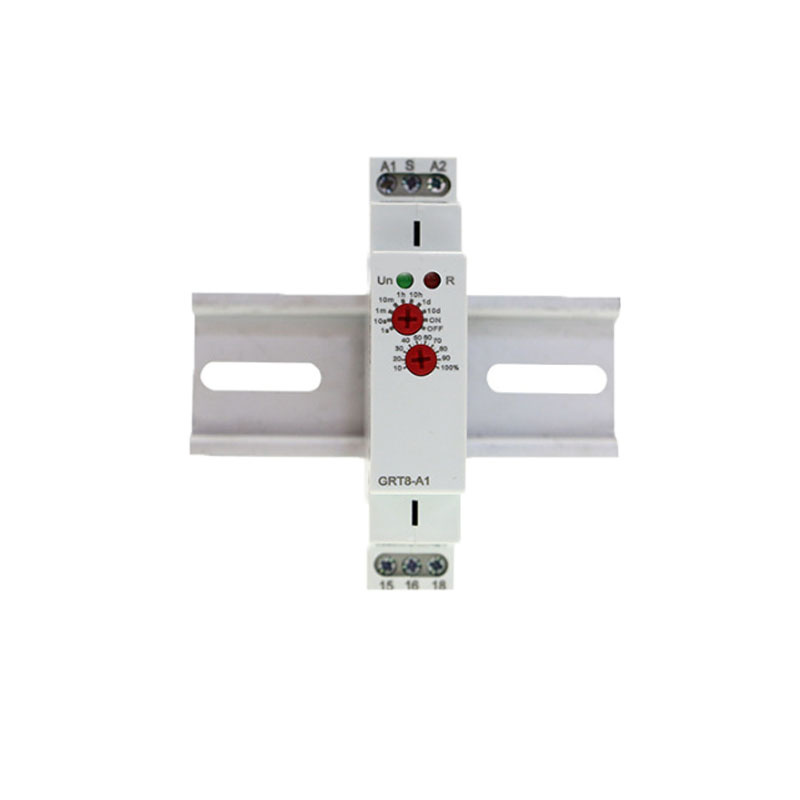

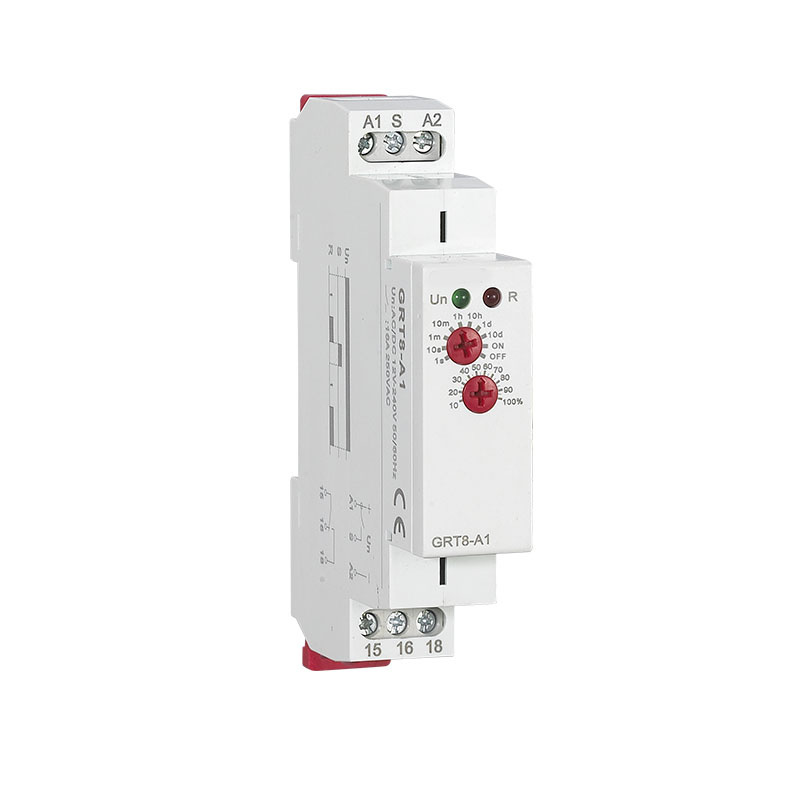

Single Function DIN Rail Time Relay 16A Industrial Control Auto Timer Relays Time Delay with 2 Spdt

Name: Single Function DIN Rail Time Relay 16A Industrial Control Auto Timer Relays Time Delay with 2 Spdt
Brand: all-electronics-online.com
SKU: 839138815
Availability: InStock
Rating: 5 (20 reviews)

Price:	US $ 10/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	GRT8-A2/B2
Volatge:	AC230V , AC/DC12-240V
Current:	16A
Mounting:	DIN Rail

Product Description

Applications
-Suitable for applications where function and time requirements are know.
-Time switch , possible to be used for pump decay time after switching heating off , switching of fans.

Function Features
-Single-function relay with possibility of time setting by a potentiometer.
-Choice of 2 functions: A:Delay ON B:Delay OFF
-Time scale 0.1 s - 10 days divided into 10 ranges..
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

GRT8
Rated control supply voltage: A230:AC230V W240:AC/DC12V-240V
Number of contacts:
1:1×SPDT
2:2×SPDT
Function Of Mode
A: Delay ON
B: Delay OFF

Technical Date
Electrical features

GRT8-A (A1=1SPDT/A2=2SPDT)	Delay on

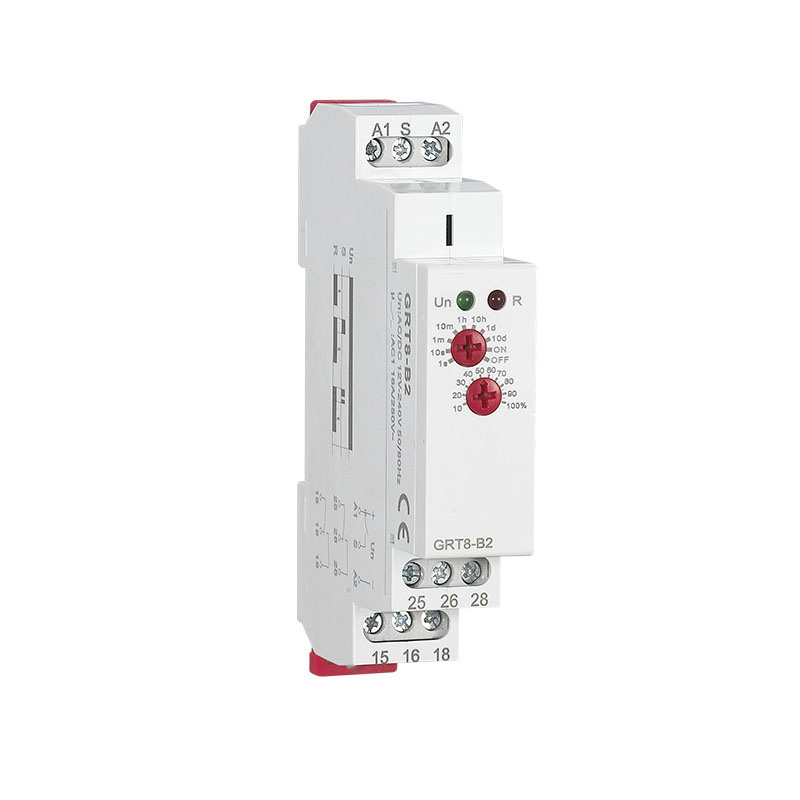

GRT8-B (B1=1SPDT/B2=2SPDT)	Delay off
How to Choose Model NO	GRT8-A1/GRT8-A2/GRT8-B1/GRT8-B2
Voltage Range	AC230V (A230) OR AC/DC12V-240V (W240)
Output	1SPDT or 2 SPDT
Supply Terminals	A1-A2
Time Range	0.1s-10days,ON,OFF
Time Setting	Potentionmeter
Rated Frequency	50/60HZ
Rated Current	16A
Weight/pcs	0.1KG/PCS
Standard	IEC6947-5-1 EN61812-1
Certifications	CE CB CCC TUV
Warranty/guarantee	18months
MOQ	1PCS
