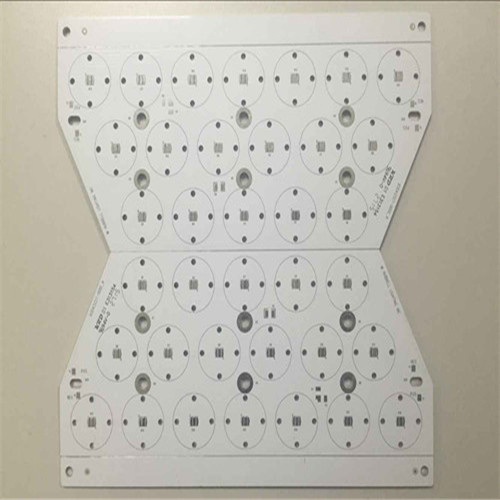

Single-Layer Aluminum PCB Board for Camera Module

Name: Single-Layer Aluminum PCB Board for Camera Module
Brand: all-electronics-online.com
SKU: 784737235
Availability: InStock
Rating: 4.6 (96 reviews)

Price:	US $ 0.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WBPN1527AO
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Solder Mask Colour:	White
Silkscreen Colour:	Black
Board Thickness:	1.6mm
Copper Thickness:	1oz
Surface Treatment:	HASL Lead Free
Type:	Rigid Circuit Board
Flame Retardant Properties:	V0
Material:	Aluminum
Brand:	Xzg
Dielectric:	Aluminum
Application:	Camera Module

Product Description

Specifiction:

layer:Single layer
board thickness:.1.6mm
Copper thickness:1oz
Thermal conductivity: 1.0w/mk
min Hole size:1mm
surface treatment: HASL lead free

Our main process capability:

Items	Standard	Advanced
Layer Count	1-20	1-24
Board Thickness	0.2-5.0mm	0.2-7.0mm
Max. Panel Size	520X660mm	680X1200mm
Min. Mechnical Drill	0.2mm	0.15mm
Min. Line width&space	0.1/0.1mm	0.076/0.076mm
Max. Copper Thickness	6 oz	8oz
Max. Aspect Ratio	8:1	10:1
Solder Mask Color	Green,Black,White,Blue,Red,Matt Green, Matt Black
Silkscreen Color	White,Black,Yellow,Grey,Orange
Base Material	CEM1,CEM3,FR4,IMS,aluminum
Surface Treatment	HASL(Lead Free),OSP,ENIG, ENEPIG,Immersion Silver,Immersion Tin, Hard Gold Plating,Tin Plating, Silver Plating

Our Lead time:

layers	1~2layers	4layers	6layers	8layers
sample	3~4 days	5 days	6 days	7 days
Volume production	7~9 days	11 days	14 days	15 days

About us:
Iso 9001,14001,TS16949,UL Certified.
With 900+staff,registered capital USD1.3million,full-process workshop,we make 1~20layers board in guaranteed quality.
High frequency board--rogers,ITEQ,Buried/blind via board,aluminum PCB,board thickness 0.2~7.0mm,copper thickness 1/3~8oz are available here.

Our website:http://www.xzgpcb.com

Xingzhiguang Technology, established in 2002, with factory area of 25, 000 sqm, total staff about 1200 and overall investment nearly USD 50 million, is a professional PCB manufacturer with factory located in Huizhou.

Through more than 10-year experience in PCB production, Xingzhiguang Technology is supporting an annual capacity of more than 900, 000 sqm, among which 30% is 1~2 layer and 70% is multi-layer, with the maximum layer count up to 20 layers; We can process many different kinds of laminates, such as FR4, high-Tg FR4, metal-based laminate (includes aluminum-based), Isola, Rogers and so on. In addition, we have started producing PCBA (PCB assembly) and FPCB (flexible PCB) as well since the end of 2014. We have passed a lot of authorized certification, including but not limited to UL(E246887), ISO9001: 2008, ISO/TS16949 and ISO 14001: 2004, and this ensures us to be capable to provide high-quality products to meet different customers' requirements.

Our products are widely used in fields of telecommunication, power supply, security surveillance, automotive, industry control, LED lighting & etc

Finally, as our commitment to the environment protection, we have also invested about USD 600, 000 in water-recycling system construction. This is the best witness to certify that xingzhiguang technology is a responsible enterprise.
