Single Mode G652D Flat Type 12 Cores MPO Cable
| Price: |
US $ 0.66-0.76/Meter |
| Min Order: |
1/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
12 Cores MPO Fiber Optic Ribbon Indoor Cable |
| Business Type: |
Manufacturer |
| Cable Color: |
Yellow Color or Customized |
| Length: |
1km |
| Packing: |
1km in a Reel, One Reel in a Carton |
| Customized: |
Available |
| Fiber Type: |
G652D, G657A1, G657A2 |
| Material: |
PVC/LSZH/Ofnp/Ofnr |
| Cores: |
12 Cores |
| Place Of Original: |
Shenzhen, China |
| Used For: |
FTTX/FTTH |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
CCC |
| Connection Structure: |
MPO/MTP |
| Core: |
12 Cores |
| Sheath Material: |
PVC/LSZH/Ofnp/Ofnr |
Product Description

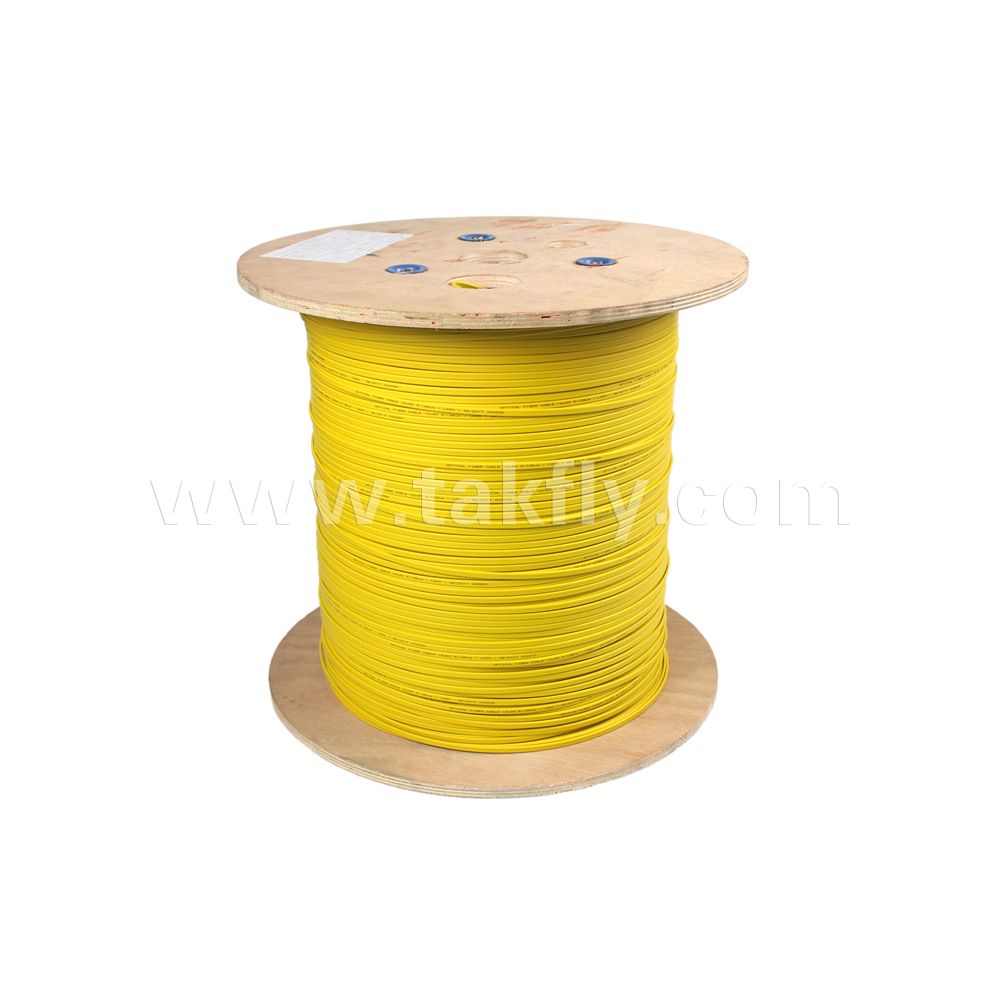

12 Cores MPO Single mode G652D Flat type Fiber Optic Ribbon Indoor Cable
Cable Parameters | No | Items | | Unit | Specification |
| | | | | G.652D |
| 1 | Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| | | 1550nm | um | 10.4±0.5 |
| 2 | Cladding Diamete | | um | 124.8±0.7 |
| 3 | Cladding Non-Circularity | | % | ≤0.7 |
| 4 | Core-Cladding Concentricity Error | | um | ≤0.5 |
| 5 | Coating Diameter | | um | 245±5 |
| 6 | Coating Non-Circularity | | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | | um | ≤12.0 |
| 8 | Cable Cutoff Wavelength | | nm | λ cc ≤1260 |
| 9 | Attenuation(max.) | 1310nm | dB/km | ≤0.4 |
| | | 1550nm | dB/km | ≤0.3 |
Features| Fiber Count | 12 Cores | |
| Optical Fiber Ribbon | Width | ≤3.4mm |
| | Thickness | ≤0.4mm |
| Strength Member | Kevlar | |
| Jacket | (2.2±0.3)mm×(5.0±0.4)mm | |
| Material | LSZH | |
| Color | Yellow | |
Mechanica land Environmental Characteristics| Items | Unite | Specifications |
| Tension(Long Term) | N | 80 |
| | | |
| Tension(Short Term) | N | 200 |
| | | |
| Crush(Long Term) | N/10cm | 200 |
| | | |
| Crush(Short Term) | N/10cm | 500 |
| | | |
| Min. Bend Radius(Dynamic) | mm | 20H |
| | | |
| Min. Bend Radius(Static) | mm | 10H |
| | | |
| Installation Temperature | ºC | -20~+85 |
| | | |
| Operating Temperature | ºC | -20~+85 |
| | | |
Why choose Takfly ?
Service
1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable
Quality Control
All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantage
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent survice
Delivery
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB
Packaging

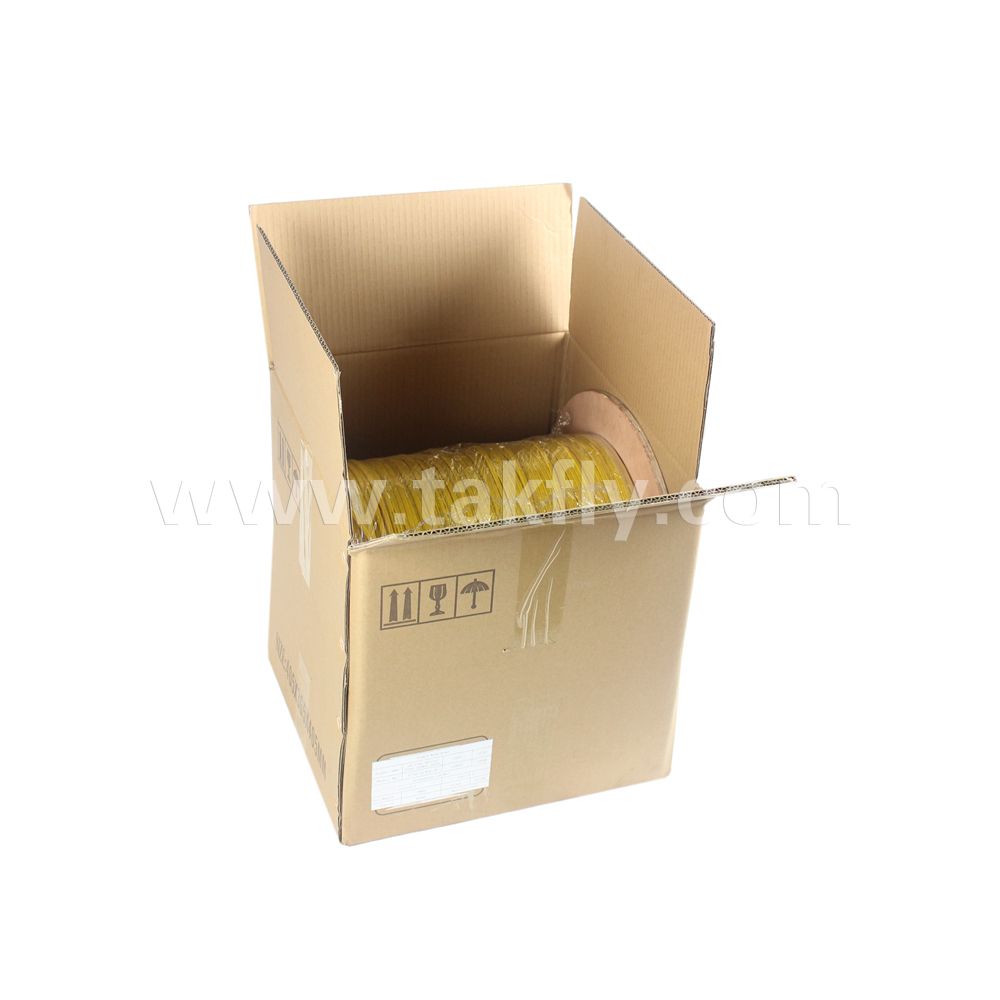

1. All products will be packed in double corrugated carton , so the product can get effective protection to avoid damage.2. Packaging according to customer requirement Shipping
1. We shipping via DHL / FedEx / TNT/etc for samll orders. Yow can get your packages in about 3-5 days all over the world.2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.3. You can choose your own shipping agent, we will provide good cooperation for it. After-Sales Service
1. TAKFLY can provide detail documents and remote help for device installation and configuration.
2. Warranty: 2 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3. TAKFLY promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it's accessories are complete.
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
