| Prod Model: |
MPO/MTP Fiber Optic PatchCord |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Business Type: |
Manufacturer |
| Cable Diameter: |
3.0mm |
| Storage Temperature: |
-45~85 |
| Operating Temperature: |
-40~75 |
| Vibration: |
≤0.2 |
| Exchangeability: |
≤0.2 |
| Operating Wavelength: |
1310, 1510 |
| Polishing: |
PC/Upc/APC |
| Cable Material: |
PVC, Om1, Om2 or Om3 Optional |
| Core Type: |
Multi/Single Mode |
| Application: |
Communication |
| Type: |
Multi-mode Fiber |
| Certification: |
VDE |
| Connection Structure: |
MPO |
| Sheath Material: |
LSZH |
Product Description

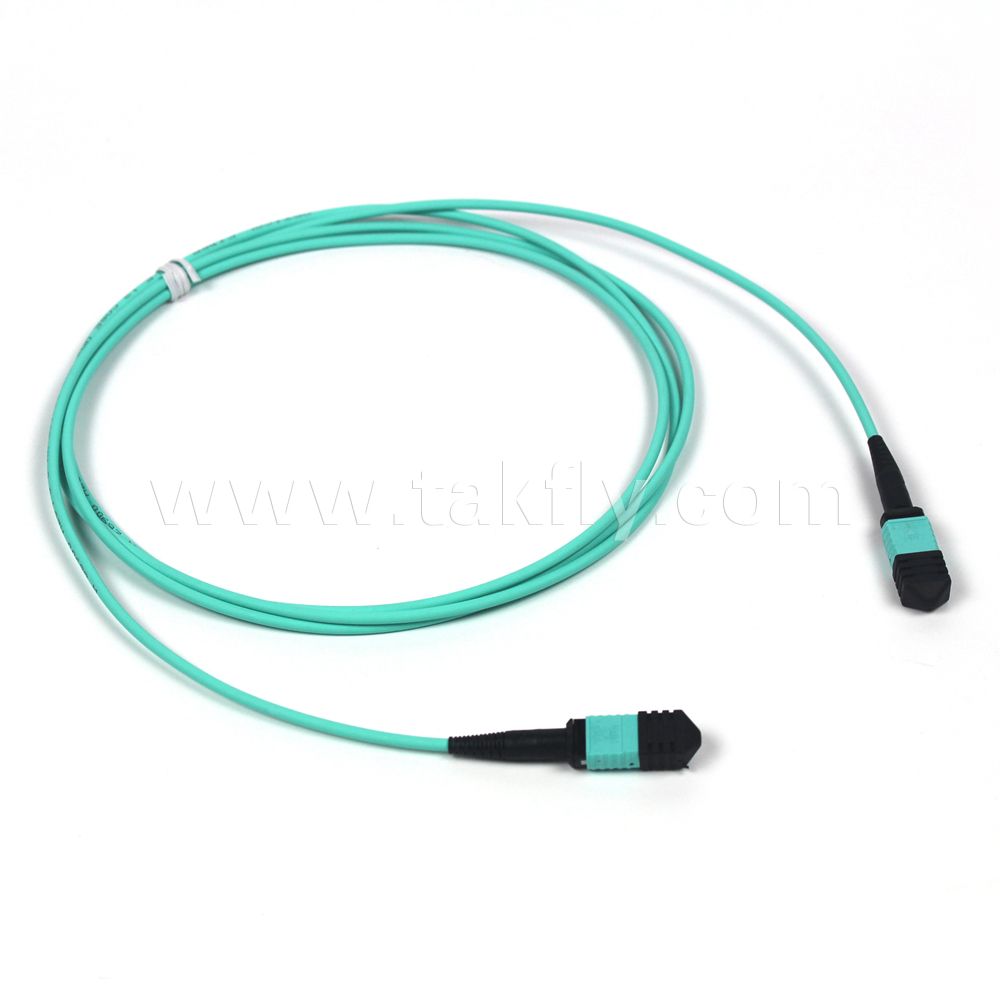

Single mode Multimode 12/24 Cores MPO/MTP Fiber Optic PatchCord
MTP/MPO patch cords are used to make the interconnections between the MTP/MPO cassettes or connections to active equipment with MPO/MTP interface. In cases where an MTP patch cord is connected (through an MTP coupler) to another MTP patch cord, one of the two MTP connectors must be male (equipped with pins).
Features1. CABLE Quality Assurance System:
* Test Specifications for Bellcore GR-409-core
* Smoke density Purpose IEC-61034
* Halogen Acid Content IEC-754-1
* Flame Resistance IEC 60332-1, IEC 60332-3
* Conform to WEEE RoHS standard.
2. Fiber Type: OS2/OM3/OM4
Fiber Count: 4/8/12/24 core
Cable Type: Bare fiber/Flat/Round
Specification | Item | Parameter |
| MPO/MTP Connector | Standard SM | Low Loss(Elite) SM | Standard MM | Low Loss MM |
| Insertion Loss | Typical | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Maximum | 0.75dB | 0.35dB | 0.60dB | 0.35dB |
| Return Loss | ≥60 for APC (8 Angle Polish) | ≥20 for PC |
| ≥50 for PC | -- |
| Male/Female | Male: With Pins, Female: Without Pins |
| Tensile Strength | ≤0.3 (Max 66N) |
| Vibration | ≤0.3 (10 ~ 55Hz) |
| Thermal Cycle | ≤0.3 (-40 ~ 75ºC, 21Cycles) |
ApplicationsTelecommunication Networks
Computer networks
CATV networks
FTTx Termination
Gigabit Ethernet
Why choose Takfly ?Service1.Customer's logo: Acceptable2.General inspection on fixing before packing3.Third party inspection: Acceptable Quality ControlAll products must go through five checks before manufacturing process 1.Material incoming inspection before production2.Full check after every individual process finished3.Full check after production half-done4.Full check before packing5.Spots check after production packed before shipping Advantage1.15 years experience in manufacturing fiber optic products..2.Availability of R & D with more than 10 engineers.3.Available of design and making mold with special molding house.4.High quality, attractive price and fast delivery(2-7days)5.OEM, ODM customer designs are also welcomed6.More than 200 workers7.Excellent survice Delivery:1.Packing: Plastic bag& carton, Neutral packing or as your required.2.Sample time: 1-3 days after confirm3.Order lead time: 2-7working days depend on quantity and products.4.Shipping port: Shenzhen China or HK5.Shipping term: EXW or FOB Packaging
1. All products will be packed in double corrugated carton , so the product can get effective protection to avoid damage.2. Packaging according to customer requirement Shipping
1. We shipping via DHL / FedEx / TNT/etc for samll orders. Yow can get your packages in about 3-5 days all over the world.2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.3. You can choose your own shipping agent, we will provide good cooperation for it. After-Sales Service
1. TAKFLY can provide detail documents and remote help for device installation and configuration.2. Warranty: 2 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)3. TAKFLY promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it's accessories are complete.
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

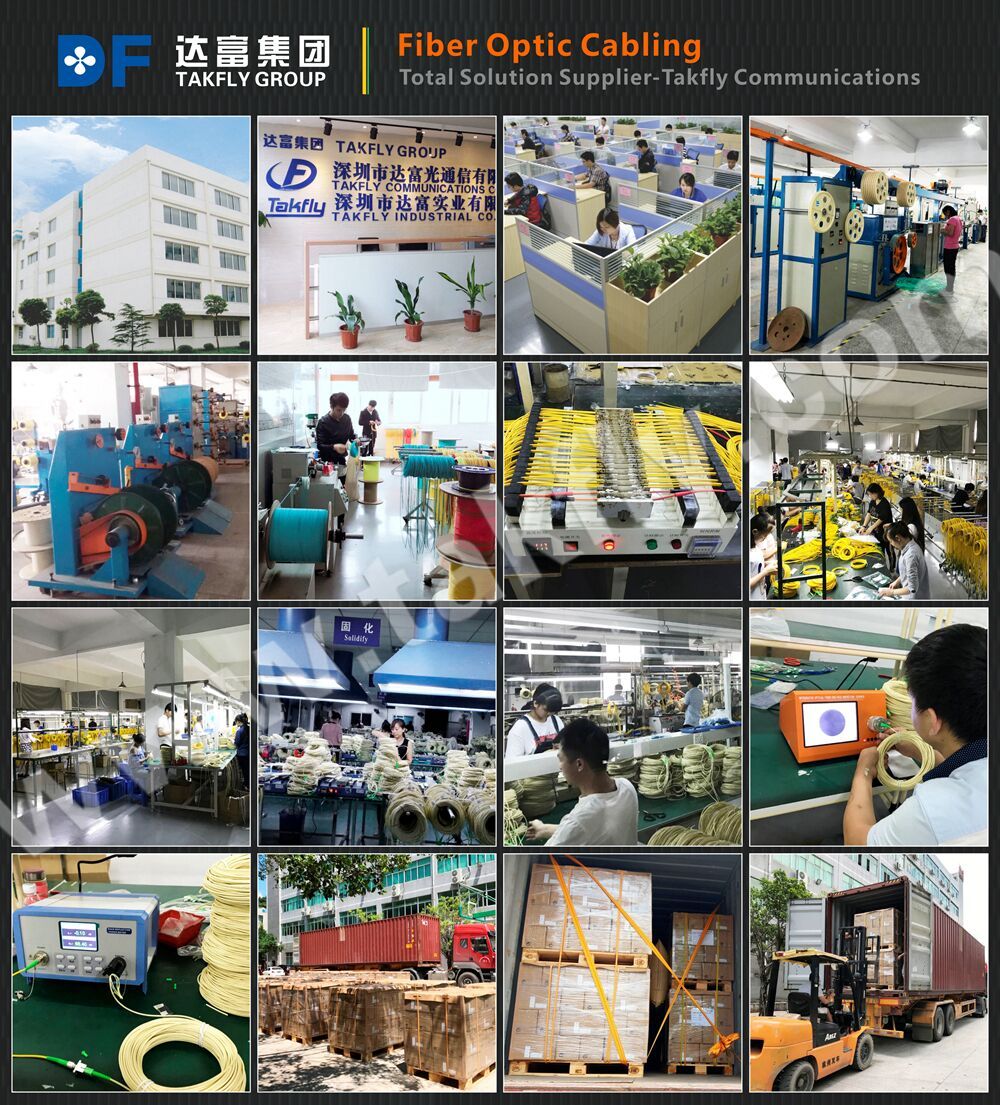

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
