Single Mode Sc/APC FTTH Fast Connector Mechanical Connector
| Price: |
US $ 0.2-1.2/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
SC/APC fast connector |
| Item Name: |
Sc/APC Fast Connector |
| Keywords: |
Fast Connector/Sc APC Fast Connector |
| Length: |
50/55/60cm |
| Usage: |
FTTH,Network,Telecommunication |
| Insert Loss: |
0.25dB |
| MOQ: |
100 PCS |
| OEM: |
Available |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
APC |
Product Description

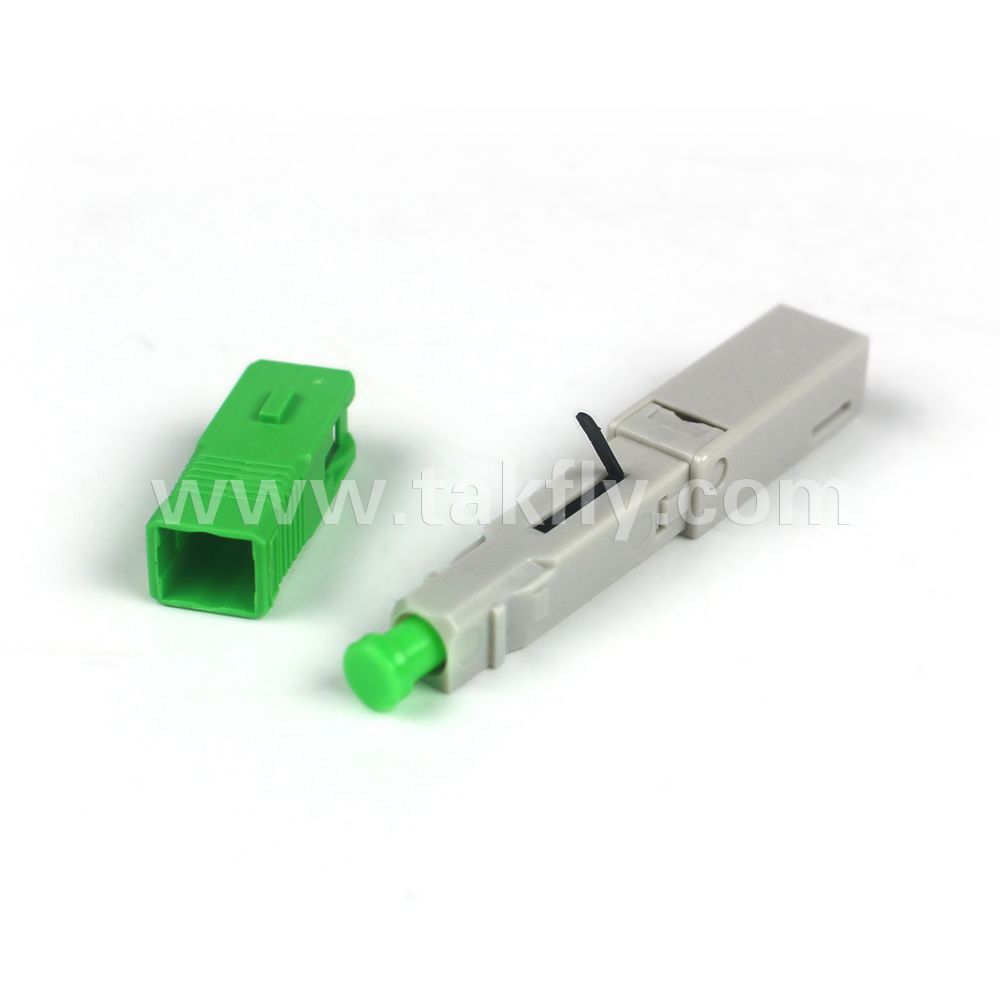

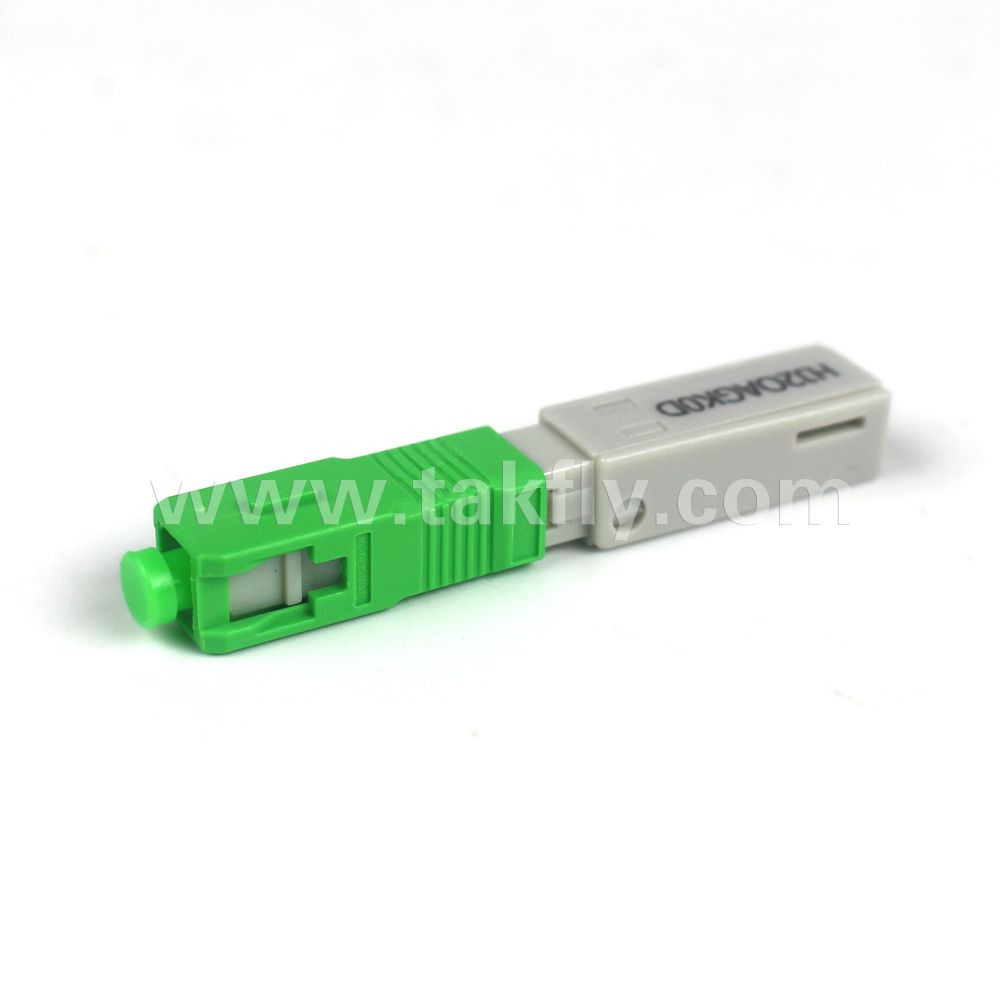

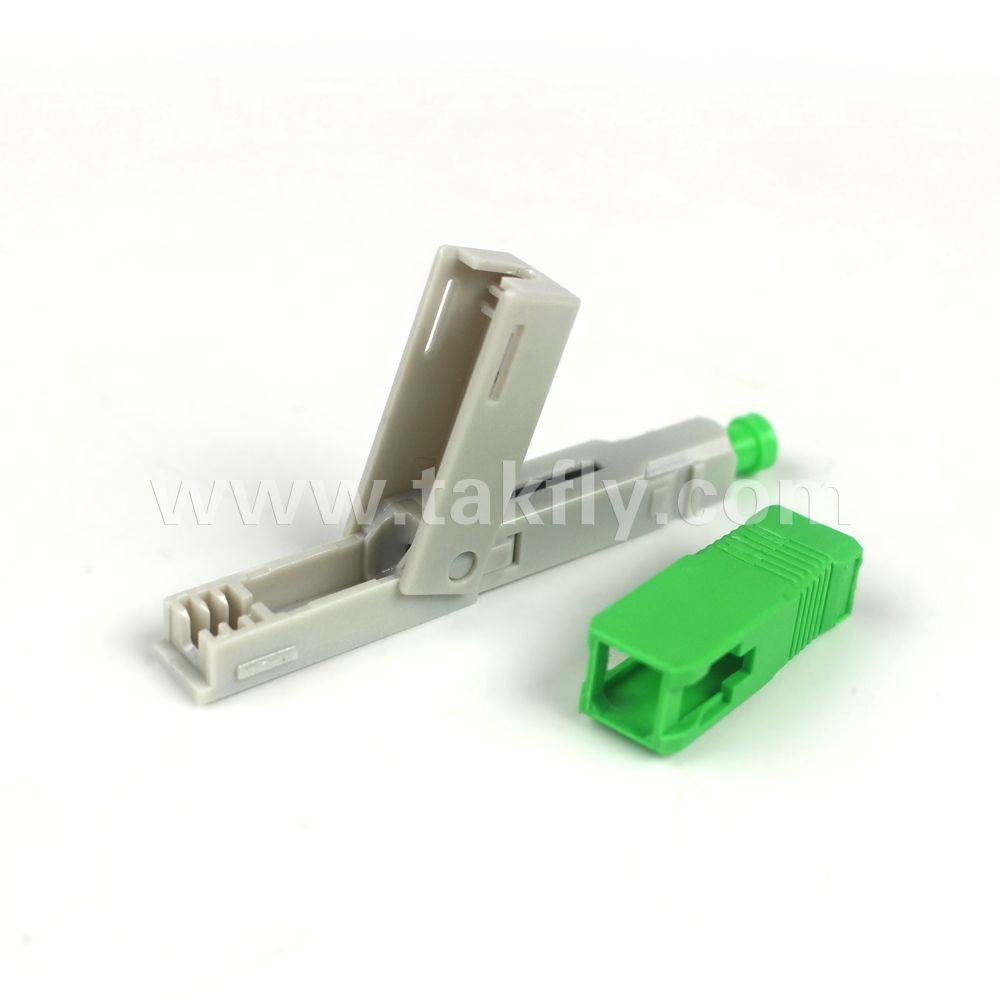

Single mode Sc/APC FTTh fast connector mechnical application
Brief descriptionFiber optic fast connector designed for FTTH. It is a new generation of fiber connector used in assembly. It can provide open flow and precast type, which optical and mechanical specification meets the standard optical fiber connector. It is designed for high quality and high eddiciency for installation, the structure of crimping position is a unique design.
Advantages1.Low Insertion Loss
2.High Stability and reliability
3.Durable life
4.Easy installation
5.OEM service for accessoriesSpecificationItems | SC/APC SC/UPC |
| Applicable Cable | - X 2 Rubber-insulated wire
| Φ3.0 Fiber |
| Fiber Diameter | 125μm | 125μm |
| Coating Diameter | 250μm | 250μm |
| Fiber Mode | SM OR MM | SM OR MM |
| Installation Time | ≤40S | ≤40S |
| Construction Site Installation Rate | ≥99% | ≥99% |
| Insertion Loss | ≤0.5dB(typical value≤ 0.8dB)(1310nm or 1550nm) | ≤0.5dB(typical value≤ 0.8dB)(1310nm or 1550nm) |
| Return Loss | 45dB(average 50dB) | 45dB(average 50dB) |
| Tensile Strength | >30 | >20 |
| Working Temperature |
-40°C~+70 °C
| -40°C~+70 °C
|
Reusability
| ≥50 | ≥50 |
Normal Life
| 30 years | 30 years |

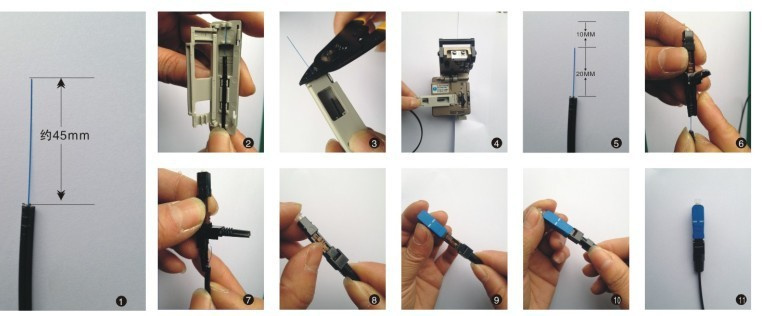

How to install a fast connector??
Package & ShipmentAbout package: Carton case and common exporting packages
About Shipping: A. Shipping time is depends on quantity and factory schedule
B. About Shipping ways:By air,sea and courier(DHL,Fedex,Ups,TnT or EMS)
About Payment:Usually paypal for sample,T/T,Western Union is availableAbout TakflyTakfly Communications Co.,Ltd is the high-tech manufacturering enterprise,which is established in 2000,and specialized in optical fiber transmission equipments,security surveilance monitoring equipment combined with researching developing,production,sales and services.Takfly mainly produce digital video transceiver,audio transceiver,internet transceiver,alarm transceiver,ethernet optical media converter,10M media converter,100M media converteres,1000M media converters,10/100M media converter,10/100/1000M media converter,business class of media converter,industrial telecom media converters and some other surveillance data communication products.Which are widely apply to metropolitan network access network,fiber to home network,electric power,education,army,safety city and some other important system.
Would you like some sc/apc fast connector sample to test??Please leave me an inquiry or contact me directly.
