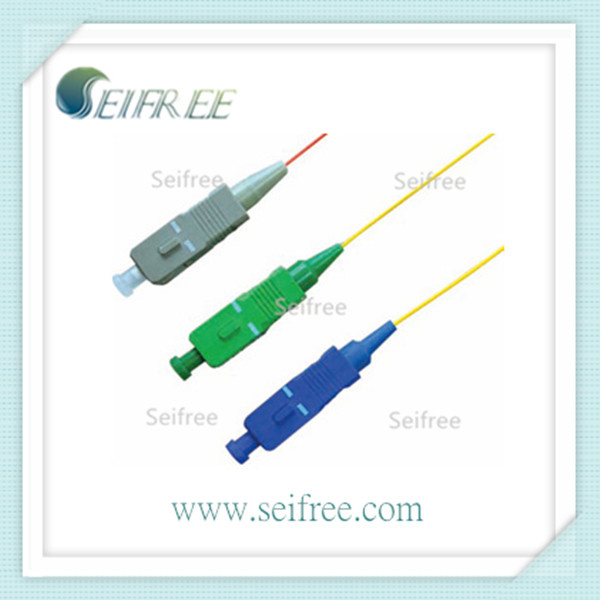

Single Mode Sc/Upc Optical Connector for CATV FTTH

Name: Single Mode Sc/Upc Optical Connector for CATV FTTH
Brand: all-electronics-online.com
SKU: 759646305
Availability: InStock
Rating: 4.3 (125 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC/UPC Optical connector
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connector:	Upc/APC
Ferrule Type:	Mpc
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)

Product Description

Fiber Optic Connector

Description
Optical Fiber Connectors are used to connect two fiber or cable of the formation of a continuous light path which can be repeated use of the passive components, has been widely used in optical fiber transmission lines, optical fiber distribution frame and fiber optic test instruments, meters, is currently using the largest number of optical passive components.

Category
LC-UPC    LC-APC
FC-UPC    FC-APC
SC-UPC    SC-APC

Stage
Single Mode

Core
Simplex

Features
·         Compliant with Telcordia,GR-326-CORE,TIA/EIA and IEC
·         Superior Quality Standard PC/UPC/APC Polishing
·         Customer Defined Specifications
·         RoHS Compliance
·         Environmental Stable
·         Low Insertion Loss&back Reflection

Applications
·         CATV Networks
·         Telecommunication Networks
·         Local Area Networks
·         FTTH and FTTx
·         Active Device Termination
·         Testing Instruments

Specifications:

	Single Mode	Multimode
Insertion Loss	<0.10dB	<0.15dB
Return Loss	≥55dB (APC ≥65dB)	≥35dB
Duranility	<0.1dB typical change, 500 matings
Operating Temperature	-40 to +75 °C	-40 to +75 °C
Ferrule Hole Sizes	125.0+1/-0um,Conentricity:≤1um	125um,Conectricity:≤3um
	125.3+1/-0um,Conentricity:≤1um	127um,Conectricity:≤3um
	125.5+1/-0um,Conentricity:≤1um	128um,Conectricity:≤3um
	126.0+1/-0um,Conentricity:≤1um

Wuhan Seifree Technology Co., Ltd is located at the Optical Valley, East Lake National High-tech Development Zone of Wuhan. It specializes in R&D, manufacturing, sales of Optical Passive Components. With the great technologies in optical research and production, Seifree gathers a number of optical talents on fiber communication, which possess the rich experience of R&D and a strong capability of technology innovation.

The product includes thin-film filter (DWDM, CWDM, Triple-play WDM), Fused Bi-Conical Taper (Coupler, WDM) and Waveguide Splitter (PLC Splitter), Micro-optics (Circulator, Isolator) Fiber optical Interconnect (Optical Jumper, Adaptor) and other components and modules of Active (CWDM SFP) and Passive.

We create a good working atmosphere, solidarity and cooperation, and build the corporate culture --Service, Excellence, Innovation, Fidelity, Reciprocity, Economical, and Development. All products are designed, manufactured and delivered to meet the requirements of Telcordia and ISO9001.

We welcome you to consider Seifree to provide the high-quality product and considerate service for meet your demands.
