Single or Double Load Cell Structured Platform Scales

Name: Single or Double Load Cell Structured Platform Scales
Brand: all-electronics-online.com
SKU: 684345331
Availability: InStock
Rating: 4.9 (55 reviews)

Price:	US $ 13/Piece
Min Order:	20/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	QL-52D
Size:	130mm110mm11mm
Capacity:	0.3kg to 2kg
Type:	Aluminum Parallel Beam
Cable Length:	0.42 M
Pattern:	Mini Load Cell

Product Description

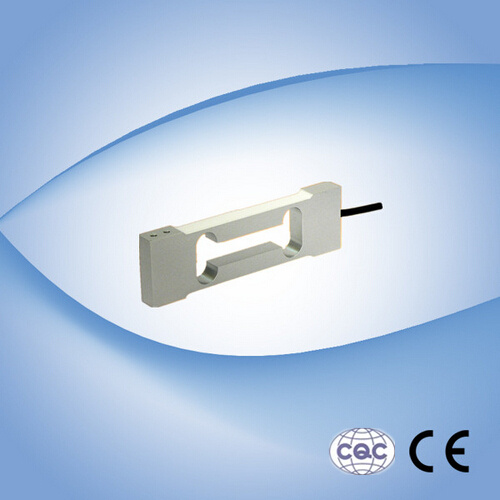

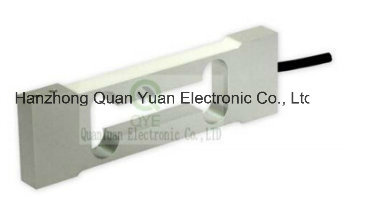

IP 65 Aluminium Alloy Single Point Load Cell Suitable for Single or Double Load Cell Structured Platform Scales

Product Discription:

QL-52D miniature sensor are available in the capacities from 0.3kg to 6kg.
Aluminum construction, silicon adhesive sealed, surface anodized and anti-corrosion.
Integral structure and easy installation.
Suitable for electronic balance, electronic platform scale and other electronic weighing devices.

Features:

Capacity :0.3kg of 6kg
Defend grade: IP65
High accuracy.
Aluminum parallel beam
Integral installation, Low profile and nice exterior.

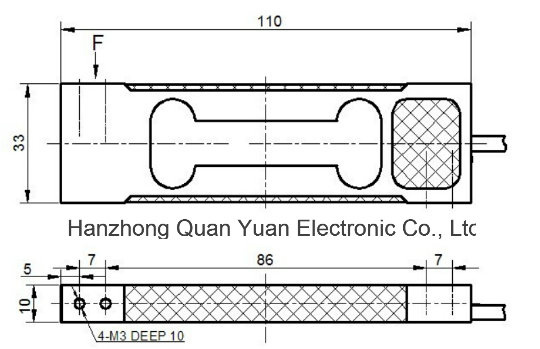

Demensions:

Specifications:
capacity	kg	0.3,0.5,0.6,1,1.5,2,3,5,6
safe overload	%FS	120
ultimate overload	%FS	150
rated output	mV/V	1.0 ± 0.1
excitation voltage	Vdc	9~ 12

combined error	%FS	± 0.03
zero unbalance	%FS	± 2
non-linearity	%FS	± 0.02
hysteresis	%FS	± 0.02
repeatability	%FS	± 0.01
creep	%FS/30min	± 0.02
input resistance	Ω	405 ± 6
output resistance	Ω	350 ± 5
insulation resistance	M Ω	≥ 5000 @ 100 Vdc
operating temperature range	ºC	-20 ~ +60
compensated temperature range	ºC	-10 ~ +40
temperature coefficient of SPAN	%FS/10ºC	± 0.02
temperature coefficient of ZERO	%FS/10ºC	± 0.03

Electrical connection:

Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene. Cable is not connected with elastomer.
Cable length:0. 5 m
Cable diameter :4 ±0.2 mm
The cable length could be chose by customer's application.

Please contact us now.
