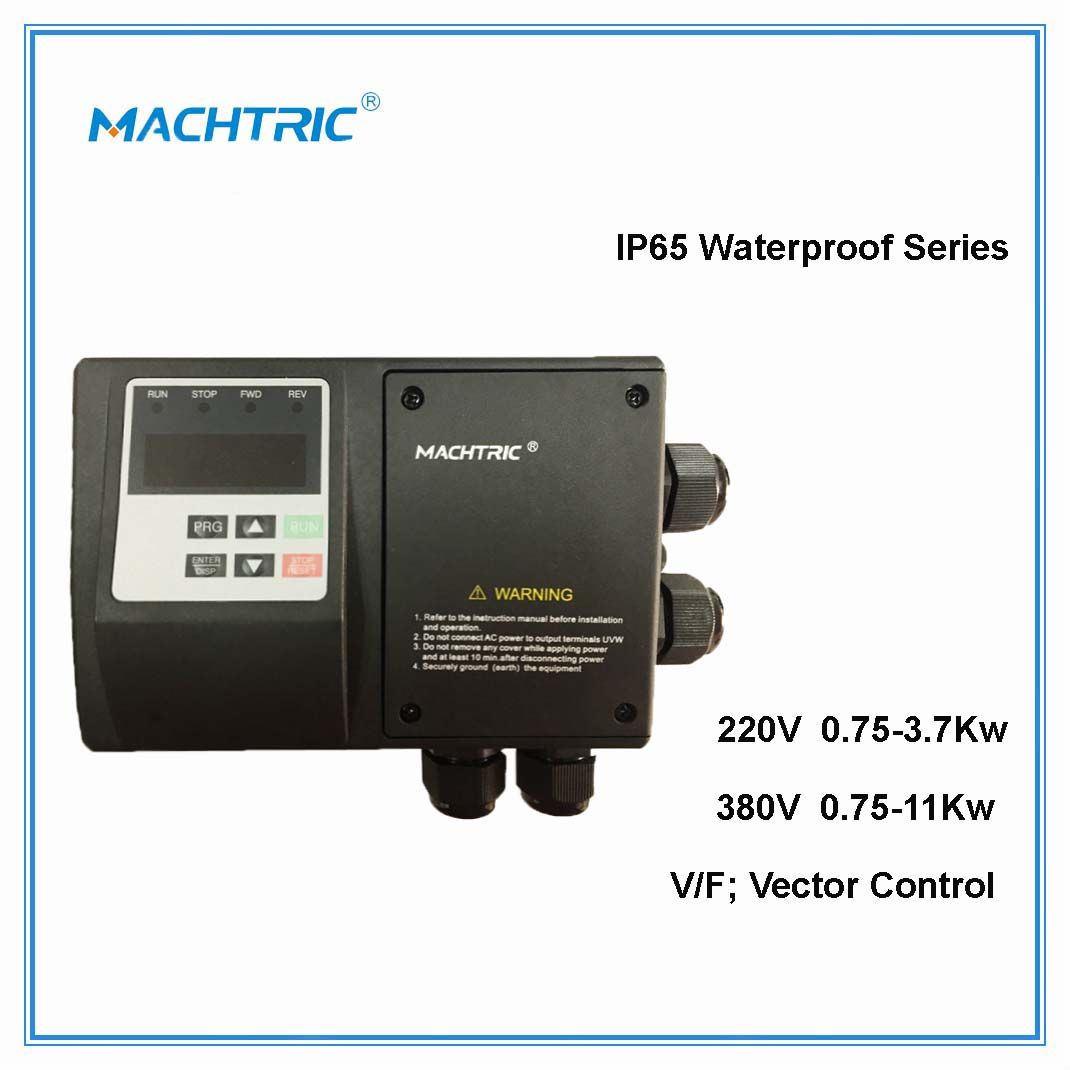

Single or Three Phase 220V 380V Variable Frequency Drive
| Price: |
US $ 95/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
S2100S |
| Product Name: |
0.75-11kw Frequency Inverter 50 60Hz 380V |
| Protection: |
IP65 |
| Single Phase: |
220V 0.75-3.7kw |
| Three Phase: |
380V 0.75-11kw |
| Communication: |
Modbus/ RS485 |
| Output Frequency Range: |
0.1-400Hz |
| Certificate: |
Ce, ISO9001 |
| Warranty: |
18month |
| Pid Control: |
Built-in |
| Cooling Mode: |
Forced Air Cooling |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Function: |
IP65 Water Pump |
| Brand: |
Machtric |
Product Description
Professional Supplier 0.75-11Kw Frequency Inverter 50Hz 380V Ac Motor Drive
| Model | S2100S |
| Input | Rated voltage,Frequency | 3 AC 380V / 220V; 50-60 Hz |
| Voltage Range | 380V: 330V~440V;220V: 170-240V |
| Output | Voltage Range | 380 V: 0~380 V; 220V: 0-220V |
| Frequency Range | 0.10~400.0 Hz |
| Control method | V/F control,Space verctor control |
| Indication | Operating status/Alarm definiton/interactive guidance;eg,frequency setting,the output frequecy/current,DC bus voltage,the temperature and so on. |
| Control Specification | Output Frequency Range | 0.10~400.00 Hz. |
| Frequency Setting Resolution | Digital input: 0.01 Hz.
Analog input:0,1% of maximum output frequency |
| Output Frequency Accuracy | 0.01 Hz. |
| V/F Control | Setting V/F curve to satisfy various load requirements |
| Torque Control | Auto increase:auto riase torque by loading condition;Manual increase:enable to set 0.0~20% of raising torque |
| Multifuncional Input Terminal | 8 multi-function input terminals,realizing fuctions including fifteen section speed control,program running, four-section acceleration/deceleration speed switch,UP/DOWN function and emergency stop and other functions |
| Multifuntional Output Terminal | 3 multi-function output terminals for displaying of running,zerospeed,counter,external abnormity,program operation and other infornation and warnings |
Model dimension:| Model | Suitable Motor | Output Current | Assembly Dimension(mm) |
| W | H | D | A | B | b |
| S2100-2S0.75GS | 0.75KW | 5 | 188 | 122 | 134 | 105 | 178 | M4 |
| S2100-2S1.5GS | 1.5KW | 7 |
| S2100-2S2.2GS | 2.2KW | 11 |
| S2100-4T0.75GS | 0.75KW | 2.7 | 188 | 122 | 134 | 105 | 178 | M4 |
| S2100-4T1.5GS | 1.5KW | 4 |
| S2100-4T2.2GS | 2.2KW | 5 |
| S2100-4T3.7GS | 3.7KW | 8.6 | 235 | 154 | 179 | 125 | 221 | M4 |
| S2100-4T5.5GS | 5.5KW | 12.5 |
| S2100-4T7.5GS | 7.5KW | 17.5 |
| S2100-4T11GS | 11KW | 24 |

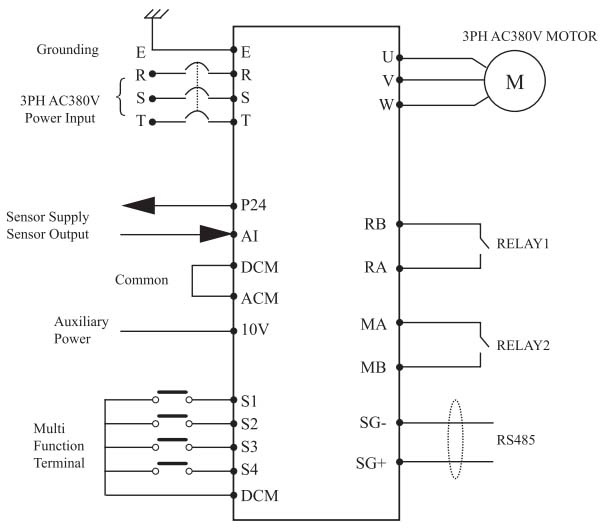

Wiring diagram:
ATTN: Maggie Huang
Phone: +86-18650771915
Quanzhou Machtric Automation Equipment Co., Ltd., together with three leading enterprises and several affiliated organizations in China and Taiwan has been established to supply "Total Project Solutions" in Industrial Automation.Sanch is geared to integrate the development, manufacture and systems engineering for local and international clients alike.
Our professional teams of engineering, product development, manufacturing and integration staff, devote themselves to the development and application of motor, electric, electronic, microelectronic, information and control technology.
We continue to maintain close co-operation with scientific research institutions both at home and abroad, in order to provide "intelligent" products that not only offer the best solutions, but also have a "humanized" approach to functionality.
At present, our manufacturing capacity is over 100 thousand devices per annum.
This includes products such as:
A/C Frequency Inverters (INVERTER)
Thyristor power controller
Circular knitting machine
Intelligent Control Instruments
Peripheral equipment for Industrial Process Control (IPC)
Microcomputer Controllers for various applications and many others.
In order to service the Chinese market, we have already established dozens of marketing, distribution agents and service organizations, to cover the Northern, Eastern, Central and Southern areas.A Pathway Management System and CRM Customer Relationship Centre with high-efficiency logistic and linkage service has also been established.
SANCH have already applied their range of products and services to the following industries;Textile, dye, ceramic, transportation, building, metallurgy, chemical, light, military ---etc.
SANCH philosophy is to continually improve the electric management platform to account for all facets of applications, thus maximising the competitiveness of technology, quality, service and efficiently in accordance with the principle of satisfying our customers and creating excellent products.
SANCH actively promote a philosophy of, maximising production outputs and yet minimizing energy consumption, using modern technological developments.
Our goal is to achieve "Automation---Energy Saving---Green World", and we will try our best to improve the environment and society as a whole.
