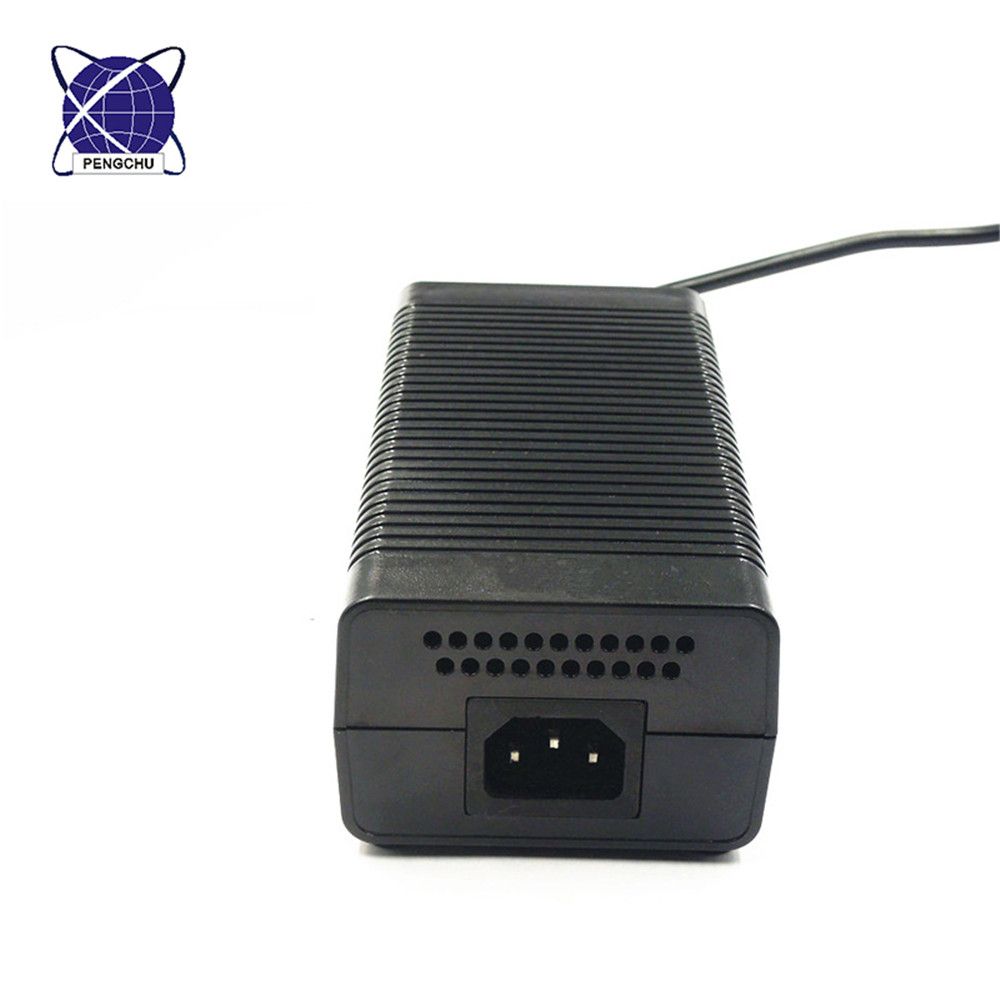

Single Output 24V Power Supply 6.5A

Name: Single Output 24V Power Supply 6.5A
Brand: all-electronics-online.com
SKU: 839130625
Availability: InStock
Rating: 4.8 (123 reviews)

Price:	US $ 15.5-18/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PC-240065
Output Current:	6.5A
Efficiency:	85%
Material:	100% PC
Aging Test:	100% Full Load Test

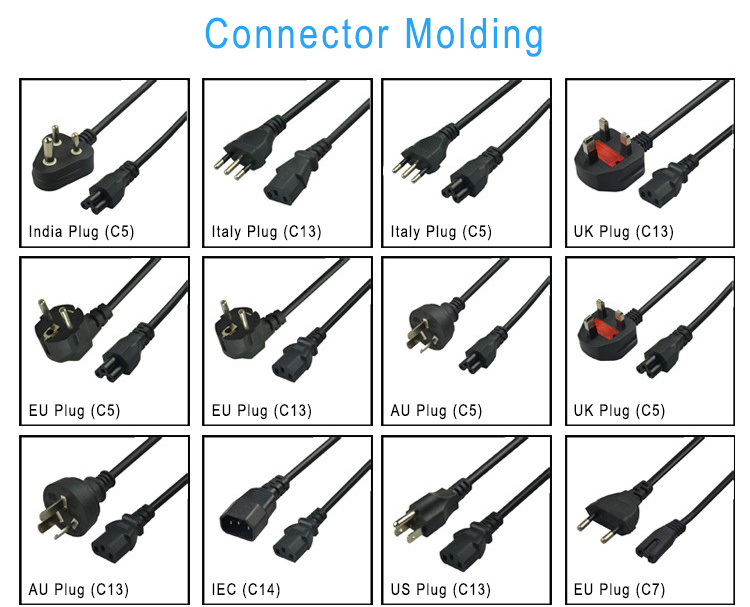

AC Plug:	EU,UK,US,AU Plug or Your Demand
DC Power Cord:	0.9m,1.2m,1.5m or Your Demand
DC Size:	5.52.1mm,5.52.5mm or Your Demand
Delivery Time:	7-9 Working Days
Color:	Black
AC Inlet:	IEC320-C14, IEC320-C6
Output Type:	Single
Certification:	FCC
Output Power:	156W
Input Voltage:	100-240V
Voltage Regulating Mode:	24V

Product Description

single output 24v power supply 6.5a

Features:

(1)High efficiency, High reliability, Long life time

(2)Efficiency: 85% min

(3)Approved CE RHOS FCC certification

(4)Warranty: 1 year

(5)Protection: Over current protection, Over voltage protection, Short circuit protection; Over temperature protection.

(6) Real power, high reliablity, long life
IEC320-C14, IEC320-C6 AC inlet optional
OEM/ODM welcome (special voltage & dc connector & logo & package).

(7)Suit for: Laptop adapter, LED, LCD, CCTV camera, Motor, Computer, etc.

Part. No.	PC-240065
AC Input	100~240V 50/60Hz Max: 90~264V 47/63Hz
DC Voltage	24V
DC Current	6.5A
Rate Power	156W
Voltage Tolerance	±5%
Line Regulation	±1%
Load Regulation	±5%
Efficiency	>85%
Short Circuit Protection	Shall be protected when any output operation in circuit short condition, and sall be auto restart when the fault condition is removed.
Over Current Protection	130%~150%
Over Voltage Protection	115%~135%
Operating Temperature	-10ºC~50ºC (±10ºC)
Relative Humidity	20%~90% RH
Storage Temperature	-40ºC~80ºC (±10ºC)
DC Connector	5.52.1mm, 5.52.5mm, 4pin bare wire or your demand
DC cable	0.9m, 1.2m, 1.5m or your demand.

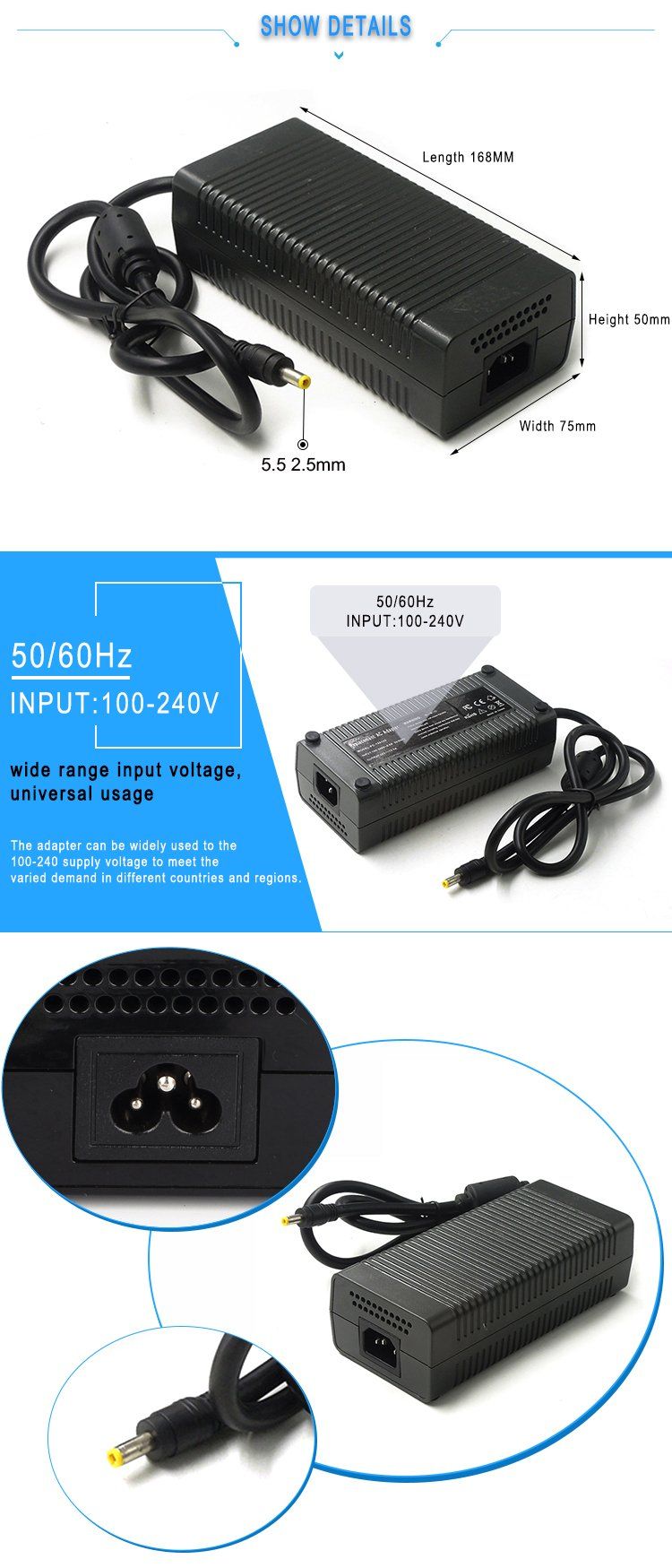

Product show:

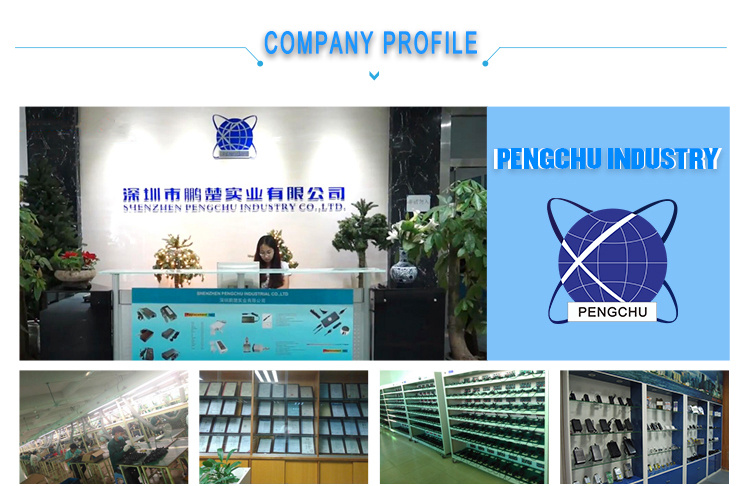

Shenzhen Pengchu Industry Co., Ltd. Was approved to establish by Shenzhen Administration for Industry and Commerce in 2004 and has passed ISO9001: 2000 international quality system certification.

We specialize in developing, producing and exporting switching power supply and power adapters for laptops, as well as other related accessories. As a measure to enhance the quality of our products, we have introduced the most up-to-date testing equipment from overseas markets to ensure that each product undergoes strict quality control from design to packing.

All the products are 100% aging test. With CE, FCC, RoHS, CB, ETL, SAA, C-TICK, PSE ceritifcates. OEM and ODM orders are always welcome.

"Customer foremost" is our unchangeable service tenet. Several years' hard work brings us trust and confidence from our customers. Our sales network spreads to every corner of the world. We would like to work hand in hand with our business partners to create a more wonderful future.

Shenzhen Pengchu Industry Co., Ltd is always here to help you!
