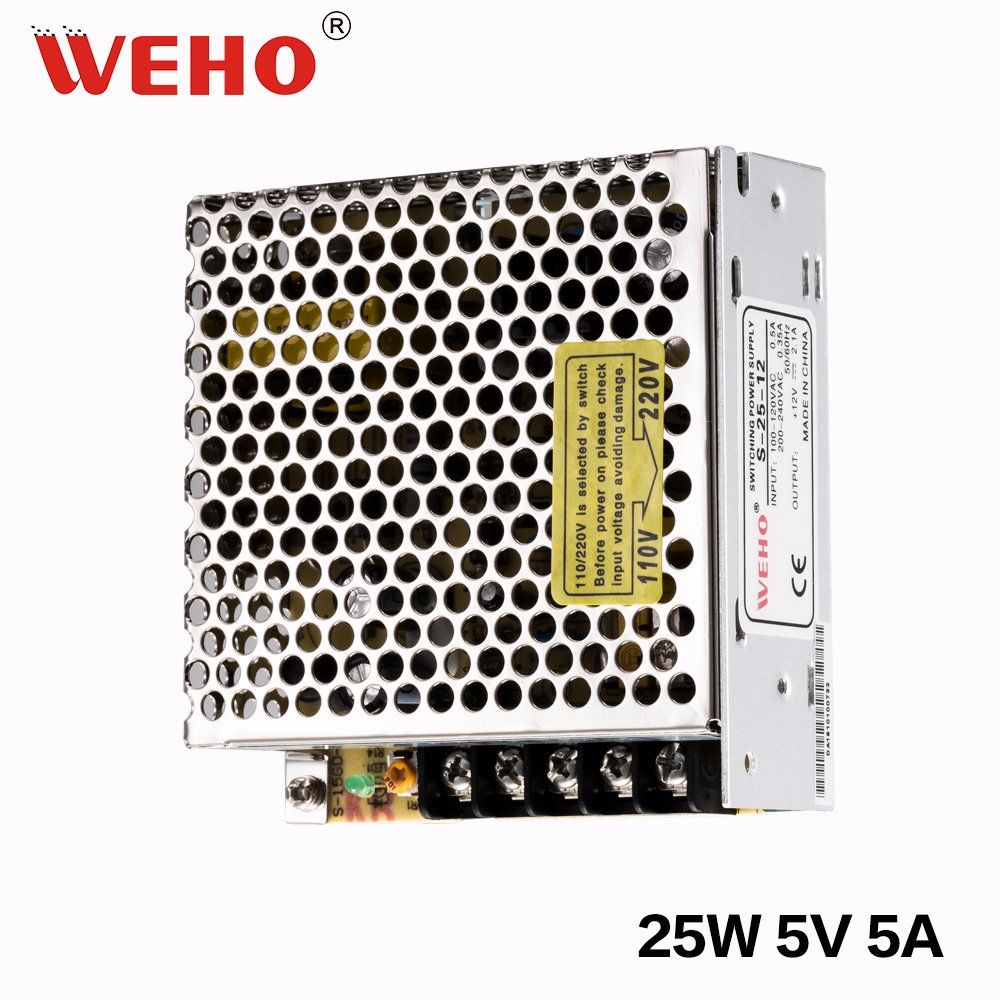

Single Output 25W 5V Swith Mode Power Supply (S-25-5)

Name: Single Output 25W 5V Swith Mode Power Supply (S-25-5)
Brand: all-electronics-online.com
SKU: 831727635
Availability: InStock
Rating: 4.8 (104 reviews)

Price:	US $ 4-5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-25-5
Output Current:	5A
Type:	Constant Voltage
Test:	100% Full Load Burn-in Test
Material:	Aluminum Case
Output Frenquency:	47~63Hz
Weight:	0.37kg
MOQ:	1-5PCS
Certificate:	Ce RoHS
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	PSE
Input Voltage:	110V/220V
Brand:	Weho

Product Description

25W 5V DC Switching Power Supply

Features:

1. DC Output 5v 12v 24v

2. AC input range selectable by switch

3. Protections: Short circuit / Overload / Over voltage / Over temperature

4. 100% full load burn-in test

5. Low cost, high reliability

6. 24 months warranty

Specifications:

Model	S-25-5	S-25-12	S-25-15	S-25-24
DC output voltage	5V	12V	15V	14V
Rated output current	5A	2.1A	1.67A	1.1A
Output current rage	0-5A	0-2.1A	0-1.67A	0-1.1A
Wave and noise	50mVp-p	50mVp-p	75mVp-p	100mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%
Load stablity	±1%	±0.5%	±0.5%	±0.5%
Efficiency	70%	76%	78%	78%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%
AC input voltage range	AC90~240V 180~264VDC by switch: 47~63Hz;
Input current	0.5A/115V0.25A/230V
AC INnrush current	Cold-start current 15A/115V 30A/230V
Overload proctection	105%~150% Tpye:Foldback current limiting Reset: auto recovery
Over-voltage protection
Setup rise hold up time	200s,100ms,30ms
Withstand voltage	Input and output internal 1.5KVAC,Input and enclosure 1.5KVAC,Output and enclosure 0.5KVAC
Isolation resistance	Input and output internal Input and enclosure,Output and enclosure 500VDC/100MΩ
Working temperature	-10°C~+50°C
Overall dimension	989735mm
Safety standards	Meet ULGB4943 UL60950 EN60950 requirement
EMC standards	Meet EN55022 GB9254 class A requirement
Weight	0.3Kgs

Our Workshop:

Packaging:

FAQ:

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.

Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
