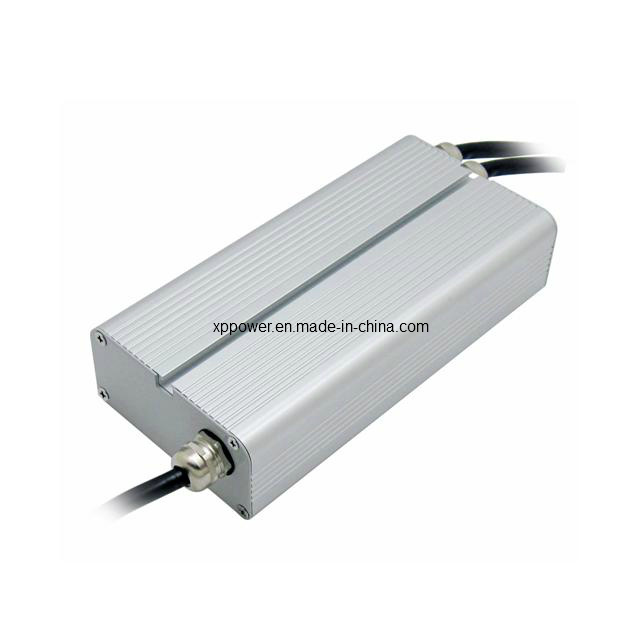

Single Output Enclosed Constant Voltage LED Driver with Pfc Function (75 Watts)

Name: Single Output Enclosed Constant Voltage LED Driver with Pfc Function (75 Watts)
Brand: all-electronics-online.com
SKU: 725277915
Availability: InStock
Rating: 4.4 (150 reviews)

Price:	US $ 12.66/Piece
Trade Terms:	FOB,CIF
Min Order:	2/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	PFC Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	Electronic Step-down Transformer

Product Description

Features:
Built-in active PFC function, PF>0.95 for 100% load
Universal input
High efficiency with PFC function
High reliability
Universal input
IP67
Protections function: Short Circuit, OLP, OVP etc
Timer dimming function
Current adjustable
UL1310 Class2 power unit
Cooling by free air convection
Warranty: 3 years

Electrical specifications:
4KV lightning meet standards (IEC61000-4-5)
Wide range of DC output
Input voltage range: 90 to 277V AC
Input frequency: 47~63Hz
Input current: 1.2A Max
Inrush current: 40A Max
Constant current precision: ± 5% Max
Dielectric withstand: I/P-O/P: 3750 VAC
THD: 10%
MTBF: Up to 50, 000 hours lifetime
Output voltage: 12~54V
Setup time: 3 second at nominal line

Environment parameters:
Operation temperatures: -35 to 60° C
Storage temperatures: -40 to 85° C
Operation humidity: 5 to 90% RH
Storage humidity: 5 to 95% RH
Cooling mode: Air cooling
Safety approval: EN 61347, UL 8750 and UL1012
EMC standards: EN 55015, EN 61547, EN 61000, GB 17743 and GB 17625

Applications:
LED lighting and moving sign applications

Model No.	OutputVoltage Range (VDC)	Output Max Current	R&N (Max)	Eff.% (Typ.)	Max Watt	PF (Typ.)
XPWP-75-12	12V	6.25A	120mA	85	75W	0.95
XPWP-75-24	24V	3.12A	150mA	87	75W	0.95
XPWP-75-30	30V	2.50A	180mA	87	75W	0.95
XPWP-75-36	36V	2.08A	200mA	87	75W	0.95
XPWP-75-42	42V	1.78A	250mA	87	75W	0.95
XPWP-75-48	48V	1.56A	280mA	87	75w	0.95
XPWP-75-54	54v	1.38a	300mA	87	75W	0.95
