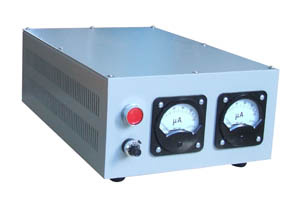

Single Output High Voltage Power Supply (20KV/50mA)

Name: Single Output High Voltage Power Supply (20KV/50mA)
Brand: all-electronics-online.com
SKU: 691013482
Availability: InStock
Rating: 4.3 (94 reviews)

Price:	US $ 2000-8000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LP-20KV/50mA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase Shift:	PWM
Output Type:	Single
Output Power:	>500W
Input Voltage:	220V
Voltage Regulating Mode:	Width Modulation Type
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Warranty:	1 Year
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	RoHS

Product Description

high voltage power supply
LP-20KV/50mA
Leadsun is a manufacturer of high voltage power supplies, accoridng to your requirement, we can customize the goods for you.

Range of power supply
Working voltage 1000V-200KV
Working current 1uA-2A
Range of frequency 10KHz-200KHz
Range of power 50W-20KW

Features
1. Low ripple, high accuracy, constant voltage and constant current control
2. Modular design and unit PC board control, easy for checking.
3. High stability and reliability of long time constant working.
4. Dry type high voltage power supply, the power can reach 10KW in a single unit.
5. Industrial standard of designing, the rated value is for constant working not peak to peak, big range for operation
6. Can be worked in the conditions of short circuit and sparks.
7. Over current, over voltage, less voltage protection
8. High accuracy of 4 digits shown constantly
9. The resolution is 0.01KV to 0.01mA

Items	Parameters	Remarks
Input voltage	220V AC	Wave less than 10%
Rated power	1KW	Full load, output Umax, Imax
Rated output voltage	20kV
Rated output current	50mA
Relative voltage control accuracy	3%	Uo=80%*Umax
Absolute voltage control accuracy	5%	Uo=80%*Umax
Voltage/temperature coefficient	100V/1K
Voltage program accuracy	Better than 5%
Voltage output range	10-20KV adjustable
Output limiting current	50mA
Control response time	Better than 50mS
Ambient temperature	-20 ~50 C
Ambient humidity	10%-90% no atomization
Cooling	Air cooling
Starting	Soft start
Constant voltage control mode	Phase shift PWM
Current control mode	Constant current of average value Peak value testing	Within 100nS overloading, cut off and restart automatically
Working frequency	20kHz
Exchanging frequency	Better than 80%	Output voltage from 50%—75%, efficiency 80%—90%
Voltage regulation rate	5%
Dimension	370600200	LBH
Current voltage program mode	By potentiometer

This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
