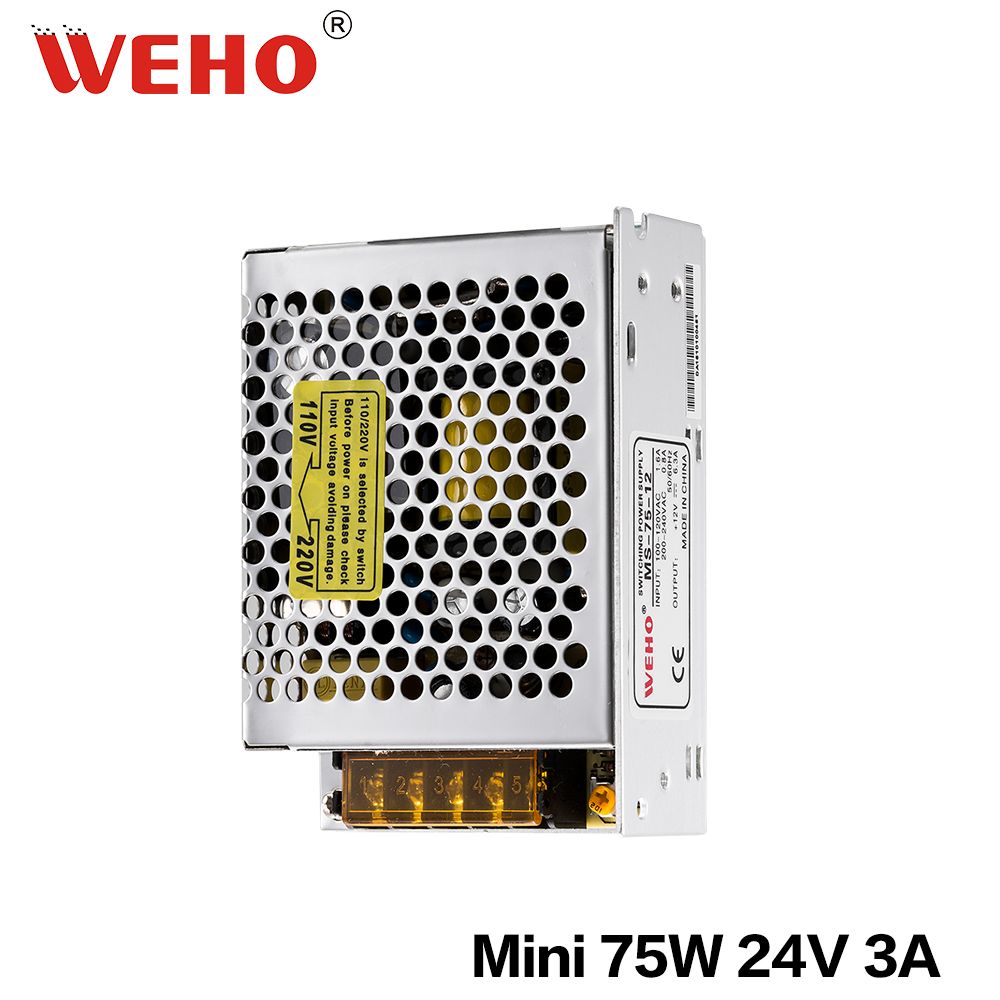

Single Output Minisize 75W AC DC SMPS 24V 3A Power Supply

Name: Single Output Minisize 75W AC DC SMPS 24V 3A Power Supply
Brand: all-electronics-online.com
SKU: 832306395
Availability: InStock
Rating: 4.9 (123 reviews)

Price:	US $ 5.4-6.6/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MS-75-24
Type:	Constant Voltage
Material:	Aluminum Case
Weight:	0.32kg
MOQ:	1-5PCS Sample Order
Shipping:	Sea Air DHL FedEx EMS UPS TNT
Test:	100% Full Load Burn-in Test
Voltage:	24V
Current:	3A
Output Type:	Single
Warranty:	2 Years
Output Power:	51 - 100W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	ISO
Brand:	Weho

Product Description

Single output minisize 75w ac dc smps 24v 3a power supply

Features:

1. AC input range selectable by switch

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 24 months warranty

Model	MS-75-12	MS-75-15	MS-75-24	MS-75-48
DC output voltage	12V	15V	24V	48V
Rated output current	6A	5.0A	3A	1.5A
Output current range	0-6A	0-5A	0-3A	0-1.5A
Wave and noise	75mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%
Load stability	±0.5%	±0.5%	±0.5%	±0.5%
Efficiency	78%	79%	82%	83%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%
AC input voltage range:	85~132VAC/170~264VAC selected by switch 47~63Hz;240~370VDC
AC inrush current:	Cold-start current 15A/115V 30A/230V
Overload protection:	105%~150% Type:plusing hiccup shutdown Reset:auto recovery
Setup rise hold-up time:	200ms,50ms,20ms
Withstand voltage:Input and output internal:	1.5KvAC,Output and enclosure:0.5KvAC
Isolation resistance:	Input and output internal,input and enclosure,output and enclosure:500VDC/100MΩ
Working temperature	0~50°C
Safety standards:	GB4943 UL60950 EN60950
EMC standards:	EN55022 GB9254,class A
Overall dimension:	1117836mm
Weight:	0.3.2Kgs

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.

Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
