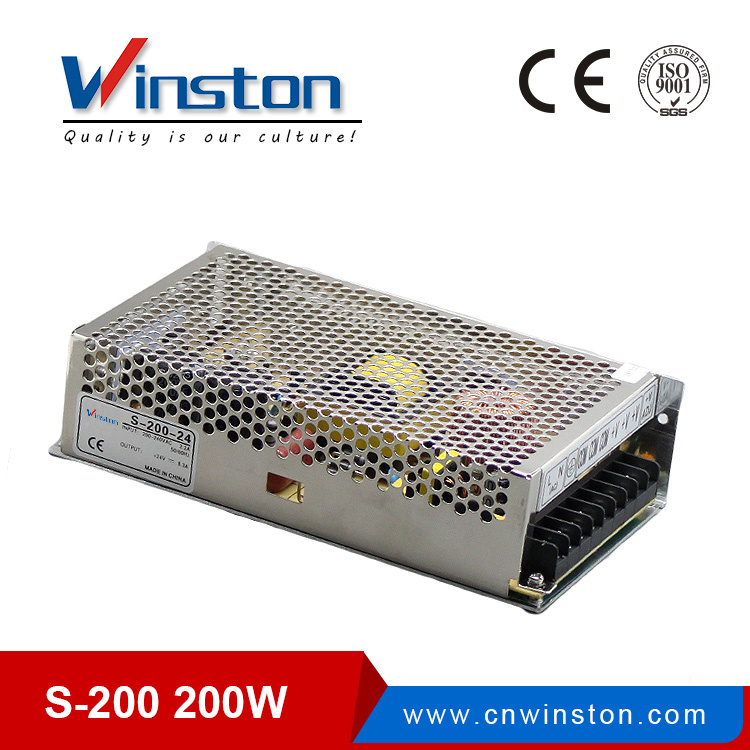

Single Output Protections Switching Power Supply (S-200)

Single Output Protections Switching Power Supply (S-200)
Price: US $ 8.6-13.4/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: S-200-5, S-200-12, S-200-15, S-200-24
Markets: North America,South America,Eastern Europe,Africa,Oceania,Western Europe
Output Frequency: 47Hz-63Hz
Antistop: Switching Power Supply
Condition: Original New
Manufacturer: OEM
Quality Guarantee: 2 Years
Protection Angle: 360
Dimension: 199*110*50mm
Weight: 0.9kg
Shell Material: Aluminium
Output Voltage: 5V-24V
Output Type: Single
Warranty: 2 Years
Input Voltage: 110-220V
Connection Mode: Series Switching Power Supply
Starting Mode: Separate-excited Switching Power Supply
Voltage Regulating Mode: Width Modulation Type
Power Supplying System: Level 1 Power Distribution Equipment
Certification: RoHS
Output Power: 200W
Brand: Winston/OEM

Product Description

S-200 switching mode power supply

1. Features:

200W switching power supply
1.ce rohs approved
2.2 years warranty
3.free sample
4.high quality

2. Specification


Model
Specification

S-200-5

S-200-12

S-200-15

S-200-24

DC output voltage

5V

12V

15V

24V

Output voltage rang(Note:2)

+/-2%

+/-1%

+/-1%

+/-1%

Rated output current

40A

16.5A

13.3A

8.5A

Output current range

0-40A

0-16.5A

0-13.3A

0-8.5A

Wave and noise(Note:3)

100mVp-p

100mVp-p

100mVp-p

100mVp-p

Inlet stability(Note:4)

+/0.5%

+/0.5%

+/0.3%

+/0.2%

Load stability(Note:5)

+/0.5%

+/0.5%

+/0.3%

+/0.3%

DC output power

200W

200W

200W

200W

Efficiency

75%

79.5%

80%

81.5%

Adjustable range for DC voltage

4.75-5.5V

10.8-13.2V

13.5-16.5V

21.6-26.4V

AC input voltage range

180~264VAC47~63Hz;
255~370VDC

Input current

2.2A/230V

AC inrush current

Cole-start current 36A/230V

Leakage current

<0.5mA/240VAC

Overload proctection

105%~150%Type:pulsing hiccup shutdown Reset:auto
recovery

Over-voltage proctection


115%~135%

High-temperature and protection

115%~135%

Temperature coefficient

+/-0.03%(0~50)

Setup, rise,hold up time

200ms,100ms,30ms

Vibration

10-500Hz,,2G10min,/cycle, periodfor 60min,Each axes

Withstand voltage

Input and output interal:1.5KvAC,Input ad enclosure:1.5KvAC
Output and enclosure:0.5KvAC

Isolation resistance

Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ

Working temperature and humidity

-10+60(Refer to output derating curve),20%90%RH

Stoerall dimension

-20+85.10%~95%RH

Overall dimension

199*110*50mm

Weight

0.9Kgs

Safety standards

Meet UL1012 requirement(Not apply for the mark)

EMC standaras

Meet FCC PART 15J Conduction class B
