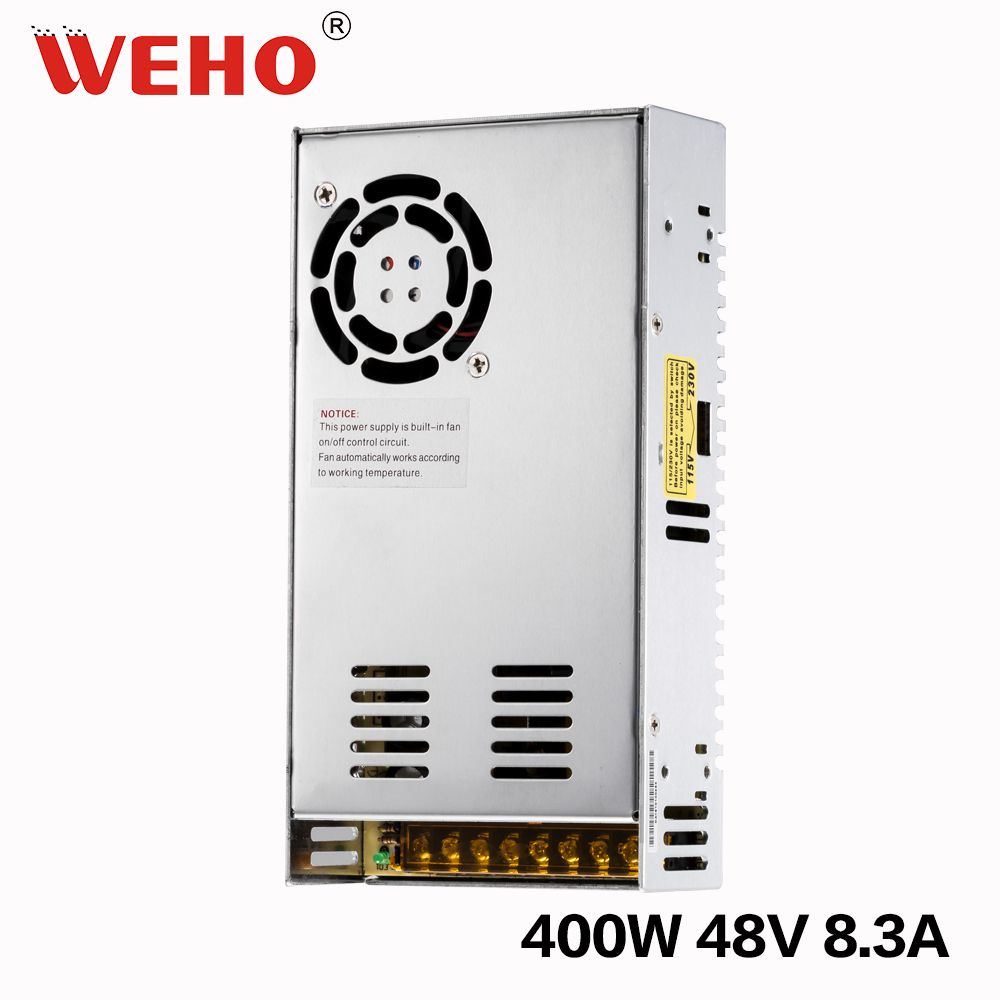

Single Output S-400W 48V Power Supply for 3D Printer

Name: Single Output S-400W 48V Power Supply for 3D Printer
Brand: all-electronics-online.com
SKU: 832196085
Availability: InStock
Rating: 4.9 (65 reviews)

Price:	US $ 15.8-19.8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-400-48
Output Current:	17A
Type:	Constant Voltage
Test:	100% Full Load Burn-in Test
Material:	Aluminum Case
Output Frenquency:	47~63Hz
Weight:	1.2kg
MOQ:	1-5PCS
Output Type:	Single
Warranty:	2 Years
Output Power:	301 - 400W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	PSE
Input Voltage:	110V/220V
Brand:	Weho

Product Description

400W 48V DC Switching Power Supply

Features:

1. AC input 90~132VAC / 180~264VAC

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 24 months warranty

Specifications:

Model	S-400W-5	S-400W-12	S-400W-15	S-400W-24	S-400W-48
DC output voltage	5V	12 V	15 V	24V	48V
DC output current	60A	33A	27A	17A	8.3A
DC output voltage error	±1%	±1%	±1%	±1%	±1%
Ripple & noise	150mV	150mV	150mV	150mV	150mV
efficiency	73%	74%	78%	81%	83%
AC input voltage range	85-132VAC/170-264vac 47-63HZ 240-370VDC
Input current	6.5A/115V 4A/230V
AC inrush current	Cola-start current 25A/115V 50A/230V
Leakage current	<3.5mA/240VAC
DC adjustable range	±10% rated output voltage
Over load protection	105-135% cut off the output auto -recovery
Over-voltage protection	115-135 cut off the output auto -recovery
Setup rise hold up time	200ms 50ms 20ms
Withstand voltage	I/P-O/P:1.5KVAC 1minute
	I/P-FG:1.5KVAC 1minute
	O/P-O/P:0.5KVAC 1minute
Withstand temperature	-10°C~+60°C,20%-90% RH
weight	1.05kg

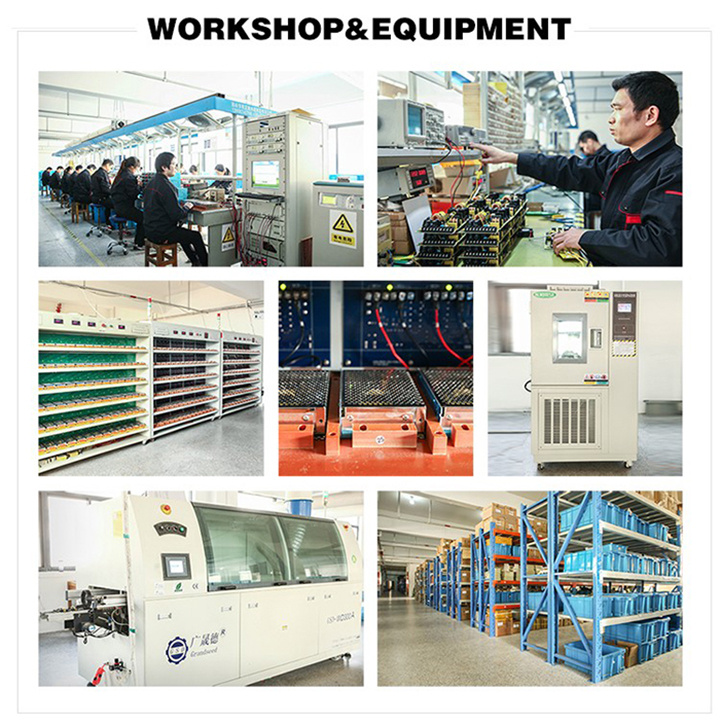

Our Workshop:

Packaging:

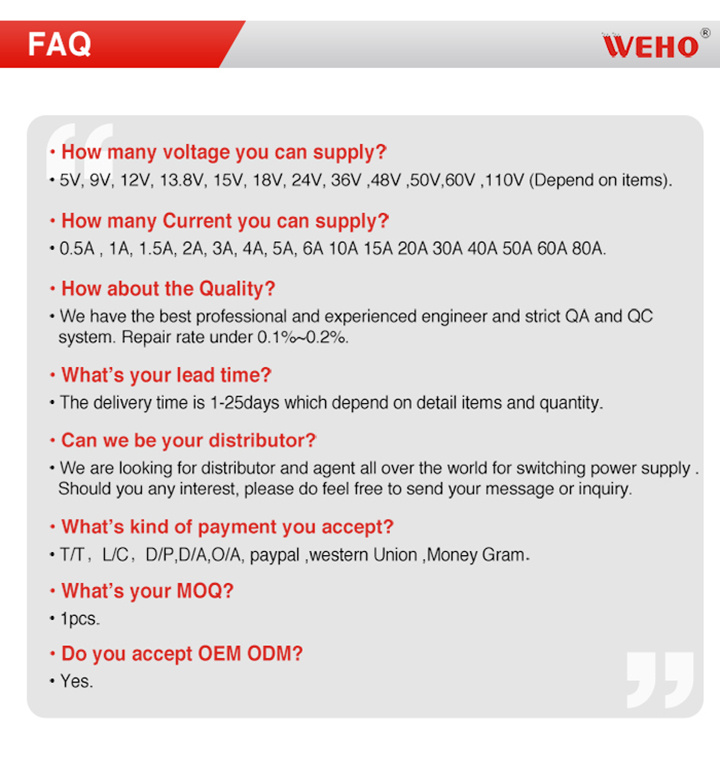

FAQ:

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.

Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
