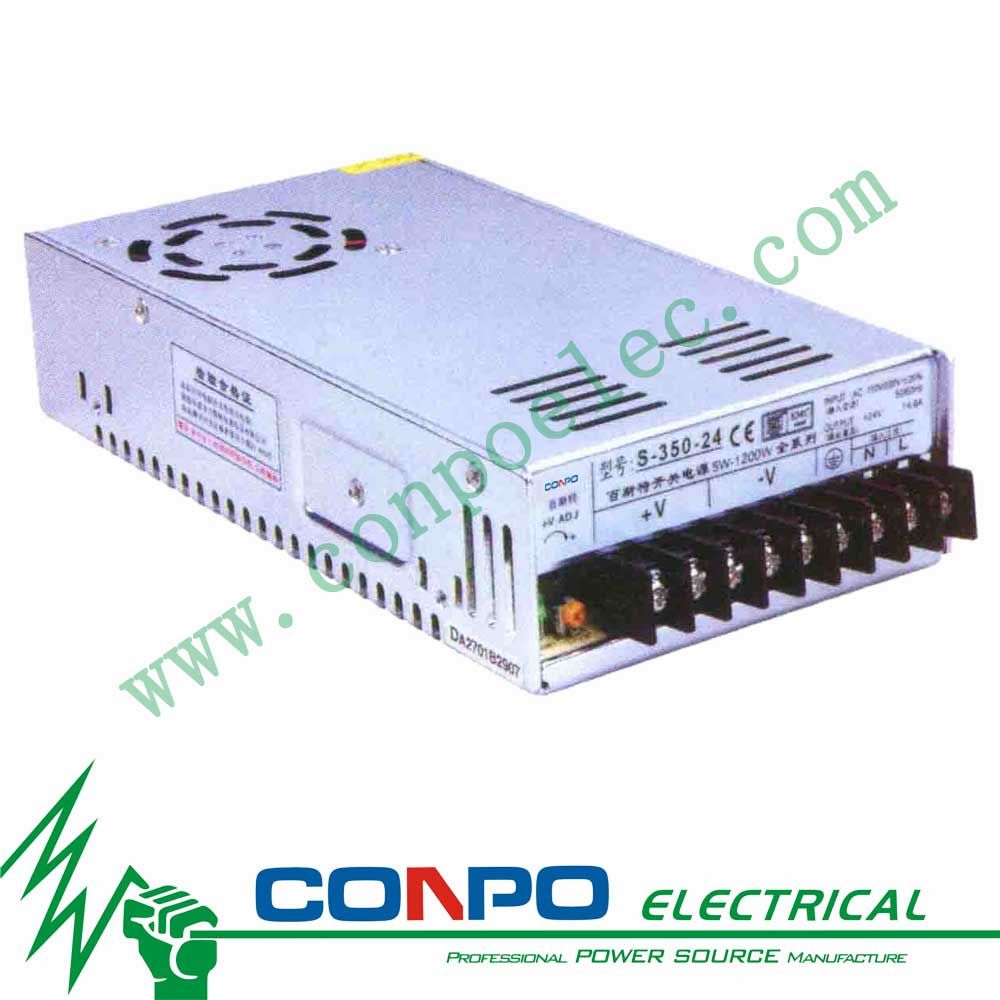

Single Output Switching Power Supply (S-350-...)

Name: Single Output Switching Power Supply (S-350-...)
Brand: all-electronics-online.com
SKU: 683563255
Availability: InStock
Rating: 4.9 (23 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-350-...
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	2 Years
Output Type:	Single
Certification:	CE, RoHS, SGS, ISO9001
Output Power:	350W

Product Description

Feature:
1. Basic universal type
2. Short circuit, over load protection
3. LED power indicator
4. 100% full load test

Remarks:
Custom-made specifications are acceptable.

Specification:

Model	S-350-5	S-350-12	S-350-24	S-350-48
DC output voltage	5V/50A	12V/29A	24V/14.6A	48V/7.3A
Wave and noise	100mVp-p	75mVp-p	75mVp-p	75mVp-p
Inlet stability	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%
Load stability	+/-1%	+/-0.5%	+/-0.5%	+/-0.5%
Efficiency	73%	74%	81%	83%
Adjustable range for DC voltage	+/-10%	+/-10%	+/-10%	+/-10%
AC input voltage range	85~132VAC/170~264VAC Selected by switch 47~63Hz, 240-370VDC
AC inrush current	Cold-start current 25A/115V 50A/230V
Overload protection	105%~135% hiccup mode, auto-recovery
Over-voltage protection	115%~150% rated output voltage
Setup rise hold up time	200ms 50ms 20ms
Withstand voltage	I/P-O/P 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute
Isolation resistance	IP-O/P I/P-FG O/P-FG:500VDC/100MΩ
Working temperature	-10~50ºC
Safety standards	Design refer to GB4943, UL60950, EN60950
EMC standards	Design refer to GB9254, EN55022 Class B
Weight	1.05kg
Size	21511550mm

CONPO Power Tech. Co., Ltd specializes in producing Power Source as a member of China Power Supply Society. Since being founded, we has been insisting on the theoretic guideline of "Science & Technology is the first productive force" and holding up brand strategy as the guide, relying on forward understanding about power supply technology, perfect craft and unwearied pursuing to quality, we can show top quality power supply products, and set up fine image in Chinese market and abroad market.

CONPO has the modern workshops and advanced production devices, besides we always introduce technology positively, reform craft continuously, devote to researching and developing Voltage Stabilizer/Voltage Regulator, Uninterruptible Power Supply(UPS), Power Inverter, Solar Panel, Solar Controller, Solar Inverter and Solar Generator, Switching-mode Power Supply(SMPS), Transformer, Frequency Inverter etc. Power and Solar products. In addition, we try to find excellent administrators and technical talents, through years on working hard, we has been improved on the aspect of quality, power supply varieties, producing scale, management mode, so products manufactured by us have reached advanced technical level, they are not only popular with a great of customers in China, but also in foreign countries.

CONPO Products have been approved by Quality Supervision & Inspection(QSI), Insured by PICC, and also have CE, RoHS, UL, CCC certificates. We insist on the policy of developing by quality on the time, and also have passed ISO9001: 2000 Quality Management System Certificate. Relying on rich economic strength, fine production engineering, innovating management mode, we can dare to meet kinds of challenges from China entering WTO that is helpful for establishing reinforced foundation of international business.

We are keeping our business principle for " Approaching the first-class management, Producing the first-class products, Providing the first-class service". All CONPO staffs are working hard and constantly innovate. Honest CONPO are welcome to all users to fighting a better tomorrow hand in hand.
