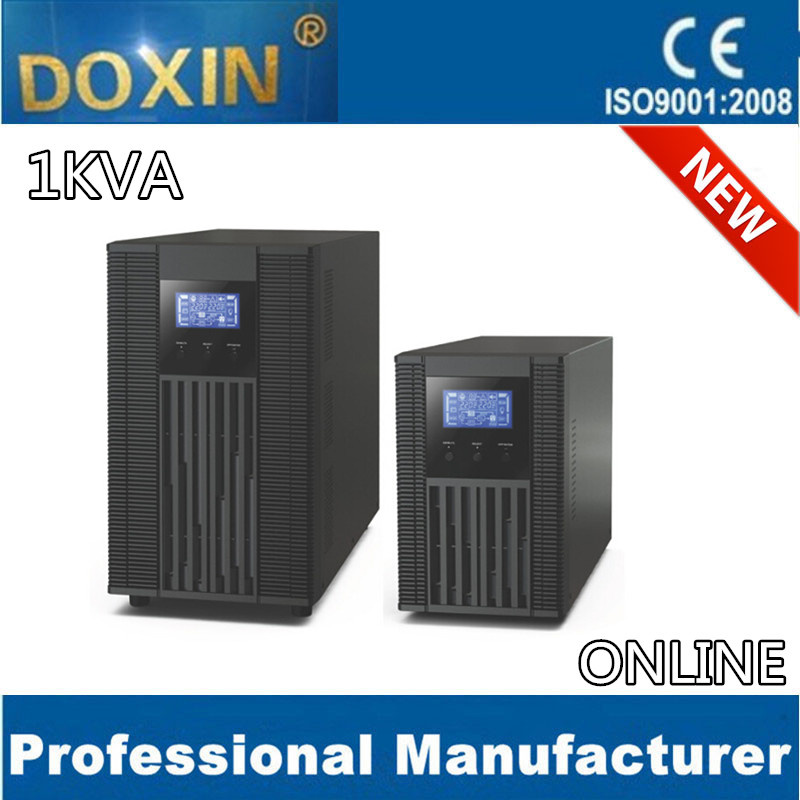

Single Phase 1kVA 2kVA 3kVA Online UPS with LCD Screen

Prod Model:	DXUPS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
OEM:	Welcome
Frequency:	50Hz/60V
Input Voltage:	110V/220V
Certificate:	CE
Warranty:	1 Year
Wattage:	800W
Weight:	26kg
Size:	397X145X220mm
Color:	Black
Multi-Protection:	Yes
Phase:	Single Phase
Protection:	Short Circuit
Type:	off Line
Application:	All
Brand:	Doxin

Product Description

High frequency single phase 1kva 2kva 3kva online ups with large LCD screen

Main Features:
1. Large blue ground LCD digital display shows Detailed Real-Time UPS Status and parameters.
2. Set Output voltage, Frequency parameter and bypass function on the display.
3. Advanced MCU microprocessor control technology, ensure long life reliability.
4. Wide input voltage range, Zero transfer time.
5. Excellent Protection against over voltage, over load, over current, over charge and so on.
6. Input L and N lines reverse wiring detection, Auto start when AC back.
7. DC start function, Input PFC revise function.
8. Humanization bypass output can be adjustable.
9. Smart RS232 communication with monitoring software.
10. Intelligent slot available for AS-400 Dry contact and SNMP card Remote control.
11. Strong antijamming capability.
12. Available to work with generators.
13. Lightning, surge, short circuit, Network/fax/modem surge protection.
14. Corresponding plug and sockets to different countries.

1.Sine-wave output
True sine-wave output with less than 3% THD

2.Double conversion design
Zero transfer/complete isolation of input AC

3.UPS monitoring software
Powerful true RS232 communication via the enclosed software manages and safely shutdown operating systems.

4.Network RJ45/11 protection
Completed powerful network and phone line surge protection

5.AC surge suppressor
Powerful multi-stage surge components exceed IEEE requirements.

6.SNMP slot option
Allows for remote monitoring and control via www

7.Sleep mode
Worry free battery management. The unit turns itself off after ten seconds to conserve battery power when no power needs are detected.

8.Battery level indicators
LED's indicate battery levels

9.Load sensing
The incorporated LED load indicators allow IT professionals to manage backup time and balance power loads.

10.Low battery indicators
The low battery level indicator will warn of eminent UPS shutdown two full minutes before unit shuts down.

11.Replace battery indicators
A preventative measure that indicates when batteries must be replaced to prevent server crashes.

Power Capacity  (VA/W)	1KVA/0.8KW	2KVA/1.6KW	3KVA/2.1KW
Input
Normal Voltage	110VAC/220VAC
Voltage Range	60~138VAC/115~300VAC
Frequency Range	46~54Hz(default),user adjustable within 40~60Hz
Power Factor	0.97
Output
Voltage Range	110VAC/220VAC±2%
Frequency Range	46-54Hz or 50Hz±0.2Hz(Line mode),50Hz±0.2Hz(Battery mode)
Waveform	Pure sine wave
Distortion	3%	4%
Overload Capacity	108%~150% for 30 seconds,±150% for 300ms
Current Crest Ratio	3:1 Max
Battery
Type	Sealed Lead-Acid Maintenance free battery
Recharge Time	5hrs to 90% of capacity after full load discharge
Transfer Time	0ms,less than 4ms from inverter to bypass and vice vase
LED/LCD Indicators
Status	Load lever, battery lever, battery, utility power, inverter, bypass, overload, fault.
Audible Alarm
	Bypass, on battery mode, battery low, overload,  fault
Acoustic Noise
At 1 meter distance	45dBA	50dBA
Communications
DB-9 Port	RS232 Serial Interface
Intelligent Slot	Option: Web power, AS400 Card or Winpower CMC Phase  Single phase ground     Rated power 1000VA/800W  2000VA/1600W  3000VA/2400W  Input Frequency range   40Hz-70Hz   Frequency factor   ≥0.99@ Rated voltage  (100% load)   Voltage range Low voltage conversion 160VAC/140VAC/120VAC/110VAC±5% (Based on the Load Range100%-80%/80%-70%/70%-60%/60%-0)    Low voltage recovery 168VAC/148VAC/128VAC/118VAC±5% (Based on the Load Range100%-80%/80%-70%/70%-60%/60%-0)    High voltage conversion   300VAC±5%     High voltage recovery 290VAC±5%     Output       Output voltage  200/208/220/230/240VAC          Wave form  (Batt.mode) Pure sine wave  Voltage range (Batt.mode)    ±1%       Frequency range (Synchronization correction range)   47-534Hz or 57-63Hz        Frequency range  (Batt.mode)   50hz ± 0.2hz or 60hz ± 0.2hz        Harmonic distortion      ≤3% THD( linear load); ≤5%THD(Non-linear load     Transfer time   Bypass to inverter  0    Inverter to bypass  4ms    Effciency   AC mode   87%      90% DC mode    83%  87%  89% Battery          Standard model machine       Battery type   12V7AH         Quantity   2  6  Standard charging time      4 hours charge to 90%  The maximum charge current    1A     Charging voltage     27.3VDC±1%   82.1VDC±1%      Long-term model machine        Battery type   Depending on the application provider      Quantity  3  6  8  The maximum charge current   1.0A/2.0A/3.0A/4.0A     Charging voltage   41.0VDC ±1%   54.7VDC ±1%   109.4VDC ±1%       Display description LED or LCD     Load size , battery capacity, AC mode,DCmode,bypass mode, Fault Indication   Warning sound    DC node        Every 4 seconds a sound          Warning sound      Every 1 second a sound             Overload       Every1 second a sound          Error     Continuous ringing           Physical properties             Standard models     Dimension(D*W*H)mm      397*145*220 419*190*318    Net weight(kgs)     24  26 28/33 Long-term models      Dimension(D*W*H)mm      282*145*220 397*145*220      Net weight(kgs)     4.6 6.8  7.4   Environment          Humidity         20-90% RH @ 0-40°C(No condensation)        Noise       <50dBA@1Meter     Control Management    Smart RS-232/OptionalUSB      Support windows ®   2000/2003XP/Vista/2008,windows®7/8,Linux,Unix,and MAC     Optional SNMP     Power management support SNMP management and network management

* Product specifications are subject to change without further notice
