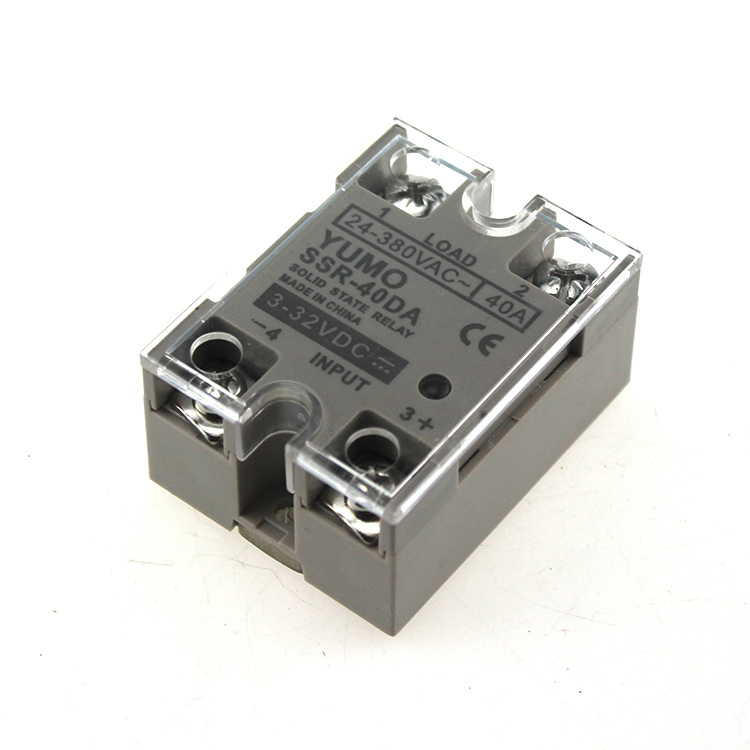

Single Phase 40A DC to AC Solid State Relay SSR Relay Ssrs SSR-40da

Name: Single Phase 40A DC to AC Solid State Relay SSR Relay Ssrs SSR-40da
Brand: all-electronics-online.com
SKU: 833607485
Availability: InStock
Rating: 4.5 (67 reviews)

Price:	US $ 2.5-3.8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SSR-40DA
Load Current:	40A
Input Voltage:	3-32VDC
Output Voltage:	24-380VAC
Off Leakage Current:	≤2mA
Dielectric Strength:	2500VAC
Weight:	132

Product Description

Features

1. A bi-directional controlled silicon ouput, zero voltage open, zero current switching;
2. Between input circuit and output circuit have optical isolation;
3. Solation voltage between input and output is 2500V;
4. Output of the power metal-oxide field effect transistor is very low on-resistance;
5. Input signal compatible with TTL logic circuits;
6. Between input circuit and output circuit have Transformer isolation;
7. LED indicated the working state;
8. With security cover.

Tecnical Parameter

Load Current	10A,25A,40A,50A 60A,75A,80A
Load Voltage	24-380VAC
Control Voltage	VR:250KΩ/110VAC 500KΩ/220VAC
Control Current	/
On Voltage	≤1.5V
Off Leakage Current	≤2mA
On-off Time	/
Dielectric Strength	2500VAC
Insulation Resistance	1000MΩ/500VDC
Ambient Temperature	-30ºC~+75ºC
The work instructions	/
Weight	132g
