| Prod Model: |
Green Star Series 6K-20Kva |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transfer Time: |
Zero |
| Display: |
LCD or LED Optional |
| Advanced: |
True Double Conversion on-Line |
| Color: |
Black |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Upsen |
Product Description

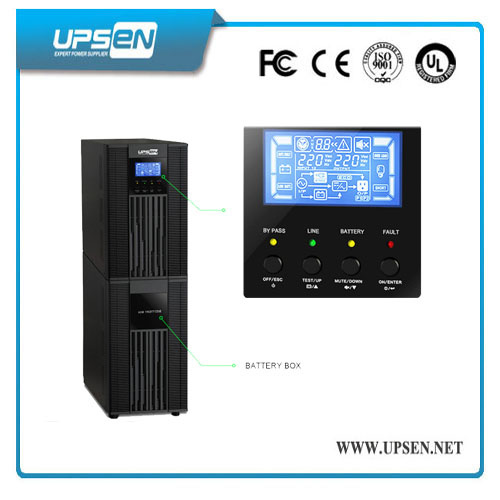

Single phase 50Hz Online double conversion UPS with CPU control
Model:High Frequency Online UPS Green Star Series 6K-20Kva (1ph in / 1ph out) (3ph in / 1ph out)
Key Features
1:ECO mode operation for energy saving
2:IGBT inverter and output isolation transformer
3:Ultra-distinct interface information processing technology
4:friendly and intuitive interface, full protection for the equipment
5:RS232 communication port, and SNMP technology compatible
6:Front access makes maintenance and replacement easily, save space
7:Digital control technology provides high performance and system reliability
8:Capability of supplying distorted loads, containing output voltage distortion with crest factors
9:Intelligent self diagnose function, all kinds of fault protection, large capability of history record storage
10:Selectable output voltage, frequency parameter and bypass function on the display and available to work with generators
UPS Application
Home, Office, Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom, Bank system,Automation systems ,Data processing systems,Renewable energy systems, ATM,Computers, Railway,Solar electric energy generation,security system, etc.
Technical Specification
| | | |
| GREEN STAR 6K/10K ONLINE UPS SPECIFICATION |
| MODEL | G6K (L) | G10K (L) |
| PHASE | 1 phase in / 1 phase out |
| CAPACITY | 6000 VA / 4800 W | 10000 VA / 8000 W |
| INPUT |
| Nominal Voltage | 208/220/230/240VAC |
| Voltage Range | Low Line Loss | 110 VAC ± 3% at 50% Load
176 VAC ± 3% at 100% Load |
| Low Line Comeback | 120 VAC ± 3% at 50% Load
186 VAC ± 3% at 100% Load |
| High Line Loss | 300 VAC ± 3% |
| High Line Comeback | 290 VAC ± 3% |
| Frequency Range | | 46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz |
| Power Factor | >= 0.99 @ 100% load |
| OUTPUT |
| Nominal Voltage | 208/220/230/240VAC |
| AC Voltage Regulation | ± 1% |
| Frequency Range (Synchronized Range) | 46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz |
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz |
| Current Crest Ratio | 3:1 (max.) |
| Harmonic Distortion | <= 3 % THD (Linear Load)
<= 6 % THD (Non-linear Load) |
| Transfer Time | Bypass to Inverter (Line mode) | Zero |
| Inverter to Bypass (Line mode) | Zero |
| Waveform (Batt. Mode) | Pure Sinewave |
| EFFICIENCY |
| Line Mode | 89% | 90% |
| Battery Mode | 88% | 89% |
| BATTERY |
| Standard Model | Battery Type | 12 V / 7 AH | 12 V / 9 AH |
| Numbers | 16 | 16 |
| Typical Recharge Time | 9 hours recover to 90% capacity |
| Charging Current | Default:1.0 A ± 10%, Max.:2.0A ± 10% | Default:1.0 A ± 10%, Max.:2.0A ± 10% |
| Float Charging Voltage | 218.4 VDC ± 1% |
| Long-run Model | Battery Type | Depending on applications |
| Numbers | 16-20** (adjustable) |
| Charging Current | Default:4.0 A ± 10%, Max.:6.0A ± 10% | Default:4.0 A ± 10%, Max.:6.0A ± 10% |
| Float Charging Voltage | 273 VDC ± 1% (based on 20 pcs batteries) |
| INDICATORS |
| LCD Panel | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions |
| ALARM |
| Battery Mode | Sounding every 4 seconds |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| PHYSICAL |
| Standard Model | Dimension, D X W X H (mm) | 369 x 190 x 688 | 442 x 190 x 688 |
| Net Weight (kgs) | 60 | 75 |
| Long-run Model | Dimension, D X W X H (mm) | 369 x 190 x 318 | 442 x 190 x 318 |
| Net Weight (kgs) | 21 | 23 |
| ENVIRONMENT |
| Operation Humidity | 0-95 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 55dBA @ 1 Meter | Less than 58dBA @ 1 Meter |
| MANAGEMENT |
| Smart RS-232/USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
| | | | |
| *Derate capacity to 60% of capacity in CVCF mode and to 90% when the output voltage is adjusted to 208VAC. |
| *If the UPS is installed or used in a place where the altitude is above than 1000m, the output power must be derated |
| one percent per 100m. | | |
| *Product specifications are subject to change without further notice | |
* Long-run model is only available in 200/208/220/230/240VAC systems.
