Single-Phase AC Induction Motors/Jx (YY/DO2) Series

Name: Single-Phase AC Induction Motors/Jx (YY/DO2) Series
Brand: all-electronics-online.com
SKU: 779780015
Availability: InStock
Rating: 4.5 (94 reviews)

Price:	US $ 30-60/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	JX5612------JX6324
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frame Size:	56-71
Insulation Class:	B,F,H
Frequency:	50Hz,60Hz
Rated Power:	0.04~1.1kw
Protection Degree:	IP44
Cooling Method:	IC411
Number Of Stator:	Single-Phase
Function:	Control
Starting Mode:	Single Phase Capacitor Run Motors
Certification:	CE
Brand:	Hongma

Product Description

JX( DO2/YY), Series Single-Phase Asynchronous Motor is designed to nation standard and are of good performance, low noise, small size, light weight, easy maintenance. Features designed to Protection Class IP44, IP54 and higher up to IP55; Cooling Method IC411; Rated Voltages 380V, 400V and 415V; Frequency 50HZ or 60HZ. It is widely used in mechanism equipment with single phase voltage.

GENERAL INFORMATION

Frame Size: H56~71
Rated Power: 0.04~1.1KW
Rated Voltage: 220V
Frequency: 50HZ ;60HZ
Protection Class: IP44;IP54;IP55
Insulation Class: B;E;F
Ambient Temperature: -20~+40 °C
Altitude: ≤1000M

TECHICAL DATA of JX series single phase Resistance Starting AC induction motor

Type		Output	Voltage	At full load
		Output	Voltage	Speed	Current	Efficiency
		W	V	r/min	A	%
JX	5612	90	220	2800	0.7	63
JX	5622	120	220	2800	1	50
JX	5614	60	220	1400	0.5	51
JX	5624	90	220	1400	0.8	65
JX	6312	180	220	2800	1.44	65
JX	6314	120	220	1400	1.2	53
JX	6324	180	220	1400	1.7	57

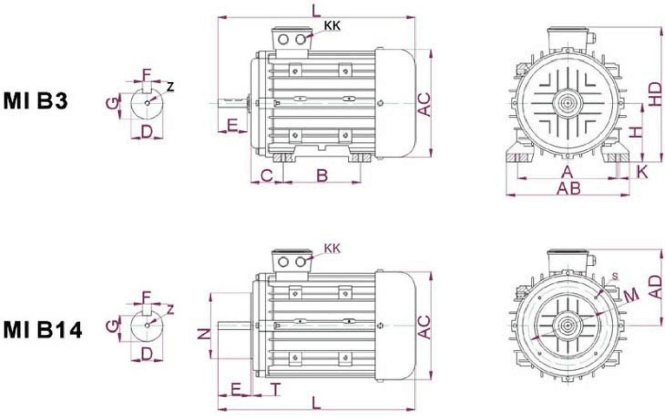

MOUNTING DATA

Frame No.						Mounting & Overall Dimensions (mm)
Frame No.	A	B	C	D	E	F	G	H	K	M	N	e	S	≥L	≥S
	A	B	C	D	E	F	G	H	K	M	N	e	S	≥L	≥S
56	90	71	36	11	23	4	8.5	56	7	65	50	2	M5×0.8	200	75
63	100	80	40	14	30	4	11.5	63	8	75	60	1	M5×0.8	230	85
71	112	90	45	16	40	5	12.8	70	10	85	70	1	M6×1	255	92

Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001: 2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.

Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, GOST R standard Motor and UL NEMA Standard Motor.

We are looking for new distributors and agents in the whole worldwide to expand our sales network. Welcomes contact us to build business relationship and friendship.
