Single Phase AC Voltage Current Transducer

Name: Single Phase AC Voltage Current Transducer
Brand: all-electronics-online.com
SKU: 672652061
Availability: InStock
Rating: 4.3 (150 reviews)

Price:	Negotiable/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FUD-I/U
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Current Transducer

Product Description

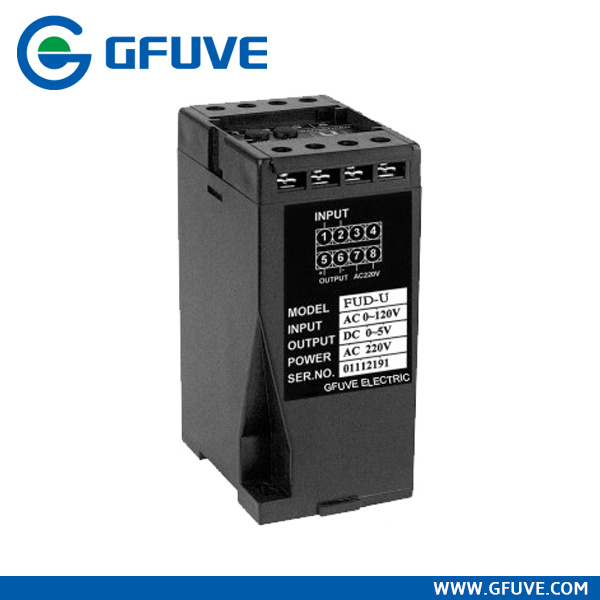

FUD-I/U SINGLE PHASE AC VOLTAGE CURRENT TRANSDUCER
Changing the measured AC current/voltage to the DC current/voltage output according to the linear scale Excellent temperature characteristic and good working stability Configuration compactness and briefness.

FEATURES
Single phase current / voltage transducer
AC current / voltage transducer
Accuracy class can reach 0.2%
AC input range can be customized
DC output range can be customized

MODEL DESCRIPTION

FUD-Type-Input-Power Supply-Output
Type	I: Single phase AC current transducer U: Single phase AC voltage transducer Ir: Single phase AC real RMS current transducer Ur: Single phase AC real RMS voltage transducer
AC input	A1: 0-1A, A2: 0-5A, A3: 0-10A. V0: 0-70V, V1: 0-120V, V2: 0-250V, V3: 0-300V, V4: 0-450V, V5: 0-500V.
Power supply	P1: AC110V±10%, P2: AC220V±15%, P3: AC110V-330V.
DC output	O1: 0-5V, O2: 1-5V, O3: 0-20mA, O4: 4-20mA, O5: RS485

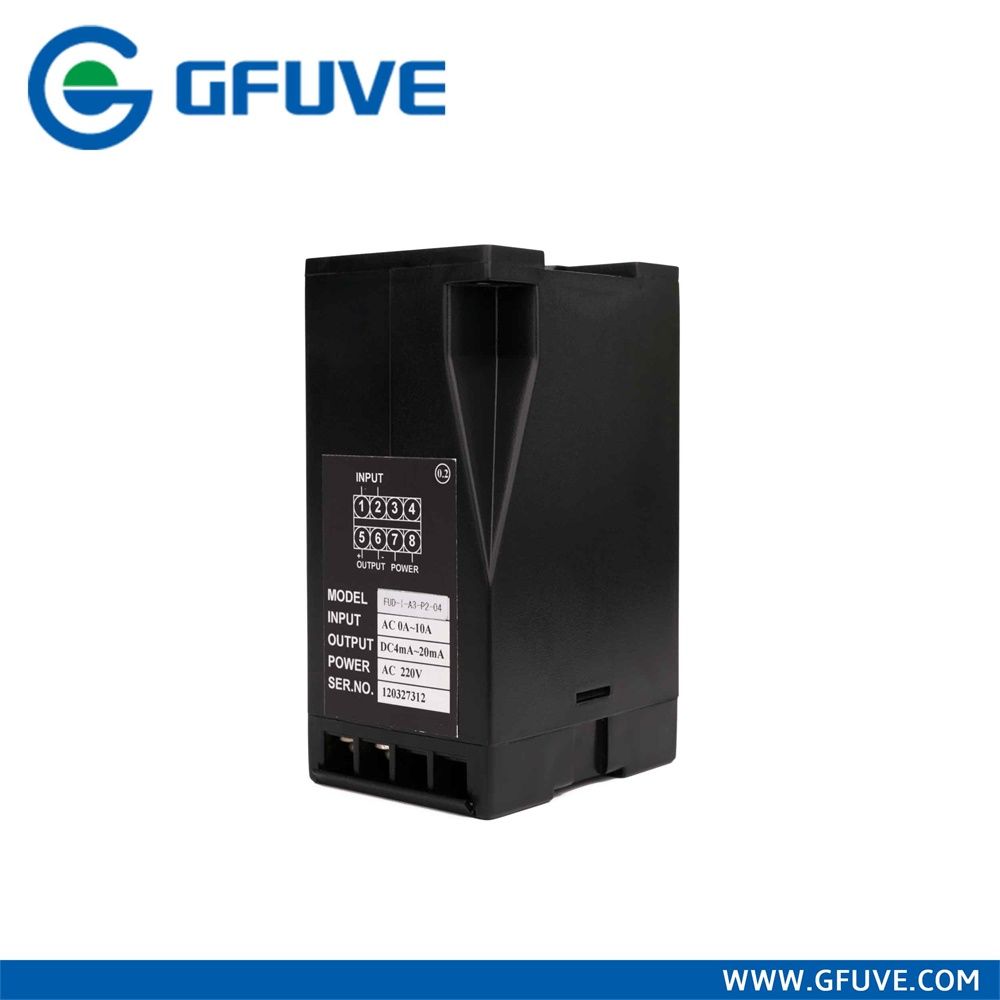

Example 1: FUD-I-A2-P2-O4
FUD series single phase AC current transducer	Input: AC0-5A Power supply: AC220V±15% Output: DC4-20mA
Example 2: FUD-Ur-V3-P2-O4
FUD series single phase AC real RMS voltage transducer	Input: AC 0-300V Power supply: AC220V±15% Output: DC4-20mA
Please check the type, input range, output range and power supply when your order the product.

TECHNICAL INDEX

Technical Index
Standard	GB/T 13850-1998, IEC688:1992
Accuracy	0.2%, 0.5%
Consumption	≤3VA
Accuracy drift	Annual variation < 0.2%
Insulation voltage	AC 2kV/min.1mA (Between input- output / power)
Insulation resistance	≥20MΩ (DC500V)
Surge voltage	5KV (Peak value), 1.2/50μs
Response time	≤350ms
Input range	AC 0-10A ,AC 0-500V(Option), 50/60Hz
Absorbed power	<0.5VA/450V, <0.2VA/100V, <0.1VA/5A
Overload	Current: 2 times continuous, 30 times /1s; Voltage: 2 times continuous
Load resistance	Current output: RL≤550Ω
Load resistance	Voltage output: RL≥2kΩ
Working environment	Temperature: -10 to +50ºC
Working environment	RH: 20-90%, without condensation
Storage conditions	Temperature: -40 to +70ºC
Storage conditions	RH: 20-95%, without condensation
Installation	35mm DIN sliding-way or M4 screws
Dimension	55mm x 75mm x 120mm
