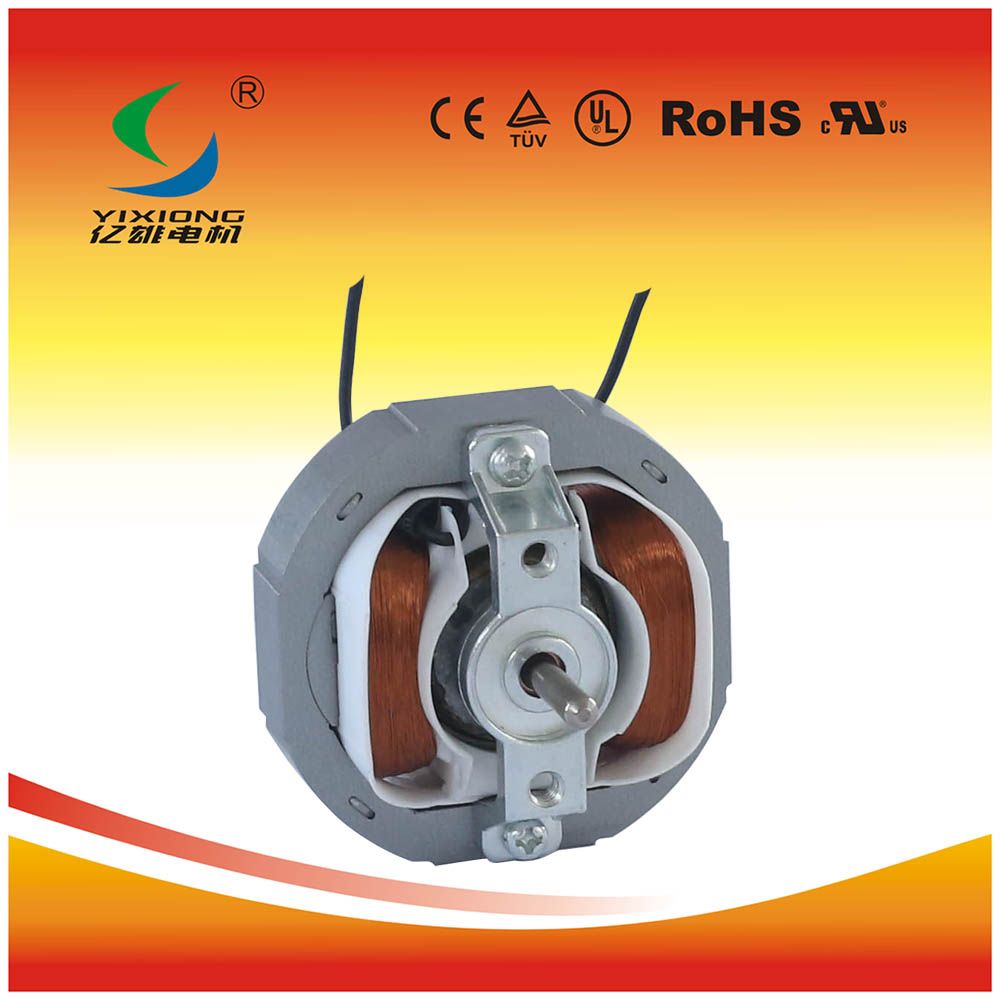

Single Phase AC YJ58 Fan Motor

Name: Single Phase AC YJ58 Fan Motor
Brand: all-electronics-online.com
SKU: 651912645
Availability: InStock
Rating: 4.4 (58 reviews)

Price:	US $ 1-5/Piece
Trade Terms:	by sea or by air
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YJ58
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Supply Voltage:	220-240V 50Hz 100-120Hz 60Hz
Core Material:	Sillicon Sheet
Wire Material:	Copper
Protection:	Over Heater Protection
Application:	Household Appliances
Operating Speed:	Constant Speed
Number Of Stator:	Single-Phase
Rotor Structure:	Winding Type
Casing Protection:	Open Type
Species:	Shaded Pole Motor
Starting Mode:	Induction Start
Certification:	Ce UL
Brand:	Yixiong

Product Description

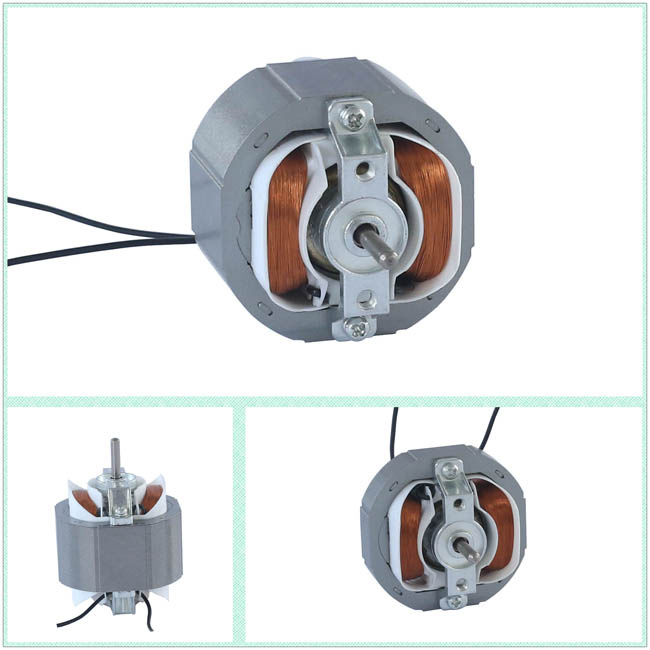

Single phase ac YJ58 fan motor Specification:
Motor size:
1. Stator diameter: 58mm
2. Shaft diameter: 4mm
3. Shaft length: As your request
4. Lead wire: 2*300mm, also can be made according to your demands
5. Number of pole: 2 poles
6. Rotation: CW/CCW
7. Insulation class: E/B/F/H

Application:
1. This motor is commonly used in humidifier, fan-heater, air-cleaner, exhaust fan, hand drier, ventilation fan
2. Safe and reliable, low noise, characteristics hard, good starting, long life, etc.
3. It could be designed and produced according to your requests.

Delivery terms:

1, T/T in advance will be our popular payment terms.

2, We'd like to send you some samples for your close for your close inspectiong first.

3, We have detailed specifications. If you are interested in it, please write to me or talk me on TM.

Model	Voltage	Frequency	Current	Power	Speed	Class
YJ58-10	110/220 VAC	50-60 Hz	0.09 A	12.0 W	2400 RPM	E/B/F
YJ58-12	110/220 VAC	50-60 Hz	0.10 A	14.0 W	2800 RPM	E/B/F
YJ58-16	110/220 VAC	50-60 Hz	0.10 A	15.0 W	2300 RPM	E/B/F
YJ58-20	110/220 VAC	50-60 Hz	0.16 A	20.0 W	1750 RPM	E/B/F
YJ58-25	110/220 VAC	50-60 Hz	0.17 A	22.0 W	2400 RPM	E/B/F
YJ58-30	110/220 VAC	50-60 Hz	0.20 A	24.5 W	2500 RPM	E/B/F
YJ58-35	110/220 VAC	50-60 Hz	0.22 A	30.0W	2500 RPM	E/B/F

Products Discription :

Supply voltage: 110-240V AC; 50-60Hz; 110/220V 50-60Hz
Suitable Shaft Dia.:4 mm, Shaft length as your request
Stack size: Max dia: 58mm, thickness :8-35 mm;
Mounting size: M4, disctance of hole is 28mm,

Rotation from shaft extention : CW or CCW;
Lead wire: model and length are as your request
Bearing style:Sleeve bearing or Ball Bearing are both available;
Insulation Class: E / B / F
Protection type: Temperature protection
Sound level:≤45 dB(A);
Life:3000 Hours Min;

Note:
1. The available model is YJ5810,YJ5812, YJ5816, YJ5820, YJ5825, YJ5830.
2., Every model is three kinds, For example YJ5812, please see following:

Model	Supply Voltage	Speed level	Insulation Class	Input Power	Shaft design	Lead wire
YJ5812A	220v 50Hz	High /Low	E /B / F	as your request	as your request	as your request
YJ5812B	120V 60Hz	High /Low	E /B / F
YJ5812C	230V 50HZ/127V 60Hz	High	E /B / F

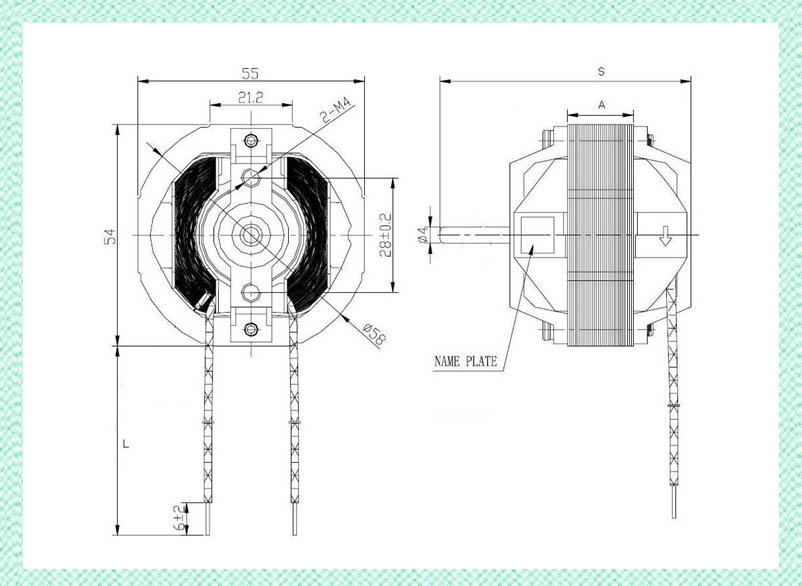

Drawing

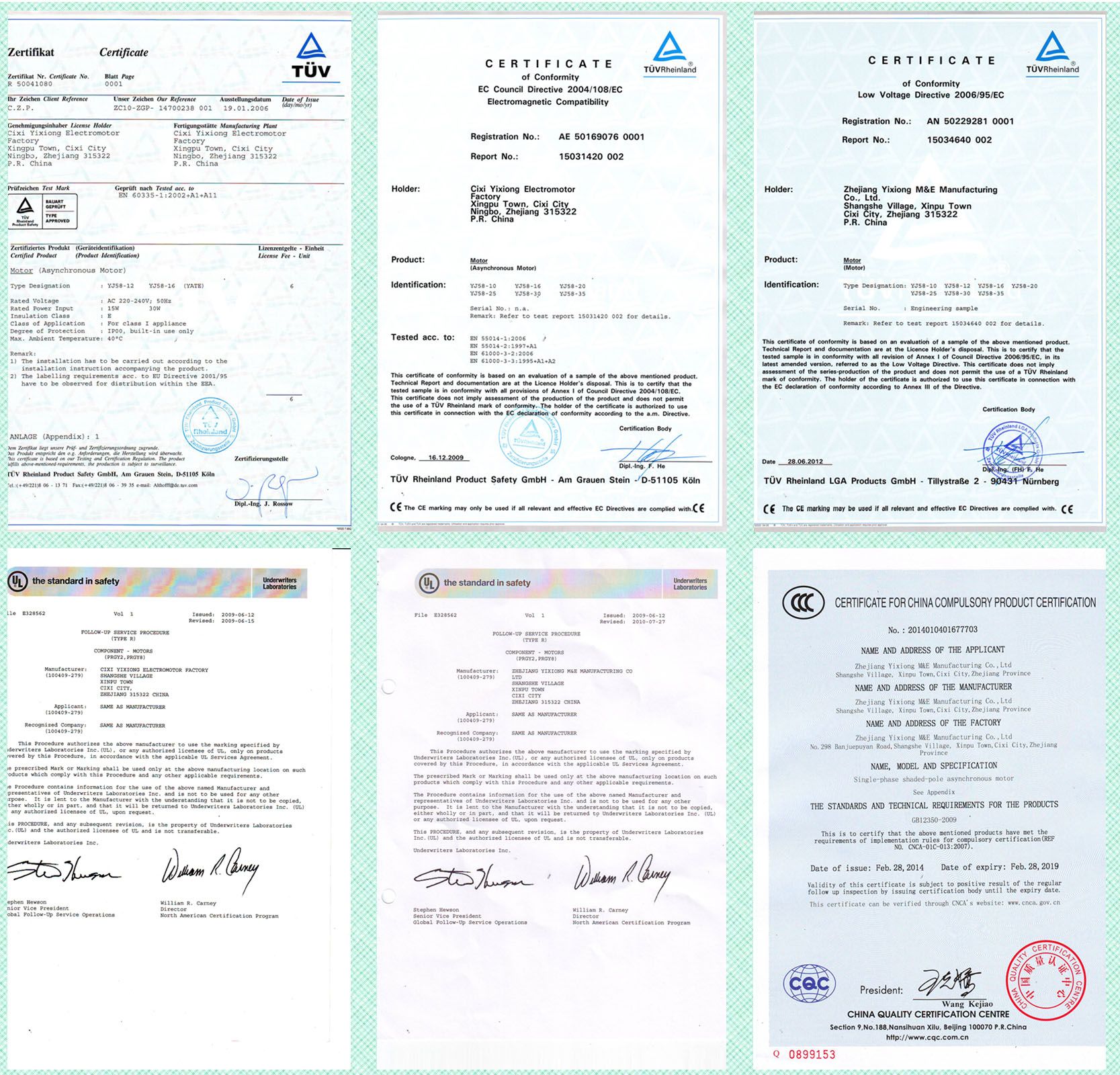

Certificate

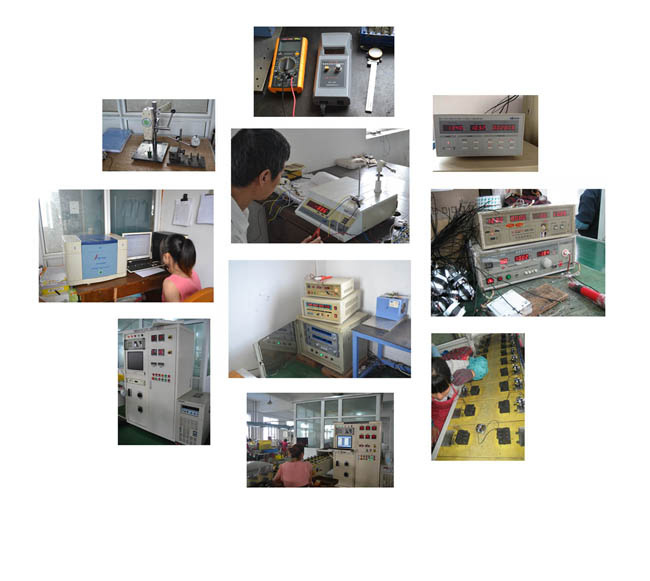

Inspection

Contact us

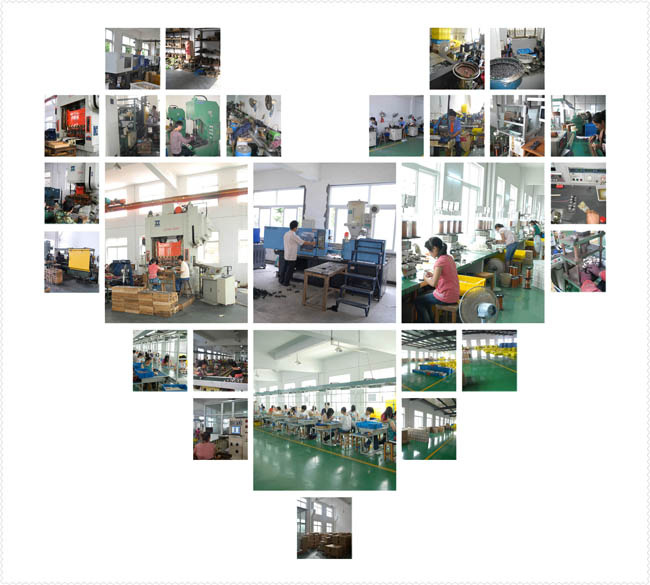

Established in 1990s, Zhejiang Yixiong M&E Manufacturing Co. Ltd is manufacturer specializing in Single Phase Shaded Pole Motor. Our products are widely applied in household appliances, ventilation systems and equipment of condensation etc.

We are located in Cixi, Ningbo, China, which is the second biggest household electrical appliances production base, 50 kilometers east from Ningbo Harbor, adjoining Shanghai by the longest sea-crossing bridge of the world----Hangzhou Bay Bridge in the north, with geographical superiority and easy of access. The area of factory is 20000 sq. M, and there are more 500 employees.

The company operates strictly in accordance with ISO9001-2000 "Quality Control System" from design to sales. Our products are approved CE, TUV, UL etc, and are sold to all parts of country at home, and export to Japan, Korea, America, Russia, Middle East, Europe, some country from Southeast Asia in a large amounts. We win believe in and support from our customer for good quality, reasonable prices, complete hospitality service, and have a well name.

More serve our god, we accept OEM/ODM plan in precision stamping parts, precision injection plastic, precision casting etc.
