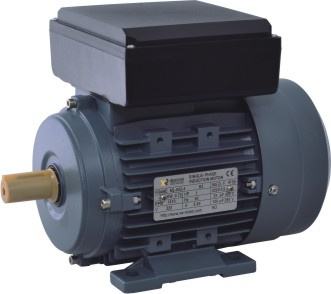

Single-Phase Asynchronous Motor

Prod Model:	ML/MC/MY
Application:	Household Appliances
Operating Speed:	High Speed
Number Of Stator:	Single-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	y-δ Starting
Brand:	Dayou
Species:	Ml/Mc/My
Certification:	Ce/UL/CSA/So14001/ISO18001
Number Of Poles:	2/4

Product Description

Product Application:
    Single-phase asynchronous motor is Low power asynchronous motor with Single-phase AC power supply (AC220V),It was made into a small motor mainly.  Small motor are widely used in all fields, Apply to most devices with higher starting torque.such as household appliances (washing machines, refrigerators, electric fans), power tools (such as hand drill), medical equipment, automated instruments and many other devices needing full-load start.
Main Features:
1) Dustproof and vermin resistant;
2) Quiet operation and Energy saving;
3) Easy installation(bolt on feet or brackets as required);
4) Corrosion resistant,Dependable,Superior life;
5) Reliable in City, Country or Factory  environments.
ALUMINUM HOUSING:
1)Conform to the IEC standard;
2)Be made of selected quality materials,new design in entirety;
3)Good performance,low noise,little vibration,safety and reliable operation;
4)Nice appearance,light weight;
5)Be maintained conveniently,simple construction;
6)Higher starting torque,2.5 times more than the rated torque.
MOTOR FEATURES:
1)ML/MC/MY are single phase aluminum motors;
2)ML is dual capacitors series;
3)MC is capacitors start series;
4)MY is capacitors run series;
5)ML and MC series are with centrifugal swith,which are suitable for high star torque application like air compressor;
6)MY series is mainly for low start torque application such as fan and pump;
7)This series motors are known as low temperature rise and low noise. IP55 protection, F-class insulation, B-level temperature rise, S1 duty rated, voltage 220V,50HZ.
Operating Conditions:ambient temperature -15ºC~40ºC,above sea level≤1000m.
MC Series:

Model	Output		Eff.(%)	Power factor	Speed(r/min)	Current(A)			Tmax/Tn	Tstar/Tn	Ist/IN (A)	Noise  dB(A)	Start current
	KW	HP				220V	230V	240V
MC7112	0.18	0.25	60.0	0.70	2780	1.95	1.86	1.79	2.2	3.0	12	70	75μF/250V
MC7122	0.25	0.34	62.0	0.72	2780	2.55	2.43	2.33	2.2	3.0	15	70	75μF/250V
MC8012	0.37	0.5	62.0	0.75	2800	3.62	3.46	3.32	2.2	2.8	21	75	100μF/250V
MC8022	0.55	0.75	65.0	0.77	2800	5.00	4.78	4.58	2.2	2.8	29	75	150μF/250V
MC90S2	0.75	1	68.0	0.78	2810	6.43	6.15	5.89	2.2	2.5	37	75	200μF/250V
MC90L2	1.1	1.5	70.0	0.78	2810	9.2	8.8	8.39	2.2	2.5	60	78	250μF/250V
MC100L1-2	1.5	2	72.0	0.79	2830	12.0	11.5	10.99	2.0	2.5	80	83	300μF/300V
MC100L2-2	2.2	3	73.0	0.79	2830	17.3	16.6	15.90	2.0	2.2	120	83	400μF/300V
MC112M2	3	4	74.0	0.80	2850	23.0	22.0	21.11	1.9	2.2	150	87	600μF/300V
MC7114	0.12	0.16	50.0	0.56	1380	1.95	1.86	1.79	2.2	3.0	9	65	50μF/250V
MC7124	0.18	0.25	53.0	0.60	1380	2.57	2.46	2.36	2.2	2.8	12	65	75μF/250V
MC8014	0.25	0.34	58.0	0.61	1400	3.21	3.07	2.94	2.2	2.8	15	65	100μF/250V
MC8024	0.37	0.5	62.0	0.62	1400	4.38	4.18	4.01	2.2	2.5	21	70	150μF/250V
MC90S4	0.55	0.75	66.0	0.66	1410	5.74	5.49	5.26	2.0	2.5	29	70	150μF/250V
MC90L4	0.75	1	68.0	0.70	1410	7.16	6.85	6.57	2.0	2.5	37	70	150μF/250V
MC100L1-4	1.1	1.5	71.0	0.71	1430	9.9	9.5	9.09	2.0	2.5	60	73	300μF/300V
MC100L2-4	1.5	2	73.0	0.72	1430	13.0	12.4	11.89	2.0	2.5	80	78	400μF/300V
MC112M4	2.2	3	74.0	0.73	1440	18.5	17.7	16.97	1.9	2.2	120	78	600μF/300V

MY Series:

Model	Output		Eff.(%)	Power factor	Speed(r/min)	Current(A)			Tmax/Tn	Tstar/Tn	Ist/IN (A)	Noise  dB(A)	Start current
	KW	HP				220V	230V	240V
MY5612	0.09	0.12	56.0	0.92	2740	0.79	0.76	0.73	1.6	0.65	2.5	70	4μF/450V
MY5622	0.12	0.16	60.0	0.92	2740	0.99	0.95	0.91	1.6	0.65	3.5	70	6μF/450V
MY6312	0.18	0.25	65.0	0.92	2760	1.37	1.31	1.25	1.6	0.50	5	70	8μF/450V
MY6322	0.25	0.34	66.0	0.92	2760	1.87	1.79	1.72	1.6	0.50	7	70	10μF/450V
MY6332	0.37	0.5	67.0	0.92	2760	2.73	2.61	2.50	1.6	0.45	10	75	12μF/450V
MY7112	0.37	0.5	67.0	0.92	2780	2.73	2.61	2.50	1.7	0.45	10	75	12μF/450V
MY7122	0.55	0.75	70.0	0.92	2780	3.88	3.71	3.56	1.7	0.40	15	75	16μF/450V
MY7132	0.75	1	72.0	0.92	2780	5.15	4.92	4.72	1.7	0.40	20	75	25μF/450V
MY8012	0.75	1	72.0	0.92	2810	5.15	4.92	4.72	1.8	0.35	20	75	25μF/450V
MY8022	1.1	1.5	75.0	0.95	2810	7.02	6.71	6.43	1.8	0.35	30	78	35μF/450V
MY8032	1.5	2	76.0	0.95	2810	9.44	9.03	8.66	1.8	0.35	45	83	45μF/450V
MY90S2	1.5	2	76.0	0.95	2830	9.44	9.03	8.66	1.8	0.33	45	83	45μF/450V
MY90L2	2.2	3	77.0	0.95	2830	13.7	13.1	12.53	1.8	0.33	65	83	60μF/450V
MY100L2	3	4	78.0	0.95	2850	18.4	17.6	16.87	1.8	0.30	75	83	80μF/450V
MY5614	0.06	0.08	50.0	0.90	1370	0.61	0.58	0.56	1.6	0.73	2	65	4μF/450V
MY5624	0.09	0.12	52.0	0.92	1370	0.86	0.82	0.78	1.6	0.60	2.5	65	6μF/450V
MY6314	0.12	0.16	57.0	0.92	1370	1.04	0.99	0.95	1.6	0.60	3.5	65	8μF/450V
MY6324	0.18	0.25	59.0	0.92	1370	1.51	1.44	1.38	1.6	0.55	5	65	10μF/450V
MY6334	0.25	0.34	61.0	0.92	1370	2.02	1.94	1.86	1.6	0.55	7	65	14μF/450V
MY7114	0.25	0.34	62.0	0.92	1390	1.99	1.91	1.83	1.7	0.45	7	65	14μF/450V
MY7124	0.37	0.5	62.0	0.92	1390	2.95	2.82	2.70	1.7	0.45	10	70	16μF/450V
MY7134	0.55	0.75	64.0	0.92	1390	4.25	4.06	3.89	1.7	0.40	15	70	25μF/450V
MY8014	0.55	0.75	64.0	0.92	1410	4.25	4.06	3.89	1.8	0.35	15	70	25μF/450V
MY8024	0.75	1	68.0	0.92	1410	5.45	5.21	5.00	1.8	0.35	20	70	30μF/450V
MY90S4	1.1	1.5	71.0	0.95	1420	7.41	7.09	6.80	1.8	0.33	30	73	40μF/450V
MY90L4	1.5	2	73.0	0.95	1420	9.83	9.40	9.01	1.8	0.33	45	78	45μF/450V
MY100L1-4	2.2	3	75.0	0.95	1430	14.0	13.4	12.87	1.8	0.30	65	78	80μF/450V
MY100L2-4	3	4	77.0	0.95	1430	18.6	17.8	17.09	1.8	0.30	75	78	90μF/450V
MY7116	0.18	0.25	55.0	0.90	920	1.65	1.58	1.52	1.5	0.45	5	62	16μF/450V
MY7126	0.25	0.34	57.0	0.92	920	2.17	2.07	1.99	1.5	0.45	7	62	20μF/450V
MY8016	0.37	0.5	58.0	0.92	920	3.15	3.01	2.89	1.6	0.35	10	67	20μF/450V
MY8026	0.55	0.75	62.0	0.92	920	4.38	4.19	4.02	1.6	0.35	15	67	25μF/450V
MY90S6	0.75	1	65.0	0.92	920	5.70	5.45	5.23	1.6	0.35	20	67	35μF/450V
MY90L6	1.1	1.5	67.0	0.92	920	8.11	7.76	7.44	1.6	0.35	30	73	50μF/450V

ML Series:

Model	Output		Eff.(%)	Power factor	Speed(r/min)	Current(A)			Tmax/Tn	Tstar/Tn	Ist/IN (A)	Noise  dB(A)	operation  current	Start current
	KW	HP				220V	230V	240V
ML6312	0.18	0.25	65.0	0.92	2710	1.37	1.31	1.25	1.6	2.5	8	70	10μF/450V	30μF/250V
ML6322	0.25	0.34	66.0	0.92	2710	1.87	1.79	1.72	1.6	2.5	10	70	12μF/450V	40μF/250V
ML7112	0.37	0.5	67.0	0.92	2780	2.73	2.61	2.50	1.7	2.5	15	75	12μF/450V	75μF/250V
ML7122	0.55	0.75	70.0	0.92	2780	3.88	3.71	3.56	1.7	2.5	20	75	16μF/450V	100μF/250V
ML8012	0.75	1	72.0	0.92	2800	5.15	4.92	4.72	1.8	2.5	30	75	20μF/450V	100μF/250V
ML8022	1.1	1.5	74.0	0.95	2800	7.11	6.80	6.52	1.8	2.5	40	75	30μF/450V	150μF/250V
ML90S2	1.5	2	75.0	0.95	2810	9.57	9.15	8.77	1.8	2.5	55	78	40μF/450V	200μF/250V
ML90L2	2.2	3	76.0	0.95	2810	13.9	13.2	12.70	1.8	2.2	75	78	50μF/450V	250μF/250V
ML100L2	3	4	78.0	0.95	2830	18.4	17.6	16.87	1.7	2.2	110	83	60μF/450V	400μF/300V
ML112M2	4	5.5	79.0	0.95	2850	24.2	23.2	22.21	1.7	2.2	150	83	60μF/450V	600μF/300V
ML6314	0.12	0.16	57.0	0.90	1350	1.06	1.02	0.97	1.6	2.5	6	65	8μF/450V	30μF/250V
ML6324	0.18	0.25	59.0	0.90	1350	1.54	1.47	1.41	1.6	2.5	8.5	65	12μF/450V	40μF/250V
ML7114	0.25	0.34	61.0	0.92	1380	2.02	1.94	1.86	1.7	2.5	10	65	12μF/450V	50μF/250V
ML7124	0.37	0.5	62.0	0.92	1380	2.95	2.82	2.70	1.7	2.5	15	70	16μF/450V	75μF/250V
ML8014	0.55	0.75	68.0	0.92	1400	4.00	3.82	3.66	1.8	2.5	20	70	20μF/450V	100μF/250V
ML8024	0.75	1	70.0	0.92	1400	5.29	5.06	4.85	1.8	2.5	30	70	25μF/450V	100μF/250V
ML90S4	1.1	1.5	71.0	0.95	1410	7.41	7.09	6.80	1.8	2.5	40	73	35μF/450V	150μF/250V
ML90L4	1.5	2	73.0	0.95	1410	9.83	9.40	9.01	1.8	2.5	55	73	40μF/450V	200μF/250V
ML100L1-4	2.2	3	75.0	0.95	1430	14.0	13.4	12.87	1.8	2.2	75	78	50μF/450V	300μF/300V
ML100L2-4	3	4	77.0	0.95	1430	18.6	17.8	17.09	1.8	2.2	110	78	60μF/450V	500μF/300V
ML112M4	4	5.5	78.0	0.95	1440	24.5	23.5	22.49	1.7	2.2	150	83	60μF/450V	600μF/300V
