Single Phase Automatic Voltage Regulator Switching Power Supply
| Price: |
US $ 554/Piece |
| Trade Terms: |
FOB,CIF,FCA |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
avr |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Current Type: |
AC |
| Phase: |
Single Phase |
| Usage: |
DBW |
| Frequency: |
Industrial Frequency |
| Frequency Characteristics: |
50Hz/60Hz |
| Brand: |
Kewang |
Product Description

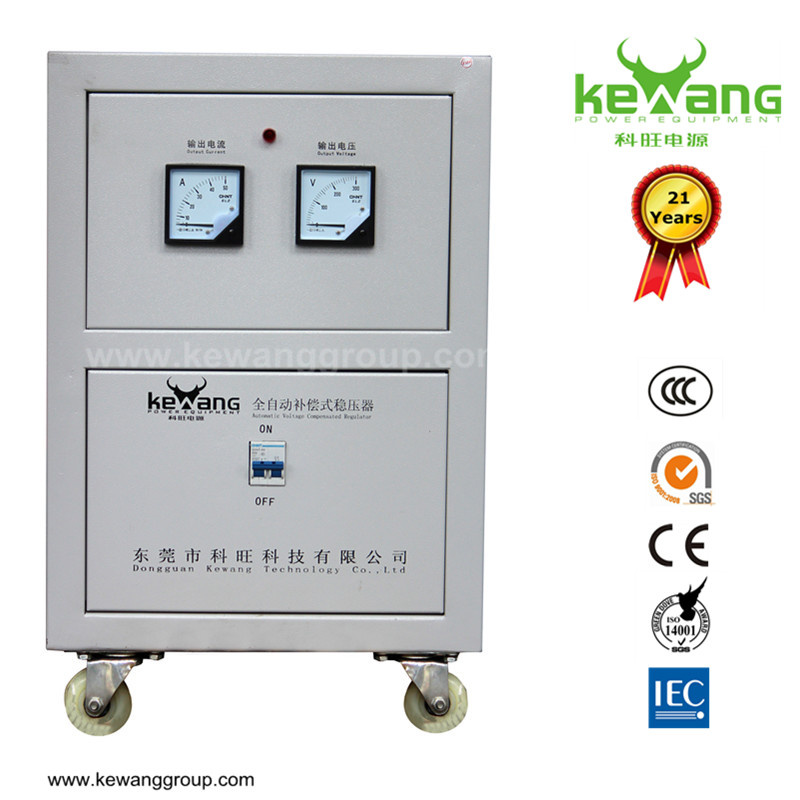

AC Power Single Phase Automatic Voltage Regulator to CNC MachineWorking principle
Advanced technology of voltage compensation adopted,Automatic voltage compensated regulator series samplings its output voltage via control system according to preset voltage precision to stabilize output voltage;Application
Apply to varied precision machines and instruments, test equipments electric equipments, lightings, prodution lines, schools,hotels,hospitals,railwaws, science R&D institutions, and so on.
Main features
Large capacity;
High efficiency;
Infinitely variable voltage regulation;
No additional waveform distortion;
Simple operation;
PARAMETERS| Input voltage | Three-phase 323-437V | Single phase 187-253V |
| Output voltage | Three-phase 380V | Single phase 220V |
| Voltage precision | ±2~5 |
| Efficiency | >=96% |
| Response Time | <=0.5S |
| Frequency | 50Hz/60Hz |
| Waveform Distortion | <1% |
| Ambient Temp | (-10ºC~+40ºC) |
| Relative Humidity | <90% |
| Dielectric Strength | 2000VMin | 1500V Min |
| Insulation Resistance | >5ΜΩ |
SPECIFICATION(ONLY FOR REFERENCE)| Model | Capacity(KVA) | Phase | Dimension(W×D×H)mm | N.W(kg) | Cabinet |
| SBW-6 | 6 | 3 | 430×480×760 | 48 | 1 |
| SBW-10 | 10 | 3 | 430×480×760 | 65 | 1 |
| SBW-15 | 15 | 3 | 430×570×760 | 75 | 1 |
| SBW-20 | 20 | 3 | 450×500×1100 | 130 | 1 |
| SBW-30 | 30 | 3 | 450×500×1100 | 150 | 1 |
| SBW-45 | 45 | 3 | 450×550×1260 | 163 | 1 |
| SBW-60 | 60 | 3 | 450×550×1260 | 192 | 1 |
| DBW-3 | 3 | 1 | | | 1 |
| DBW-5 | 5 | 1 | | | 1 |
| DBW-10 | 10 | 1 | | | 1 |
| DBW-15 | 15 | 1 | | | 1 |
| DBW-20 | 20 | 1 | | | 1 |
| DBW-30 | 30 | 1 | | | 1 |
BRIEF VIEW OF KEWANG GROUP
BENEFITS
Manufactured in an ISO 9001: 2008 certified plant
High efficiency, high safety, high reliability
Output power tolerance of +/-3%
25-year limited warranty on power output, 5-year limited warranty on materials and workmanship
KEWANG'S ADVANTAGES
1) Excellent quality, competitive price, prompts delivery, on-time service and good reputation.
2) Fast sample delivery
3) Low minimum order
4) Fast shipment in 15~20 days on receipt of your payment.
5) We handle all the components needed for utility-connected systems, or for powering independent homes and remote industrial sites.
6) We offer knowledgeable tech support before and after the sale.
7) We manufacture the complete line of Voltage stabilizer ranging from 3kVA to 2500kVA with CE approval, offering the full capacity, Voltage stabilizer are as efficient as other competitors, but far cheaper-without skimping on quality.
Our TeamWe possess a team of 700 with highly skills and experiences, and this make it possiable to achieve the firm's predefined goals and reach the targets. These professionals, of whom half are with a bachelor degree or more, are recruited on the basis of their skills and ability to perform. To manage their operations, in the most efficient and effective manner, the team has been sorted into a number of highly operational units. In addition to this, the professionals are trained on a highly regular basis, for reasons of keeping them at par with the ever changing market.Why UsWe are amongst the leading manufacturers, suppliers and exporters of this highly commendable range of Industrial Machinery. To live up to this market standing, we engage in the utilization of high grade raw materials and modern machines, in compliance with the set industry norms and guidelines. This ensures the product's performance, capacity, strength and service life. In addition to this, the range is made available in the market at the most reasonable rate possible and is delivered in the timeliest manner.InfrastructureThe highly advanced infrastructural facility at Electro Magnetic Industries, has been laced with all the necessary machinery and equipment, which helps us in the attainment of a number of the firm's predefined goals and targets. For reasons of attaining smoother and effective management of the firm's operations, the facility has been parted into several highly operational units. In addition to this, the facility is regularly upgraded, for reasons of attaining a better position in the market.Quality AssuranceTo us at Electro Magnetic Industries, providing quality is something of high importance. Thus we engage in the utilization of high grade raw materials and modern machines, as per the norms and guidelines of the industry. This ensures the product's performance and longer service life. in addition to this, the offered range is known to be processed through several rounds of quality examinations, where all manufacturing defects are eliminated with high level of precision and quick response. .FAQQ1: What about the Guarantee? A: 12 months (for free) from the date of B/L.Warning:1). The efficiency of our Voltage Regulators / Stabilizers are 90% to 95% (some series of them reaches 95%), please don't let them work overload!2). Please make sure that all the electric wires are connected correctlyaccording to the electric diagram! Q2: Can we put/show our own Logo on your products? A2: Yes, no problem, We do OEM to customers oversea (not for Chinese customers). Q3: For your products, can we take our Favourite Colours? A3: Yes. But we need certain quantity ,any colors or types are avariable as you like. Q4: Is OEM/ODM available?A4: Yes, it is! Customized products are provided. Q5: How about the Packing?A5:All exported goods are packed with wooden cases, other kinds of case are also avriable as requried. Q6: How about the Delivery Time?A6: In generally, it takes 3 days to produce the goods after deposit or L/C. Q7: What is your monthly output? A7: 6000pcs (products below 1KVA are not counted). Q8: What is the MOQ?A8: For the small capacity products (Automatic Voltage Regulators/Stabilizers below 5KVA ) of the default configuration, it is 5 sets. For the big capacity products, it is 1 set. Q9: How about the Delivery Terms?A9: By sea or by air or by road, FOB ,CFR, CIF, etc. any is acceptable .Besides, some items can be sent by international express, such as DHL,TNT,UPS,EMS, Fedex, etc. Q10: Can you offer Form A or Form E or C/O ? A10: Yes, no problem, we can apply for it from our local government. Q11: I would like to know your Certificates?A11: ISO9001:2008 ( Register Number : UQ110457R0) (Website :www.uicc-web.com) ISO14001:2004 ( Register Number :UE120063R0) (Website :www.uicc-web.com) CE can made according to customers' requirements Fifth-Class Qualification of Transmission and Distribution projects. License of Telecom Equipments Network (issued No. 25-4751-011468) Member of CPSS (ZHGT ZI No. 654) High-Tech Enterprise Q12 :And patents too1.)Patent Name : UPS power with dual core isolation transformer leakage inductance Patent Number : ZL200420095777.22.) Patent Name : Three-phase UPS load output isolation transformer balanced structure Patent Number : ZL200520067082.83.) Patent Name : Adjustable Precision winding mode for the square core transformer and reactor coils Patent Number : ZL201220003826.X4.) Patent Name : An improved three phase shift reactor Patent Number : ZL201220004052.25.) Patent Name : An improved phase-shifting rectifier transformer Patent Number : ZL201220035747.76.) Patent Name : Oblique laminations for transformer means sewn directly or reactor core in square Patent Number : ZL201220035746.27.) Patent Name : An easy cooling coil transformers and reactors Patent Number : ZL201220202948.18.) Patent Name : A co-yoke filter reactor Patent Number : 201,210,144,509.49.) Patent Name : PV isolation transformer cores for tensioning devices Patent Number : ZL201320174097.910.) Patent Name : Winding mold for photovoltaic reactor with iron core Patent Number : ZL201320174024.X11.) Patent Name : Parking solar charging station Patent Number : ZL201220732233.712.) Patent Name : An inverter PV filter reactor coils Patent Number : 201,320,816,933.913.) Patent Name : For transformer or reactor coil end insulating structure Patent Number : 201,320,817,109.5
Kewang Group is one of the largest professional provider and leader in the new energy and power distribution filed in China whose business covers power devices for Wind power, Solar power, and Natural Gas Energy. It's dedicated to R&D, manufacturing, sales & engineering of high/ low voltage transmission, distribution devices & related power devices. Moreover, it provides integrated solutions for enterprises power supply, data center, and distributed new energy. Kewang has been serving for royal customers over 40 countries, with recognized good quality & professional service.
As a leading power supply company, Kewang Group had taken the lead to be qualified with the ISO9001 quality system certification & ISO14001 environment system certification, and the CCC China mandatory certification. Our products are qualified with European CE certification and American UL certification. We had taken 11 projects nominated by the local government: 4 of which had won government's scientific prizes, and over 30 patents had been achieved. We keep consistent cooperation with South China University of Technology and Wuhan University. With the introduction of high class technical talents, we integrate various resources for R&D, quality& management improvement-- these cooperation enable us to set up strong advantages in techniques, talents & brand promotion.
Product line:
1. Customized Transformer & Reactor for application of UPS, PV Inverter, Electrical Car Station, etc.
2. RlS Series Contactless Intelligent type Voltage Stabilizer
3.1kw-5kw Smart Solar Energy Storage System with built in Inverter and Battery
4. DBW/SBW Dry type Voltage Regulator
5. SE series Air-cooled Transformer
6. UPS
7. Generator Set
