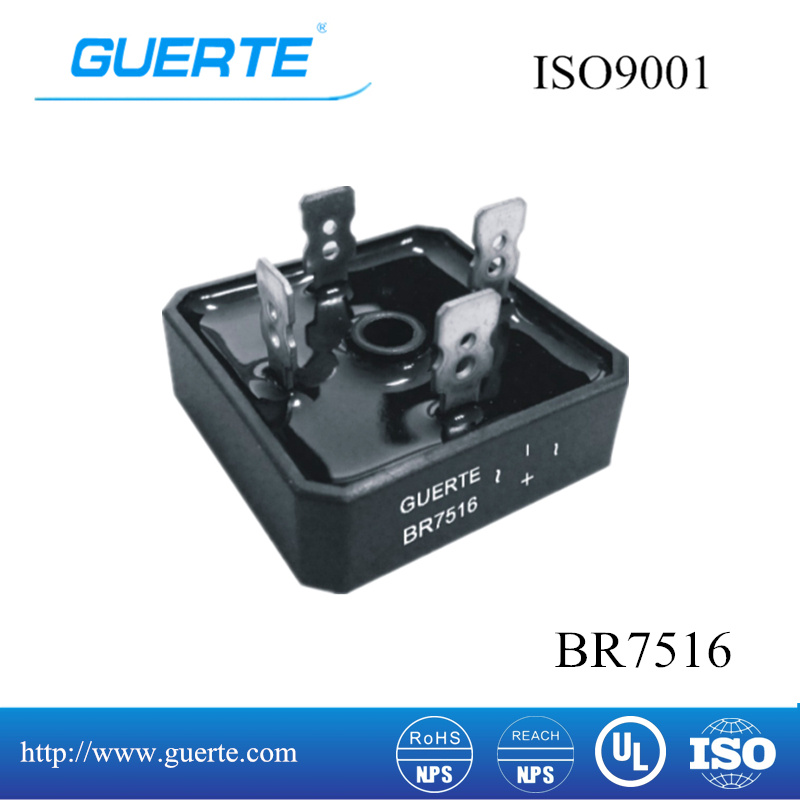

Single Phase Bridge Rectifier Br 75A 1600V with ISO9001
| Price: |
US $ 2.4-2.5/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
BR7516 |
| Application Area: |
Power Supply, Input Rectifier, Welding Machine |
| Model Number: |
Br7516 |
| Brand Name: |
Guerte |
| Batch No.: |
2017+ |
| Current: |
75A |
| Voltage: |
600V-1600V |
| Package Type: |
Standard |
| Warranty Period: |
12 Month |
| Certificate: |
ISO9001: 2015 |
| Manufacturing Technology: |
Logic IC |
| Material: |
Element Semiconductor |
| Type: |
Intrinsic Semiconductor |
| Package: |
DIP(',Dual In-line Package) |
Product Description

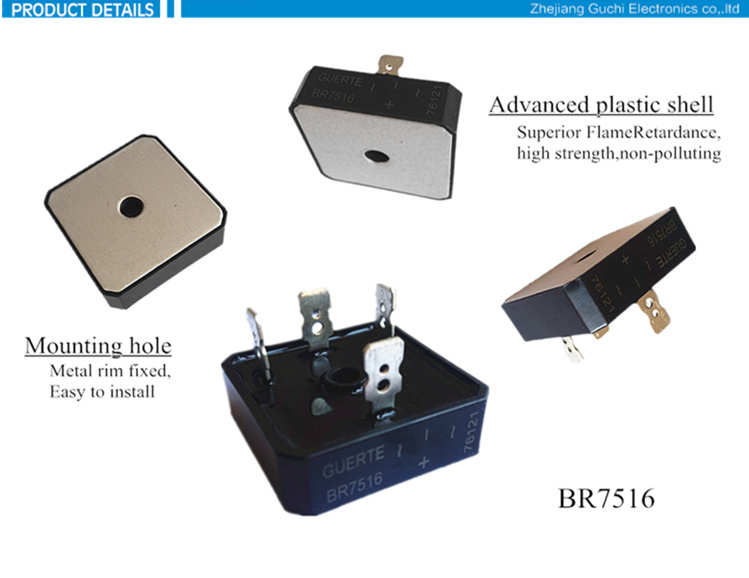

BR75A Single Phase Bridge Rectifier
Feature:
1.Low forward voltage drop
2.Isolation voltage 2000V~
3.Small volume, light weight
4.Low thermal resistance, high heat-conductivity, low temperature rise
Application:
1.Power supply for DC power device
2.Input rectifier for PWM converter
3.Inverter welding machine | Symbol | Parameter | Rating | Unit |
| BR |
| 7514 | 7516 |
| VRRM | Peak reverse repetitive voltage | 1400 | 1600 | V |
| VRSM | Peak reverse non-repetitive voltage | 1700 | 1700 | V |
| Symbol | Parameter | Test Condition | Rating | Unit |
| IF(AV) | Forward average current | 180°sine half-wave 50Hz single-sided heat dissipation TC=78ºC | 75 | A |
| IFSM | Forward surge current | t=10ms,50Hz,sin,Tjm | 750 | A |
| I2t | I2t value | | 2812 | A2S |
| VISO | Isolation voltage | 50Hz,R.M.S,t=1min,Iiso:1mA(max) | 2000 | V |
| Tj | Operating junction temperature | | -40 to +150 | ºC |
| Tjm | Rated junction temperature | | 150 | ºC |
| Tstg | Storage temperature | | -40 to +125 | ºC |
| Md | Mounting torque M5 | | 2 | N·m |

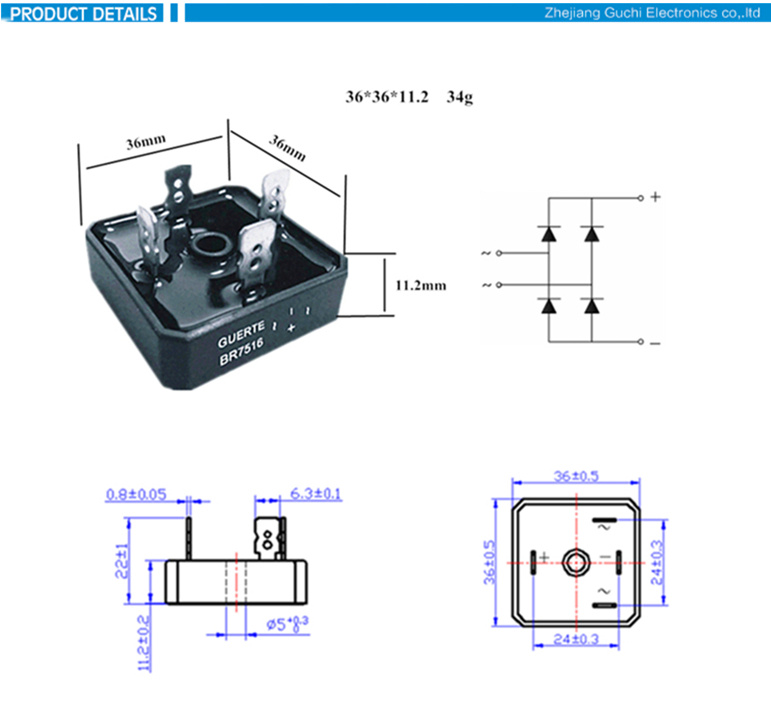

| Wt | Weight | | 34 | g |
1. Company Introduction
Establishment from the year 1995, Zhejiang Guchi Electronics Co., Ltd. Has developed into a national high-tech enterprise specializing in researching, production and selling of semiconductor components. With headquarter located in south-west of Zhejiang province, our employees reach upto 230; We have sales offices in Shenzhen and Chongqing, as well as other sales representatives all round, which gives us advantages of quick response to our customers from every area. Convenient transportation with CHR ways to nearby airports including Shanghai Hongqiao, Shanghai Pudong Int'l, Hangzhou Xiaoshan, Yiwu and Wenzhou.
We are a professional manufacturer of diodes(ranges from 10-100A 600-1000V), single-phase and three-phase bridge rectifiers(ranges from 10-55A 200-1000V) and power modules(ranges from 25-800A 600-2500V) with brand GUERTE, including bridge rectifier, thyristor module, diode module, three-phase module, fast recovery module, three-phase module (MDA, MDC. MDK, MTC, MTA, MTK, MFC, MFA, MFK, MDS, MDQ, PDSA, PFSB, PFQA, PFQB, MFQ, MDST, MDY, MDG, MXY, MXG, MD, MT, MUR, MBR, UDA, UBA, etc. ).
Our products are widely used on frequency inverters, welding machines, UPS power supply, wind-driven generators, commercial induction cooker, battery charger, and so on. We have gained a good reputation from our customers both domestic and abroad, esp. In India, Asia and European market.
2. Patent Certificates
50 National Patents, including 1 invention patent, 35 utility model patents and 14 design patents ISO9001: 2015 Quality Management System
RoHS Certified
Product covered by UL Certification
3. Development Status
From recent years of automatic level improving, our sales revenue increases a stable 20% by year, which solid market share for GUERTE brand within this field.
4. Market Promotion
Every year we participate exhibitions local and abroad, such as:
Electronica exhibitions in Germany/India/local;
Essen welding fair in Germany/India/local;
Industrial automation fair in Germany/local
We highly value our quality, brand and reputation. Currently our products are exported to 28 countries or regions, such as Asia, Europe, South America, North America and Australia, and have won the recognition and trust of customers at home and abroad.
5. Company History
In 1995, established Jinyun Silicone Components, and started producing diode chips
In 2002, moved to current building, and started with bridge rectifier and power modules
In 2009, established Zhejiang Guchi Electronics, and provided GUERTE brand good products and service
In 2013, set a provincial research center, and improved overall automatic level
In 2015, capability figures: Bridge rectifiers reach to18KK PCS/Y, modules reach to 1KK PCS/Y
In 2017, move to new plant covering 23000 with construction area over 30000
