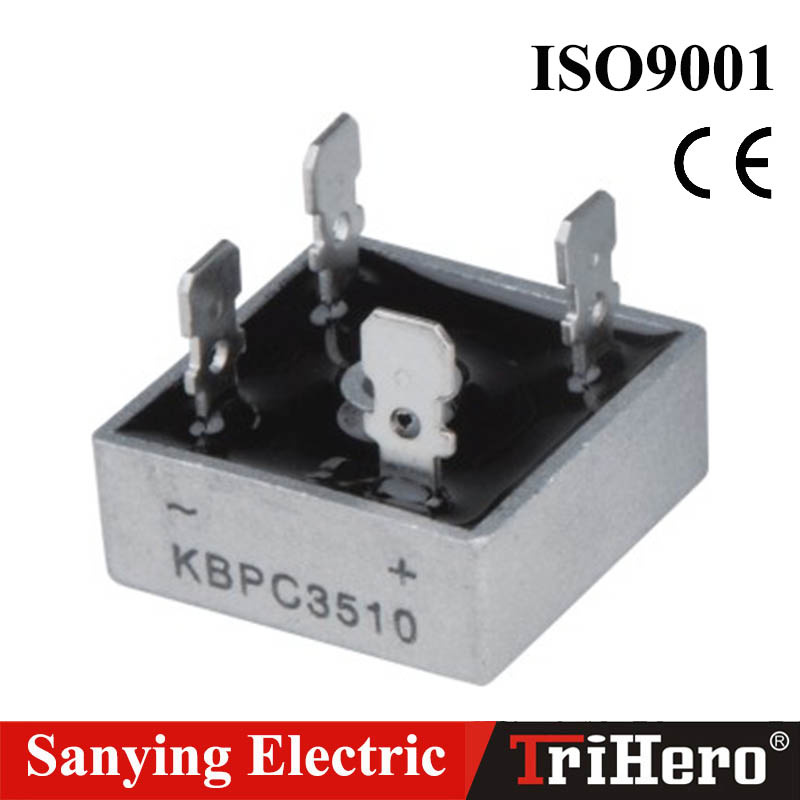

Single Phase Bridge Rectifier (KBPC3510)

Name: Single Phase Bridge Rectifier (KBPC3510)
Brand: all-electronics-online.com
SKU: 648122425
Availability: InStock
Rating: 5 (77 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	KBPC3510
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	100-1600
Current:	5A-300A
Warranty:	2 Years
Insulation Voltage:	2500V
Manufacturing Technology:	Logic IC
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Model:	Kbpc3510
Brand:	Trihero/OEM

Product Description

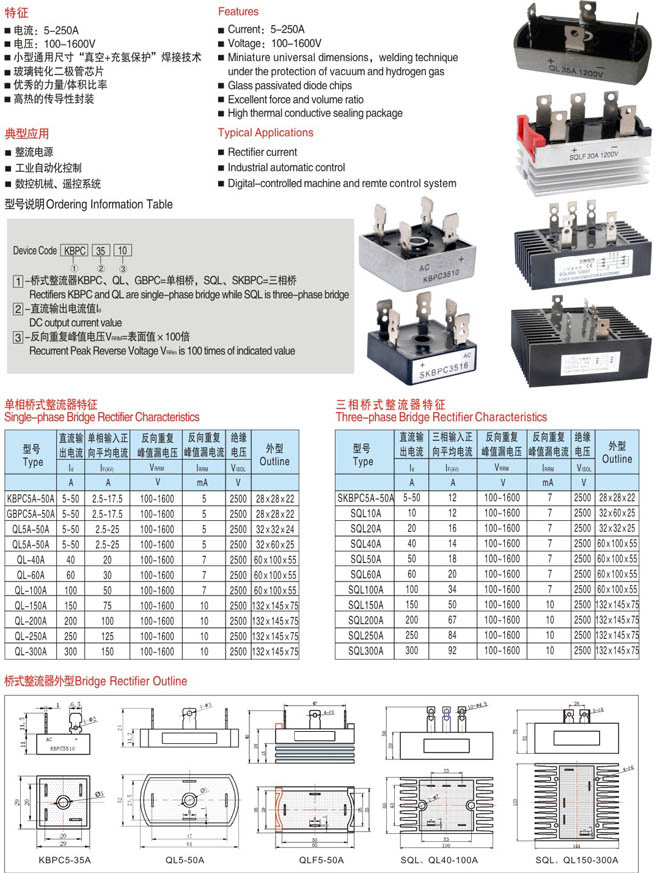

Single phase Bridge Rectifier (KBPC)

Features:
1.Current: 5-300A
2.Voltage: 100-1600V
3.Miniature universal dimensions, welding technique under the protection of vacuum and hydrogen gas;
4.Glass passivated diode chips;
5.Excellent force and volume ratio;
6.High thermal conductive sealing package.

Typical Applications:
Rectifier power supply;
Industrial automatic control;
Digital-controlled machine and remote control system.

Ordering information table:
Device Code: KBPC 35 10
1. Rectifiers KBPC, QL=single-phase bridge, SQL=three-phase bridge
2. DC output current value
3. Reverse repeat peak voltage Urrm = indicated value x 100

Spec. Of single-phase bridge rectifiers:

Type	Id	IF(AV)	Urrm	Irrm	VISOL	Size
Type	A	A	V	A	V	mm
KBPC5A-35A	5~35	2.5~17.5	100~1600	5	2500	28x28x22
KBPC50A	50	2.5~25	100~1600	5	2500	32x32x24
QL 5A-50A	5~50	2.5~25	100~1600	5	2500	32x60x25
QL 40A	40	20	100~1600	7	2500	60x100x55
QL 60A	60	30	100~1600	7	2500	60x100x55
QL 100A	100	50	100~1600	7	2500	60x100x55
QL 150A	150	75	100~1600	10	2500	132x145x75
QL 200A	200	100	100~1600	10	2500	132x145x75
QL 250A	250	125	100~1600	10	2500	132x145x75
