Single Phase DC AC Micro Inverter 300W
| Price: |
US $ 30-32/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
CZ-300S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
CZ-300S |
| Rated Power: |
300W |
| Input Voltage: |
12V/24/36/48V/96V/110V |
| Output Voltage: |
100-120V/220-240V |
| Output Socket: |
7types for Option |
| Phase: |
Single |
| Type: |
DC/AC Inverters |
| Power Source: |
Solar Power |
| Output Power: |
300W |
| Application: |
Solar/Wind/Home/Office Power System |
| Brand: |
Yom |
Product Description
Product Details:
Place of Origin: Zhejiang, China (Mainland)
Brand Name: Yom
Model Number: CZ-300S
Output Power: 300W
Output Type: Single Phase
Machine Size: 20*10.5*6cm
Machine Weight: 0.86kg
Efficiency: 90%
Cooling Way: intelligent Cooling Fan
Certificates: CE & RoHs & ISO9001
On/Off Grid: off grid
Waveform: Pure sine wave
Working Temperature: -30C~+50C
AC Regulation: THDC3%
Technical parameters:| Model | CZ-150S | CZ-300S |
| Input | DC voltage | 12V | 24V | 48V | 110V |
| Voltage range | 10-16VDC | 20-33VDC | 40-63VDC | 90-130VDC |
| No load current draw | 0.7A | 0.4A | 0.2A | 0.1A |
| Efficiency | >90% |
| DC connection | Cables With Clips or Car Adaptor |
| Output | AC voltage | 100/110/120VAC or 220/230/240 VAC |
| Continuous power | 150W | 300W |
| Surge power | 300W | 600W |
| Waveform | Pure sine wave |
| Frequency | 50Hz or 60Hz |
| AC regulation | 3% |

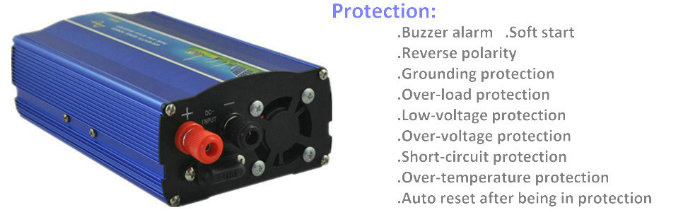

| Protection | Low voltage alarm | 10.5DC±0.5V | 21DC±1V | 42VDC±1V | 96VDC±3V |
| Low voltage shut down | 10DC±0.5V | 20DC±1V | 40VDC±1V | 90VDC±3V |
| Short circuit | Shut off output automatically |
| Over load | Shut off output |
| Over voltage shut down | 16±0.5V | 33±1V | 63±1V | 130±3V |
| Over thermal | Shut off output automatically |
| Environment | Working temperature | between -10ºC and +50ºC |
| Working humidity | 20%~90%RH |
| Storage temperature | between -30ºC and +70ºC |
| Package | Machine size(mm) | 180*105*60 | 200*105*60 |
| Packing size(mm) | 275*160*113 |
| Net weight(kg) | 0.86 |
| Gross weight(kg) | 1.13 |
| Packing mode | Carton packaging |
| Other | Start | Soft start |
| Cooling ways | Intelligent cooling fan |
Custom-made available:
Except for the regular DC input voltages: 12V, 24V, 48V, we also could provide customized DC input voltages: DC 36V,DC 60V,DC 72V,DC 84V,DC 96V,DC 110V,DC 120V,DC 220V. |
Product Features:1. The safety of shock
2. The original constant power technology
3. Battery over-discharge alarm protection
4. Before and after class isolation technology
5. CPU core SPWM pulse width control technology
6. Doesn't affect the working life of electrical equipment
7. The installation of the MOS transistor anti-reverse technology
8. The original level of before and after the double soft-start technology
9. Components with high-quality original, ensure products with high quality.
10. With small, light weight, high efficiency, low distortion, no-polluting, low noise, aluminum alloy shell, surface blasting anodic oxidation treatment, high hardness, beautiful appearance Applicable for: --Solar electric energy generation;
--Wind power generation;
--Communication equipment;
--Industrial intellectual control system;
--Small sized emergency power supply system;
--Travel set equipment, industrial equipment, office equipment, kitchen equipment, household electrical equipment, power tools and so on; Product Description:Connect Yom 300w pure sine wave inverter with battery terminals, then you can get AC power for your appliances. Or connect Yom dc to ac power inverter with solar panel and controller, then you can get AC power for your appliances from solar power.
Yom DC to AC 300W pure sine wave power inverter offering superior superior quality true sine wave output, it is designed to operate popular power tools and sensitive loads.Packaging details:1pcs/box,unit box size27.5*16*11.3cm,N.W0.86kg, G.W1.13kg
10pcs/CTN, carton size61.5*29*34.5cm, N.W11.0kg, G.W13.0kg Delivery details:About bulk order, it's up to your quantity, almost within 30days.
About sample, it's within 5 days.Payment and Shipping: 1. We accept T/T, Paypal, Western Union;
2. For sample, it's better via Paypal or Western Union; For quantity order, we can go for T/T;
3. For small order, we usually transport by express like FedEx, DHL, TNT, EMS.
For big order, we can ship by air or by sea.
Our Service:1. The good construction warranty-2years
2. Your client satisfied on the right schedule and quality
3. You can get a good reputation from your market and obtain more orders
4. Our professional service before and after sale
5. The reasonable price
6. Any query from you are welcome and will be replied within 24 hours.
