| Prod Model: |
YC 70-132 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
220V |
| Rated Frequency: |
50Hz-60Hz |
| Protection Class: |
IP44 |
| Insulation Class: |
B |
| Duty: |
S1(Continuous |
| Bearing: |
Domestic and SKF, NSK, NTN |
| Number Of Stator: |
Single-Phase |
| Application: |
Industrial |
| Casing Protection: |
Closed Type |
| Rotor Structure: |
Winding Type |
| Starting Mode: |
Capacitor-Start Single Phase Asynchronous Motor |
| Species: |
Yc Series, Single Phase |
| Operating Speed: |
Speed 1500r/Mi, 3000r/Min |
Product Description

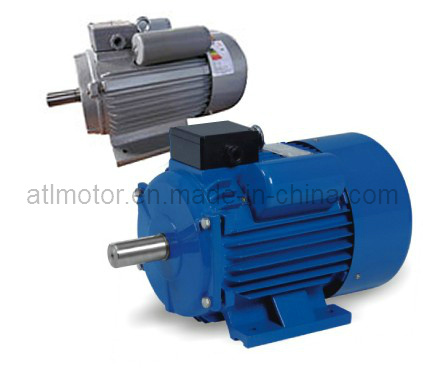

YC series heavy-duty single-phase capacitor start asynchronous motor is suitable for driving small lathe, pumps, only the family of single-phase power, the workshops where applicable. This series motors adopt advanced technology design, suitable for high-quality materials, with beautiful appearance, performance, advanced, convenient, reliable operation and maintenance, in line with the relevant provisions of the ICE standard.
YC series motors are totally enclosed fan cooled 3HP the following, the output capacitor start, 50Hz rated voltage starting torque greater than 3 times, the 60Hz than 2.75 times, the output power the 4HP above, capacitor start, running, and concentrated start torque, smooth running, low temperature, low noise and greater overload performance.
Type |
Output |
Current
A |
r/min |
Eff.% |
P.F |
Tst
TN |
Ist
IN |
Tmax
TN |
|
kW |
HP |
|
YC711-2 |
0.18 |
1/4 |
1.9 |
0.70 |
63.0 |
2800 |
3.0 |
6.5 |
2.0 |
|
YC712-2 |
0.25 |
1/3 |
2.4 |
0.72 |
65.0 |
2800 |
3.0 |
6.5 |
2.0 |
|
YC80A-2 |
0.37 |
1/2 |
3.5 |
0.74 |
66.0 |
2840 |
3.0 |
6.5 |
2.0 |
|
YC80B-2 |
0.55 |
3/4 |
5.04 |
0.74 |
67.0 |
2850 |
3.0 |
6.5 |
2.0 |
|
YC80C-2 |
0.75 |
1 |
6.68 |
0.75 |
68.0 |
2850 |
3.0 |
6.5 |
2.0 |
|
YC90S-2 |
1.1 |
1.5 |
8.93 |
0.80 |
70.0 |
2850 |
2.8 |
7.0 |
2.0 |
|
YC90L-2 |
1.5 |
2 |
11.4 |
0.82 |
73.0 |
2870 |
2.8 |
7.0 |
2.0 |
|
YC100L-2 |
2.2 |
3 |
16.5 |
0.82 |
74.0 |
2900 |
2.5 |
7.0 |
2.0 |
|
YC112M1-2 |
3 |
4 |
21.4 |
0.84 |
76.0 |
2900 |
2.2 |
7.0 |
2.0 |
|
YC112M2-2 |
3.7 |
5 |
24.8 |
0.86 |
79.0 |
2900 |
2.2 |
7.0 |
2.0 |
|
YC711-4 |
0.12 |
1/6 |
1.9 |
0.58 |
48.0 |
1400 |
3.0 |
6.0 |
2.0 |
|
YC712-4 |
0.18 |
1/4 |
2.7 |
0.60 |
50.0 |
1400 |
3.0 |
6.0 |
2.0 |
|
YC80A-4 |
0.25 |
1/3 |
3.52 |
0.62 |
50.0 |
1400 |
3.0 |
6.0 |
2.0 |
|
YC80B-4 |
0.37 |
1/2 |
4.69 |
0.64 |
56.0 |
1400 |
3.0 |
6.0 |
2.0 |
|
YC80C-4 |
0.55 |
3/4 |
6.0 |
0.65 |
60.0 |
1400 |
3.0 |
6.0 |
2.0 |
|
YC90S-4 |
0.75 |
1 |
7.5 |
0.72 |
63.0 |
1400 |
2.8 |
6.5 |
2.0 |
|
YC90L-4 |
1.1 |
1.5 |
10.4 |
0.72 |
67.0 |
1420 |
2.8 |
6.5 |
2.0 |
|
YC100L-4 |
1.5 |
2 |
13.0 |
0.73 |
72.0 |
1440 |
2.8 |
6.5 |
2.0 |
|
YC112M-4 |
2.2 |
3 |
18.5 |
0.74 |
73.0 |
1450 |
2.5 |
6.5 |
2.0 |
|
YC132S1-4 |
3 |
4 |
22.4 |
0.80 |
76.0 |
1450 |
2.2 |
6.5 |
2.0 |
|
YC132S2-4 |
3.7 |
5 |
26.0 |
0.82 |
79.0 |
1450 |
2.2 |
6.5 |
2.0 |
Type |
Output |
Current
A |
r/min |
Eff.% |
P.F |
Tst
TN |
Ist
IN |
Tmax
TN |
|
kW |
HP |
|
YCL90S-2 |
1.1 |
1.5 |
7.2 |
0.95 |
73.2 |
2880 |
2.8 |
6.0 |
1.8 |
|
YCL90L-2 |
1.5 |
2 |
8.9 |
0.97 |
76.0 |
2900 |
2.8 |
7.0 |
1.8 |
|
YCL100L-2 |
2.2 |
3 |
13.2 |
0.96 |
78.8 |
2900 |
3.0 |
6.5 |
1.8 |
|
YCL90S-4 |
0.7 |
1 |
5.0 |
0.93 |
73.3 |
1450 |
2.8 |
6.5 |
1.8 |
|
YCL90L-4 |
1.1 |
1.5 |
7.8 |
0.90 |
75.0 |
1450 |
2.5 |
6.0 |
1.8 |
|
YCL100L-4 |
1.5 |
2 |
9.3 |
0.92 |
79.4 |
1450 |
2.8 |
7.0 |
1.8 |
|
YCL112M-4 |
2.2 |
3 |
13.6 |
0.90 |
81.6 |
1450 |
2.3 |
6.5 |
1.8 |
|
YCL132S1-4 |
3.0 |
4 |
18.2 |
0.90 |
83.2 |
1450 |
2.1 |
6.5 |
1.8 |
|
YCL132S2-4 |
3.7 |
5 |
22.0 |
0.90 |
84.9 |
1450 |
2.1 |
6.5 |
1.8 |
|
YCL132M1-4 |
5.5 |
7.5 |
32.5 |
0.90 |
85.0 |
1460 |
2.0 |
6.5 |
1.8 |
|
YCL132M2-4 |
7.5 |
10 |
40.0 |
0.90 |
85.5 |
1460 |
2.0 |
6.5 |
1.8 |
