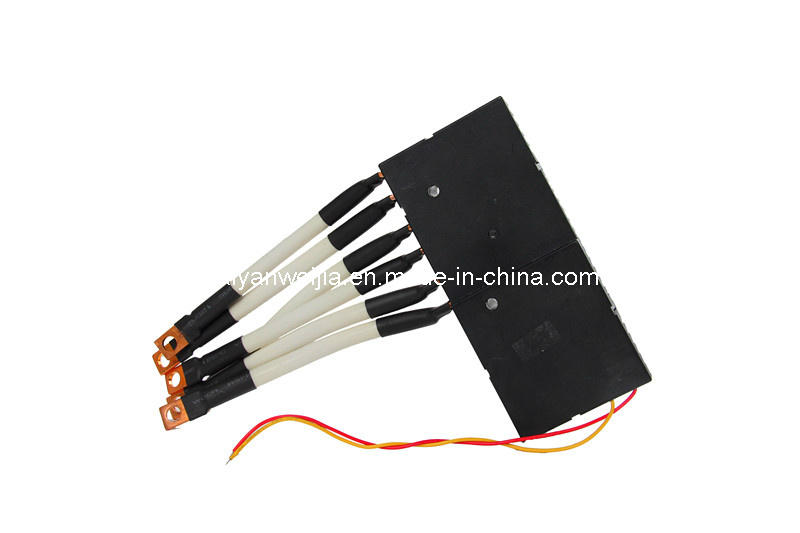

Single Phase Electrical Relays 100A 24V

Name: Single Phase Electrical Relays 100A 24V
Brand: all-electronics-online.com
SKU: 702756205
Availability: InStock
Rating: 4.3 (48 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	100A 24V
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Application; 1. Electrical meter 2. Automatic meter reading 3. All kinds of household electric appliances, automic control devices

Feature: 1. Contact switch current 100A

2. Compression between contact and coil is 5KV

3. Energy conservation and environmental protection

Appliance: Widely appliance to single-phase energy meter, combination switch, streetlights, industrial automation control.

Dimension: 120*54*29.5mm

Specification Data:
Coil Rated Voltage (V)	9	12
Coil Resistance(Ω )± 10%	Single 32 Double 16/16	Single 58 Double 29/29
Coil Pulse Drive Voltage Amplitude	≥ 120% Rated Voltage
Coil Pulse Drive Width	40mS Min 100mS Max
Coil Power	Single Coil 2.5W Double Coil 5/5W
Rate Switch Current	3*100A
Rate Switch Voltage	250VAC
Rate Current Contact Pressure drop	60mV Max
Contact Switch Time	20mS Max
Ambient Temp	-40-80° C
Vibration	10-55Hz Single Amplitude 0.75mm
Impact	147 m/S²
Relative Humidity	45%-85%
Life(Mechanical)	≥ 1× 10
Life(Electrical)	≥ 1× 104
Max Operate Frequency	600 OPS/H
Dielectric Strength(Between open contact)	2000VAC 50/60Hz
Dielectric Strength(Between coil & contact)	3750VAC 50/60Hz
Insulation Resistance	1000MΩ (500VDC)

Haiyan Weijia Electric Technology Co., Ltd. is a professional large-scale manufacture of all types of electric shunt, integrating development and production together. Our main products include shunt, current shunt, brass shunt, relay, magnetic latching relays, current transformer, testing equipment, transformer cable, electro-optical samplers and related products. Our company was established in 2008, and we have many years of history in the shunt industry. Located near Ningbo, Shanghai, we enjoy convenient water, land and air transportation.

Currently, our product already exported to Russia, India European and other Western countries and regions. Our company has always focused on research, development and innovation, and has obtain some patent in the shunt field. In 2009, we attained ISO9001: 2008 Quality Management System Certification Certificate.

Our company continues to introduce new products to meet different needs, with high-quality products, reasonable prices, and good after service, we hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
