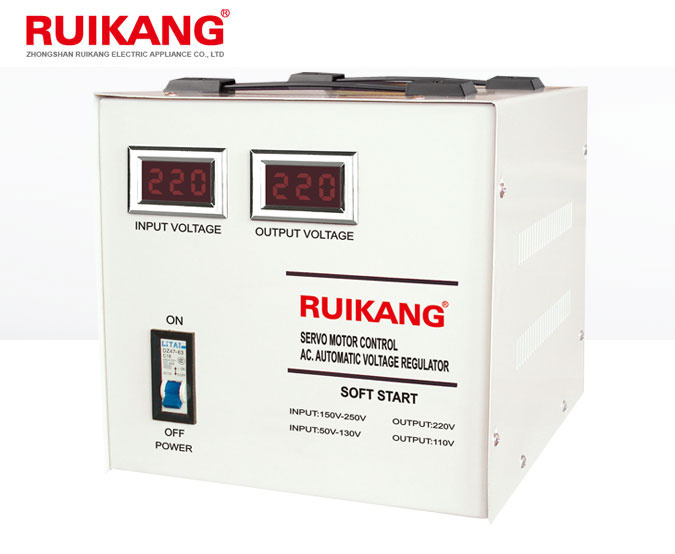

Single Phase High Accuracy Automotic Voltage Regulator with 80% Power

Prod Model:	SVC-5000VA
Type:	Servo Motor
Output Voltage:	220V
Current Type:	AC
Phase:	Single Phase
Usage:	SVC
Frequency:	Low Frequency
Iron Core Shape:	Toroidal
Brand:	Ruikang

Product Description

single phase high accuracy automotic voltage regulator with 80% power
1.Product Specification
1.Home electrical stabilizer
2.Manufacturer price and high quality
3.OEM and ODM sevice
4.CE,ISO9001,SONCAP cert

Specification:
Servo Motor Type
Meter/Digital Display
High Voltage/Low Voltage/High Temperature Protection
Output Protection:±3%
Color:Customized Design
Input Voltage:150~250V/70~130V
Output Voltage: 220V/110V AC
Frequency:50Hz/60Hz
Delaying Time:3S/180S
Power:5KVA/10KVA/15KVA/20KVA

Model		500VA	1000VA	1500VA	2000VA	3000VA	5000VA
Capacity		80% actual power when input voltage reach to 190V
Technology		Servo motor Copper coil round transformer
Phase		Single phase ( Two transformers controlled )
Display		Output voltage (Meter or Digital display)
Input	Voltage Range	150-250V
	Frequency	50Hz/60Hz
Output	Voltage	AC 220±3%V
Protection	High voltage Protection	√	√	√	√	√	√
	Low voltage Protection	√	√	√	√	√	√
Enviromental	Operating Temperature	0ºC-40ºC
	Storage Temperature	-15ºC-45ºC
	Operating Relative Humidity	10%RH-90%RH,Non-condensing
Physical	Pcs/Carton	4	4	4	2	1	1
	Packing Size(mm)	450×245×350	480×260×395	480×260×395	560×400×290	400×285×290	425×315×310
	G.W.(KGS)	16	20	23	20	13.5	16.5
	N.W.(KGS)	14	18	21	18	12.5	15.5

2.  Applications

Voltage stabilizer is used to automatically adjust the output voltage of the power supply circuit or power supply equipment. It can be widely used in places require stable power supply voltage, such as industrial and mining enterprise, oil, railways, construction sites, schools, hospitals, telecommunications, hotels, research and other departments of computer, precision machine tools, computer tomography (CT), precision instruments, test equipment, Elevator lighting, imported equipment and production lines, etc. Also adapted to electrical equipment with large load fluctuations and end users of those supply voltage is too low or too high and with large fluctuations in low voltage distribution network, especially for all of power places those have high requirements on the grid voltage waveform. Compensation power regulator can be accessed by fire, water, small generators.

3. Company Information:





4. Best Services:
We have a very excellent and professional sales team.All your inquiries will be replied within 24 hours. We provide One Year Warranty for our products.
FAQ
Q 1. What's the payment terms?
A. We accept T/T, 30% deposit and 70% balance before shipment.
Q 2. What's the loading port?
A. Usually we prefer xiaolan port (zhongshan) for delivery.
Q 3. How's the delivery time?
A. Normally it will take about 25-30 days for production.
Q 4. We want to know about production capacity.
A. Our average capacity is 10000 pcs per month.
Q 5. May I know the standard of package?
A. We usually use carton for small units, and use strong wooden case for floor standing big units. Each unit is well protected by color box.
Q 7. Would you accept to use our logo?
A. If you have good quantity, it is absolutely no problem to do OEM.
Q 8. What is your market?
A. Our products are popular export to Africa, South Asia, Middle East, Europe, and so on. Most are our regular customers and some are under developing. Surely we hope you can join us and make mutual benefits from our cooperation.
Q9. What kind of certificate you have?
A. We have CE, SONCAP and testing report for all our products.
Q10. Could you offer Form A or C/O?
A. Absolutely it is not a problem. We can prepare relative documents to foreign affairs office or other office to apply for the certificate.
