Product Description

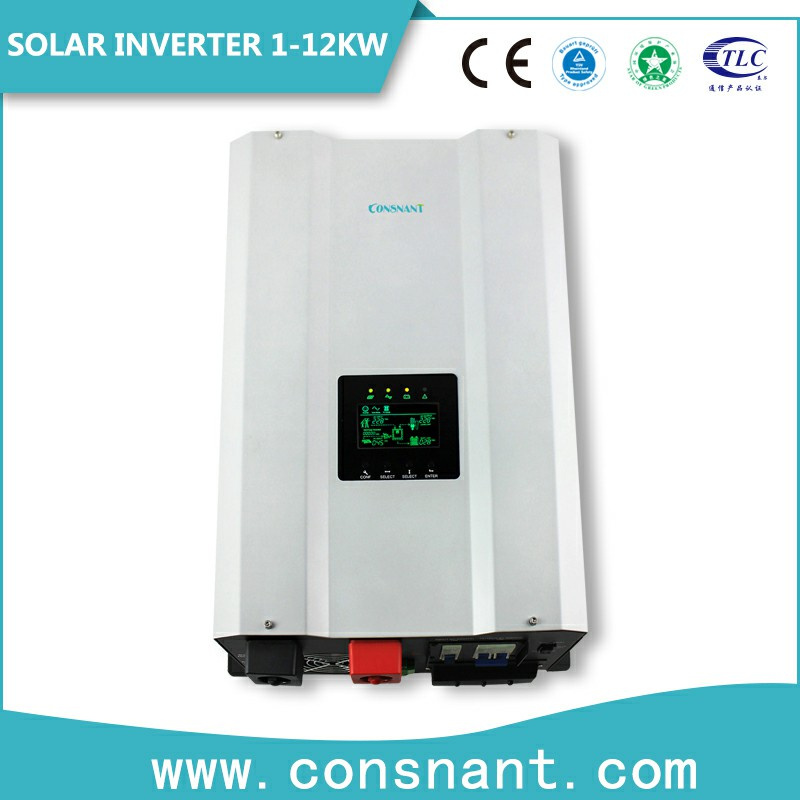

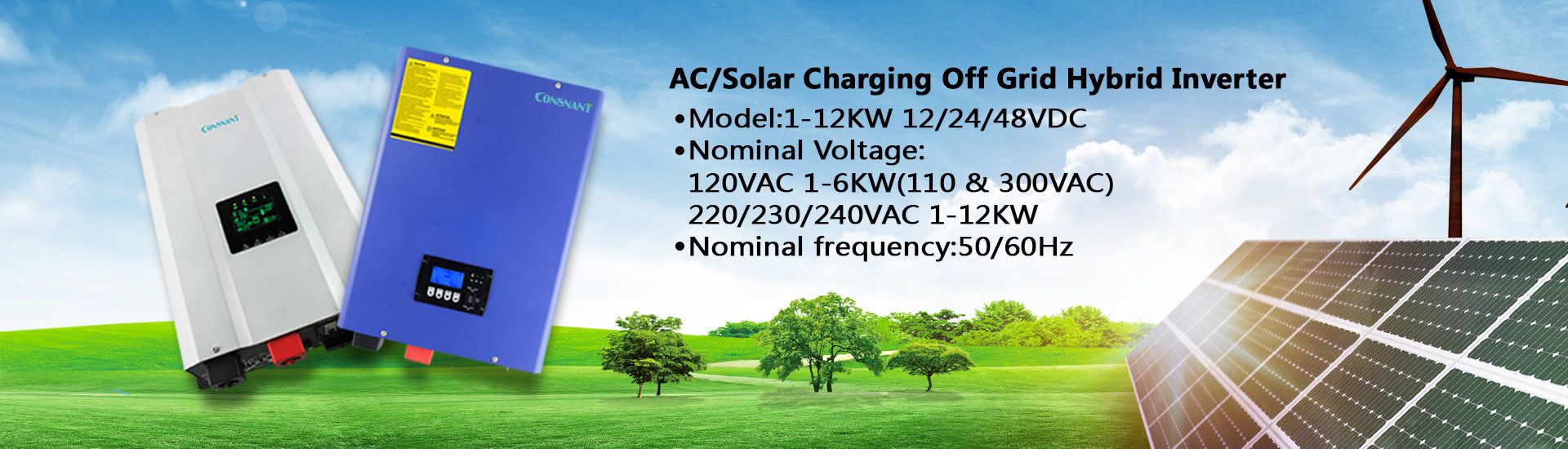

Single Phase High Efficiency Hybrid off Grid Solar Inverter 1. AC/Solar Charging Off Grid Hybrid Inverter.
2. LED/LCD display, Enhanced functions setting via LCD, Man-machine intelligent design
3. Built-in 40A/60A optional MPPT solar charger controller.
4. LCD shows the solar capacity.
5. 5 stages adjustable AC charging current. AC charging also can be closed
6. AC/DC priority modes can be set.
7. Generator restart signal. (Dry contact)
8. 3 times peak power. Strong loading capacity.
9. Overload, output short-circuit protection.

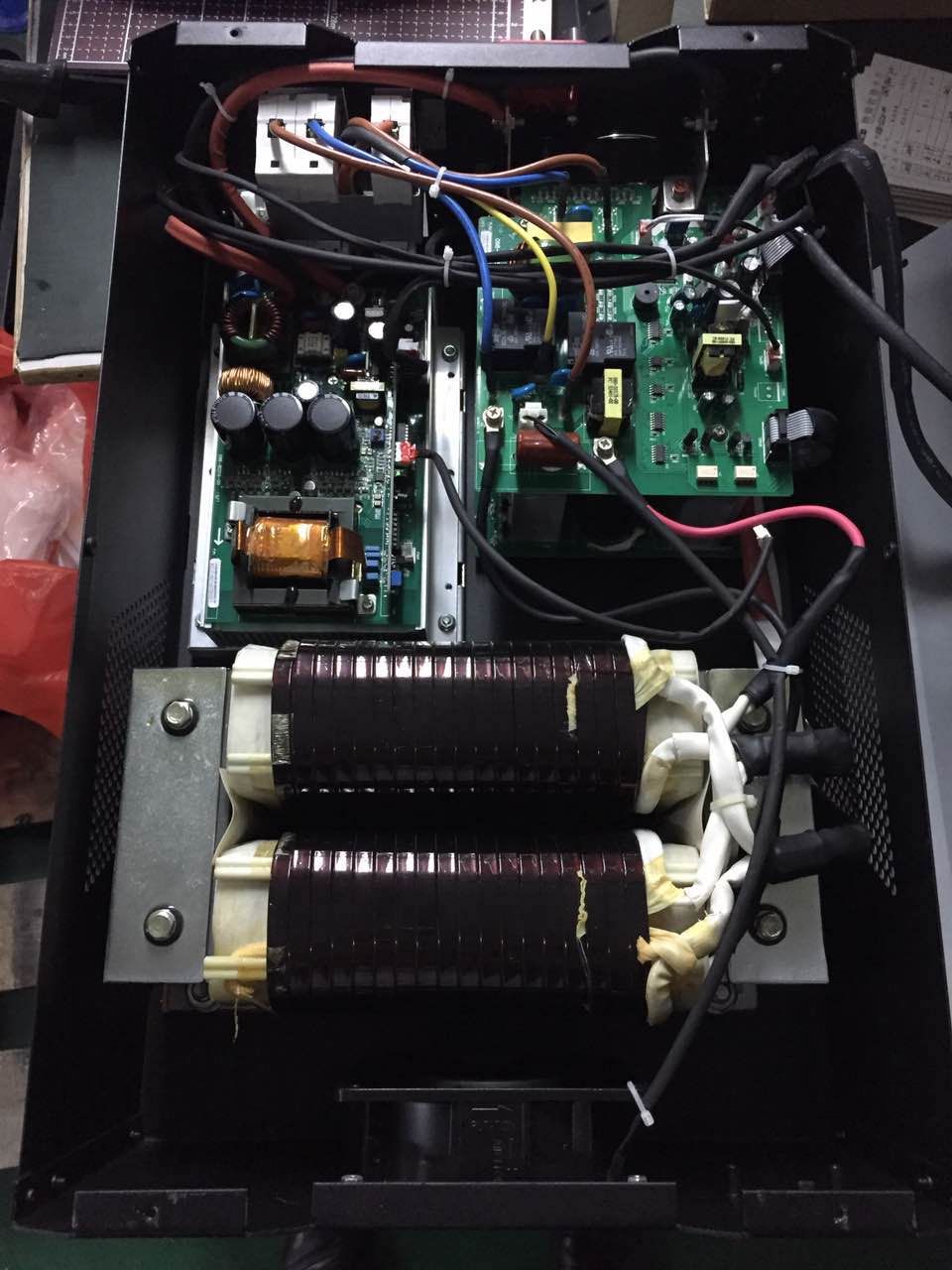

CNS110 Series Hybrid Inverter is designed to serve as a backup power supply for AC loads. The input power of CNS110 Series hybrid inverter comes from PV system and AC grid which not only supply power to AC loads but also charge the battery bank when the power from AC grid or AC generator is present(also known as Line Mode).
In the event of the AC grid (or AC generator) outage, the AC loads can be alternatively powered by PV system(if the illumination is sufficient) and the battery bank.

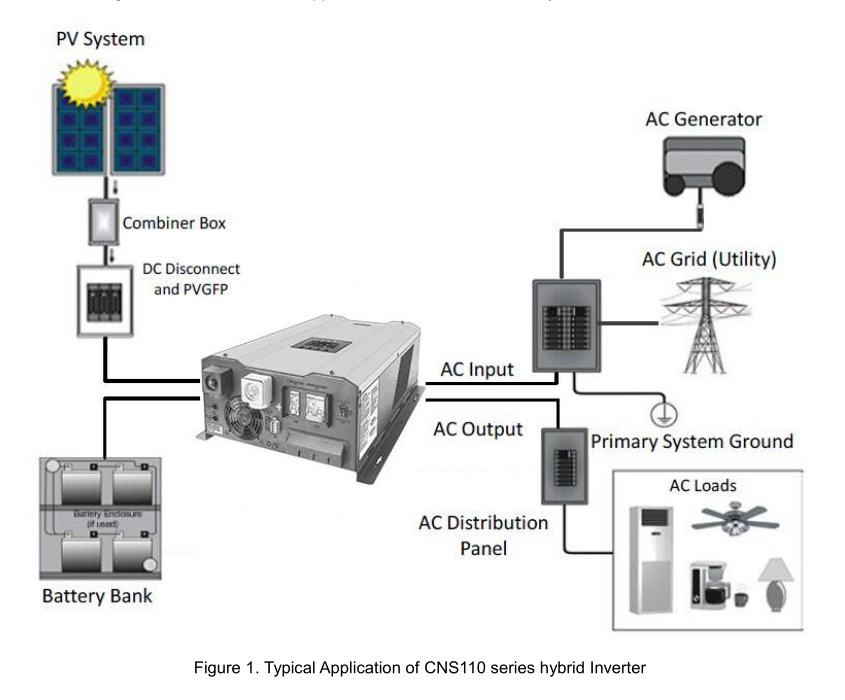

The following illusions show basic applications for CNS110 Series Hybrid Inverter
CNS110 Series Technical Specifications:
| Model | CNS110 1KW-12KW |
| Line Mode Specification: | LV Model(1-6KW) | HV Model(1-12KW) |
| Input Voltage | Input Voltage Waveform | Sinusoidal(utility or generator) |
| Nominal Input Voltage | LV 120Vac | HV 230Vac |
| Low Line Disconnect | Normal:85Vac±4% | Normal: 184 Vac±4% |
| Wide: 80 Vac±4% | Wide: 135 Vac±4% |
| Low Line Reconnect | Normal:95Vac±4% | Normal:194Vac±4% |
| Wide: 85 Vac±4% | Wide: 145Vac±4% |
| High Line Disconnect | Normal:136Vac±4% | Normal:263Vac±4% |
| Wide: 140 Vac±4% | Wide: 263Vac±4% |
| High Line Reconnect | Normal:131Vac±4% | Normal:253Vac±4% |
| Wide: 135 Vac±4% | Wide: 253 Vac±4% |
| Max AC Input Voltage | 150V rms | 270V rms |
| Input Frequency | Nominal Input
Frequency | 50Hz/60Hz(Auto detection) |
| | | |
Low Line
Frequency Re-connect | 51+0.3Hz for 60Hz;
41+0.3Hz for 50Hz; |
Low Line
Frequency Disconnect | 50+0.3Hz for 60Hz;
40+0.3Hz for 50Hz; |
High Line
Frequency Reconnect | 64+0.3Hz for 60Hz;
54+0.3Hz for 50Hz; |
High Line
Frequency Disconnect | 65+0.3Hz for 60Hz;
55+0.3Hz for 50Hz; |
| Main Function | Output Voltage Waveform | As same as input waveform |
| Over-load Protection(SMPS load) | Air switch |
Output Short
Circuit Protection | Air switch |
Max Bypass
Overload Current | 40A/50A |
| Battery Inverter Mode Specifications: |
| Output | Output Voltage
Waveform | Sine wave | |
Rated Output
Power(KW) | LV:1-6KW | HV:1KW-12KW |
| Power Factor | 0.9~1.0 | |
Nominal Output
Voltage(V) | LV:120Vac±10% rms | HV:230 Vac±10% rms |
Nominal Output
Frequency(Hz) | 60Hz±0.3Hz; 50Hz±0.3Hz |
| | | |
| DC Voltage | Nominal DC
Input Voltage | 12VDC/24VDC/48VDC |
| DC Voltage Range | 10-15.5Vdc for 12V battery |
| 20-31.0 Vdc for 24V battery |
| 40-62.0 Vdc for 48V battery |
| Low Battery Alarm | 10.5Vdc±0.3Vdc for 12V Battery |
| 21.0 Vdc±0.6Vdc for24V Battery |
| 42.0 Vdc±1.2Vdc for 48V Battery |
Low DC
input shut-down | 10.0Vdc±0.3Vdc for 12V Battery |
| 20.0Vdc±0.6Vdc for 24V Battery |
| 40.0Vdc±1.2Vdc for 48V Battery |
| High DC input alarm&fault | 16Vdc±0.3Vdc for 12V Battery |
| 32Vdc±0.6Vdc for 24V Battery |
| 64Vdc±1.2Vdc for 48V Battery |
| High DC input recorvery | 15.5Vdc±0.3Vdc for 12V Battery |
| 31.0Vdc±0.6Vdc for 24V Battery |
| 62.0Vdc±1.2Vdc for 48V Battery |
| AC Charger | Nominal Charge Current | 20A/35A/50A/70A/90A(5satges adjustable charging current) |
| Charge Current Regulation | ±5Adc |
| Over Charge protection | Bat.V>=15.5VDC for 12V battery |
| Bat.V>=31.0VDC for 24V battery |
| Bat.V>=62.0VDC for48V battery |
| Beeps 0.5s every 1s& fault after 60S |
| Algorithm | |
| Three stage:Boost CC(Constant current stage) →Boost CV(Constant voltage stage) →Float(constant voltage stage) |
| Solar Charger | Rated Charge Current | 40A | 60A |
| Rated Charge Battery Voltage Type | 12V/24V/48V | 12V/24V |
| Max PV open Circuit array voltage | 12V for 40Vdc |
| 24V for 40Vdc |
| 48V for 110Vdc |
| Charger Mode | MPPT |
| PV Low Voltage Re-connect | PV>=Bat.V=3V |
| PV Low Voltage Disconnect | PV<=Bat.V |
| Efficiency | Efficiency | >=97% |
| Efficiency(Battery Mode) | >=85% |
| Efficiency(Line Mode) | >98% |
| Transfer Time | AC to DC | 20ms(Max) |
| DC to AC | 15ms(Max) |
| System parameter | Over-load Protection | 110%Load>150%, beeps 0.5s every 1s, and fault after 20s. |
| Surge rating(10s) | 1:3(VA) |
| Power Saver | Load<=25W(enabled on "P/S auto" setting of Remote comtro;) |
| Protections | Low battery, over charging, overload, over temp |
| Indicators | LED+LCD Display |
| General Specifications | Operation Temperature Range | 0ºC to 40ºC |
| Strorage Temperature | -15ºC~60ºC |
| Operation Humidity | 5% to 95%(non-condensing) |
| Audible Noise | 60dB max |
| Cooling | Forced air, Variable speed fan |
| Dimension(L*W*H) | 1-3KW: 526*423*260mm
4-6KW:530*396*190mm
7-12KW:627*416*204mm |
| Net Weight(Kg) | 1KW:21.5Kg; | 1.5KW:23.5Kg |
| 3KW:30.5Kg | 4KW:32Kg |
| 5KW:36.5Kg | 6KW:40.5Kg |
| 7KW:43.5Kg | 8KW:50Kg |
| 10KW:57.5Kg | 12KW:60Kg |
