Shenzhen UPSEN Electronic Co., Ltd. >> Single Phase Home Use 12/24V Power Inverter with High Efficiency

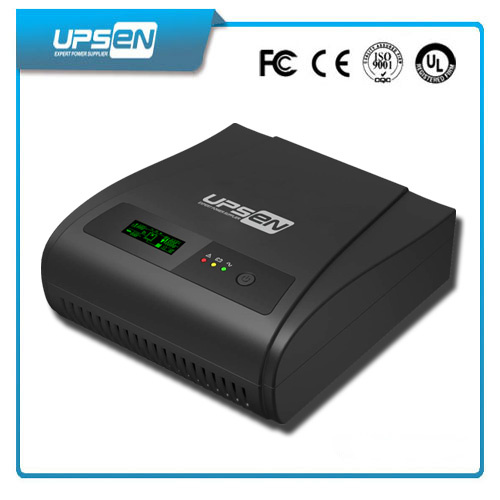

Single Phase Home Use 12/24V Power Inverter with High Efficiency

Single Phase Home Use 12/24V Power Inverter with High Efficiency
Price: US $ 1-100/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: Nature Star Series 1000Va-2000Va
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Noise: <=40dB
Output Waveform: Modified Sine Wave
Input Phase: Single Phase
OEM: Accepted

Product Description

Single Phase Home Use 12/24V Power Inverter with High Efficiency
Modified Sine Wave Solar Inverter Controller Nature Star Series 1000Va-2000Va (1ph in/1ph out)
Key Features
1.Automatic restart.
2.Over-load protection.
3.Saving-energy power inverter.
4Auto restart while AC is recovering
5.Built-in PWM Solar Charge Controller.
6.Restroation of electricity,automatically actived.
7.Selectable charging current based on applications.
8.Optional battery or gird power priority manual select.
9.Design for harsh environment and various equipments.
10.Smart battery charger design for optimized battery performance.
11.High surge capacity starts more difficult loads and handles overload conditions reliably.

Application
Data processing systems,Sensitive electronic equipment,Television,Video Recorders,Network Rooms,air-condition,fridge,mower,soybean milk maker etc

Full Protection:

Over temperature shutdown and automatic overload protection
Over voltage and under voltage protection etc.
Technical Specification
MODELNS1000NS2000
CAPACITYVA/W1000VA/720W2000VA/1300W
NOMINAL    BATTERY VOLTAGE12VDC24VDC
LINE MODE
INPUTNominal    Voltage220/230/240VAC
Voltage Range170-280VAC (Narrow Range)
90-280VAC (Wide Range)
OUTPUTVoltage220/230/240VAC
Frequency50Hz/ 60Hz
Output WaveformFollowing the Utility
EFFICIENCY>95%    (full load, battery full charged)
TRANSFER TIME15ms Typical, 40ms Max.
BACKUP MODE
OUTPUTVoltage220/230/240VAC (+10% / -18%)
Frequency50Hz or 60Hz (Auto detection)
Output WaveformModified Sine Wave
EFFICIENCY >80%
OVERLOAD    PROTECTION1min@>110%,20s@>120%,0s@>150%
PROTECTIONDischarge, over-charged, over-loading, over-temperature, short-circuit protection
BATTERY    CHARGER (powered by AC)
CHARGING ALGORITHM3-step charging
AC CHARGING MODE15Amp / 20Amp Selectable10Amp
FLOATING CHARGING VOLTAGE13.7V27.4V
OVERCHARGING  VOLTAGE16V32V
SOLAR    BATTERY CHARGER
MAX. INPUT POWER450W900W
CHARGING CURRENT40Amp
NOMINAL BATERY VOLTAGE12V24V
OPTIMAL WORK VOLTAGE RANGE15V~18V30V~36V
MAX. PV INPUT VOLTAGE55V
MAX.PV INPUT CURRENT40    Amp
GENERAL
PHYSICALDimension (DxWxH)275mm*226mm*85mm
Net Weight (kg)2.622.76
ENVIRONMENTOperating Environment0- 50°C, 5%-90 % relative humidity (non-condensing)
Storage Environment 15°C to 55°C to 55°C, 5% to 95% humidity (non-condensing)
Noise LevelLess than 50dB
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.

We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.

We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.

We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
