| Prod Model: |
YZ45M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| The Theory: |
Tubular Motor |
| Motor Species: |
Induction Motor |
| Power Supply: |
230 V /380V |
| Control Types: |
Tubular Motor Are Controlled by Remote |
| Phase: |
Single-Phase |
| Frequency: |
50Hz / 60Hz |
| Shape: |
Tubue |
| Number Of Stator: |
Single-Phase |
| Function: |
Driving |
| Speed: |
Constant Speed, High Speed |
| Certification: |
CCC, Ce, UL, Ohs |
| Brand: |
Universal |
Product Description

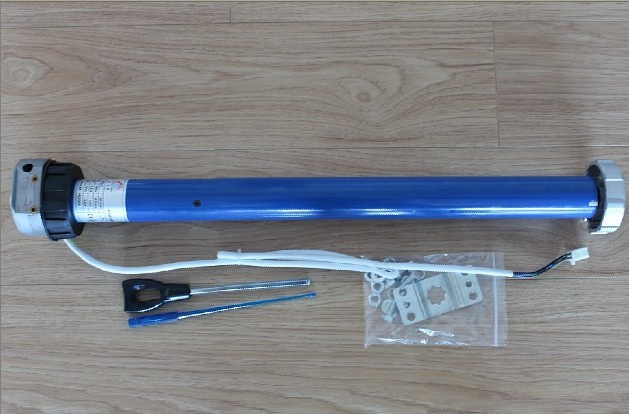

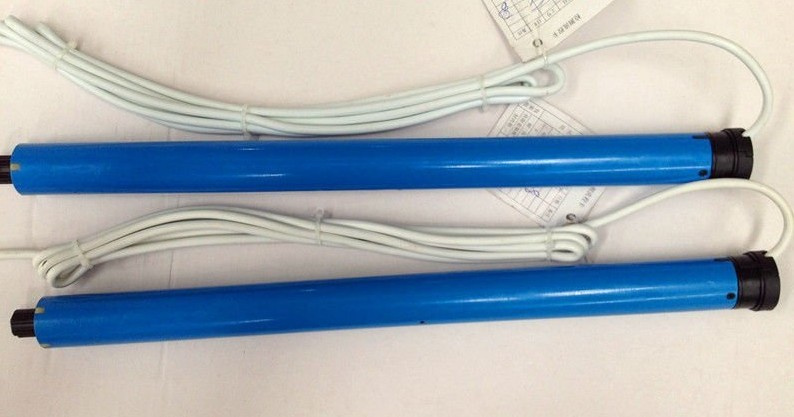

Single Phase Industrial Tubular Motor AC
YZ45M Series Tubular Motor Description :
Our YZ45M Series Tubular Motor with advanced design (electronic, mechanicand control mixed together), it has characters of conpact structure, big torque, sensitive limited switch and accuracy. This type of Tubular Motor can be used in curtain, metal rolling door, and windows,garage door,awnings etc. Which the maximum lift capacity is less than 50N.m
Advantages of Tubular Motor:
- DC tubular motor Non malfunction for the brake
- Low noise
- Long service life
- Strong intensity
- Oil proof
- Accurate limit .
Large effective limit
Build-in remote control
Application:

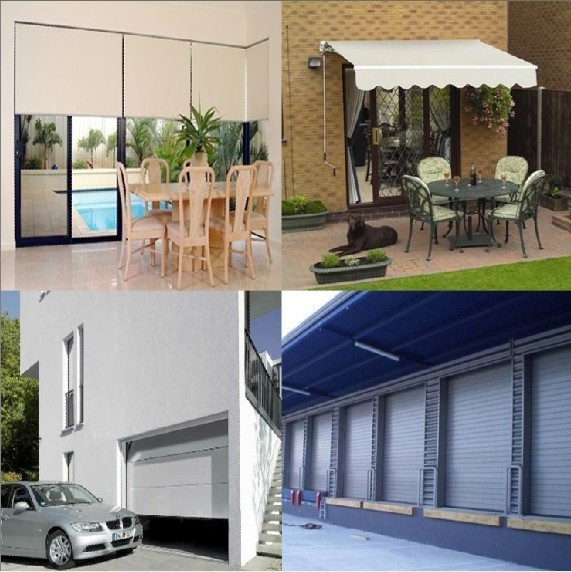

Our Tubular Motor widely used for
blinds,curtain,roller shutter door, projector screens,garage door, shop door, industrial door
Why Choose Us?
Good Quality, Competitive Price, Fast Delivery
Xiamen Universal Electronic Co., LTD is the industrial company, engaged in R&D, manufacturing, marketing and services. Established in the year 2005, we regarding the high starting point, high standard and high quality as our brand positioning.
Our Roller Door Tubular Motor are available for electric and manual operation, also supporting the use of wireless remote control. It performs good in self- locking and anti- theft, at the same time, it has the anti- fall function. The motor running in low noise, small vibration, applicable to 50HZ and 60HZ power.
Contact Person:
Una Chen
Xiamen Universal Electronic co., Ltd.
HP: 86-15606002688
Tel: 86-592-5782488
Motor Model |
Torque
(N.m) |
Rotating
(rpm) |
Rated Voltage
(V) |
Rated Frequency
(Hz) |
Rated Power
(W) |
Rated Current
(A) |
Number of Tums
(tum) |
Protection Index
(IP) |
Running Time
(min) |
Net Weight
(Kg) |
YZ45-10 M2 |
10 |
17 |
230 |
50 |
162 |
0.71 |
26 |
IP44 |
>=4 |
3.5 |
YZ45-20 M2 |
20 |
17 |
230 |
50 |
178 |
0.78 |
26 |
IP44 |
>=4 |
YZ45-30 M2 |
30 |
12 |
230 |
50 |
235 |
1.03 |
26 |
IP44 |
>=4 |
YZ45-40 M2 |
40 |
12 |
230 |
50 |
276 |
1.20 |
26 |
IP44 |
>=4 |
YZ45-50 M |
50 |
12 |
230 |
50 |
282 |
1.23 |
26 |
IP44 |
>=4 |
Xiamen Universal Electronic Co., Ltd is a professional manufacturer of Rolling Door Motor, Tubular Motor, Micro Switch and semiconductor component separator, etc. After years of practical experience, efforts of all colleagues, the support of customers and suppliers, now we have Mechanical & Electrical Department, Electronic Components Department and Integrated Department of Market Operation. There are more than 40 series products, with over 500 kinds of specifications. Mechanical & Electrical products are widely used in shopping malls, hotels, warehouses, banks, factories and other buildings rolling door opening and closing; Electronic Components are mainly used in home appliances, industrial control, automotive electronics and other areas. We have done business with more than 40 countries all over the world and earned a good reputation.
Main products:
Rolling Door Motor, Roller Shutter Motor, Garage Door Motor, Rolling Shutter Motor, Automatic Door Opener, Tubular Motor, Micro Switch, Tip Over Switch, Tilt Switch, Safety Switch, Bridge Rectifier, etc.
Superior Service:
Being a professional manufacturer for many years, we always supply quality product at competitive prices with superior service. We keep the principle of "Quality First, Customers Supreme" and always try to meet customers' Requirements at any time. Any inquiries will be replied within 1 business day.
Quality Assurance:
We have QC department to make inspect every step of production, so we can make sure good quality products for customers.
Sample Order:
Sample order is available, normally, it takes about 7 days to make new samples.
Welcome to inquire from our company if you have any requirement. We are always positive and ready to offer excellent service.
