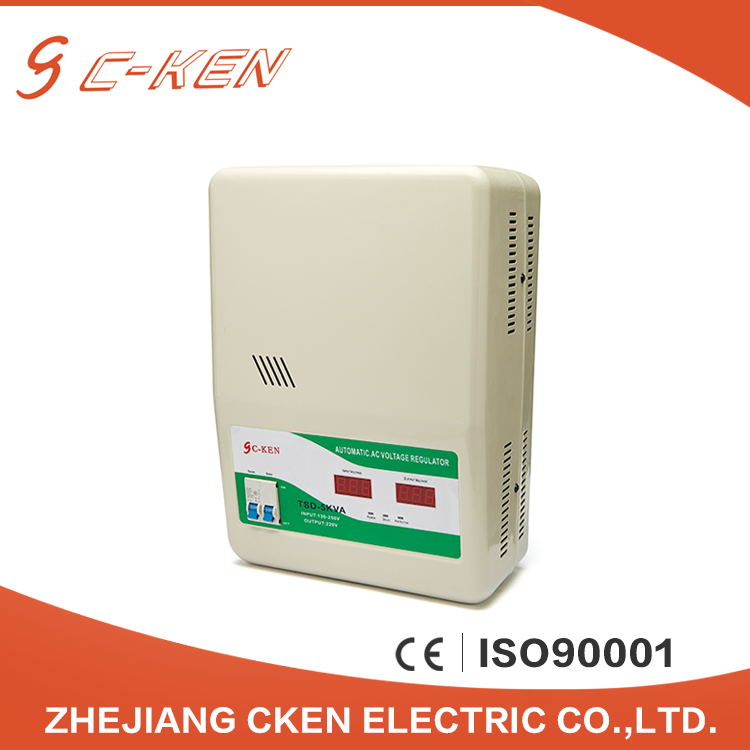

Single Phase Intelligent Wall Mounted Voltage Stabilizers, Tsd6000V AC Automatic Voltage Stabilizers 220V AC

Name: Single Phase Intelligent Wall Mounted Voltage Stabilizers, Tsd6000V AC Automatic Voltage Stabilizers 220V AC
Brand: all-electronics-online.com
SKU: 733546822
Availability: InStock
Rating: 4.6 (126 reviews)

Price:	US $ 79-85/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TSD6000V
Current Type:	AC
Phase:	Single Phase
Usage:	SVC
Frequency:	High Frequency
Brand:	Cken

Product Description

Genaral:

SVR is relay type . single phase, high accuracy full-automatic AC voltage stabilizer. This voltage stabilizer is of common type, it has the function of connecting through the commercial power. Compared with other voltage stabilizers, it has the advantage of great variety . complete specification, nice appearance and obvious features of high efficiency, no wave distortion, reliable performance, working continually for long time, besides, it is provided with short time delay and over voltage protection, and the long time delay and under voltage protection also can be set according to user requirement. This product is an ideal stabilized voltage supply, widely used in any locations requiring electricity and ensures your power device can run normally.

Product Properties

Model No.	CKEN TSD-6KVA
Item Name	TSD Intelligent AC Automatic Voltage Stabilizer
Input Voltage	80V∼250V
Output Voltage	220V
Accuracy of Voltage Stabilization	220V±7%
Frequency	50H/60Hz
Protection Over Voltage	246±4V
Over Voltage Protection Value	250V/Delay 5s; 275V/Delay 2s; 295V/Delay 1s; 305V/Delay 0s
Under Voltage Protection Value	180V/Delay 5s
Phase	Single Phase
Delay Time	Long 180s,short 5s
Overload Protection Value	1.05 times the rated power /60s 1.4 times the rated power /5s 2 times the rated power/0s
Over Temperature Protection Value	100^.C
Relative Humidity	<95^.C
Temperature Rise	<60^.C
Insulation Resistance	>5MΩ
Waveform Distortion	NO additional waveform distortion
Adjustable Time	<1s (when input voltage has a change of 10%)
Dielectric Strength	1500V/min
Load Power Factor	0.8

FAQ

Q1: How about your delivery time?
A: Generally, it will take 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q2: What is your term of packing?
A: For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.

Q3: Can I have a sample for testing?
A: Yes, we can offer free sample, but you should afford the shipping cost.

Q4: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds.

Q5: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery,we will send photos and video to you

Q6: How can I get the after-service?

A: We will send you the free spare parts if the problems caused by us. If the products cannot be repaired, we will send you new free quantity together with next order.

Q7:How about payment terms?
A: 30% deposit, the rest payment balance against B/L. If have regular order and good order quantity, we can give delay payment.

We are a high and new-tech enterprise specialized in research, development, production, and marketing. The leading products include voltage stabilizers, kwh meters, meter parts, power supply parts, transformers and other power supply goods.

Our company ranks leading in passing ISO9001 quality management system certification. The products have obtained certificates like CE and also domestic CCC and CQC. We keep carrying on the development and research of new products. We will abide by quality promise with the spirit of expansion, innovation and marketing.

We believe that our company will be more powerful and far better by your support!
