| Prod Model: |
NNT-500L, NNT-1000L, NNT-1500L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Waveform: |
Pure Sine Wave |
| Transfer Time: |
2~4ms |
| Wide Input Voltage Range: |
145~275VAC |
| Phase: |
Single Phase |
| Type: |
Line Interactive |
| Protection: |
Short Circuit |
| Brand: |
Jetpower |
Product Description

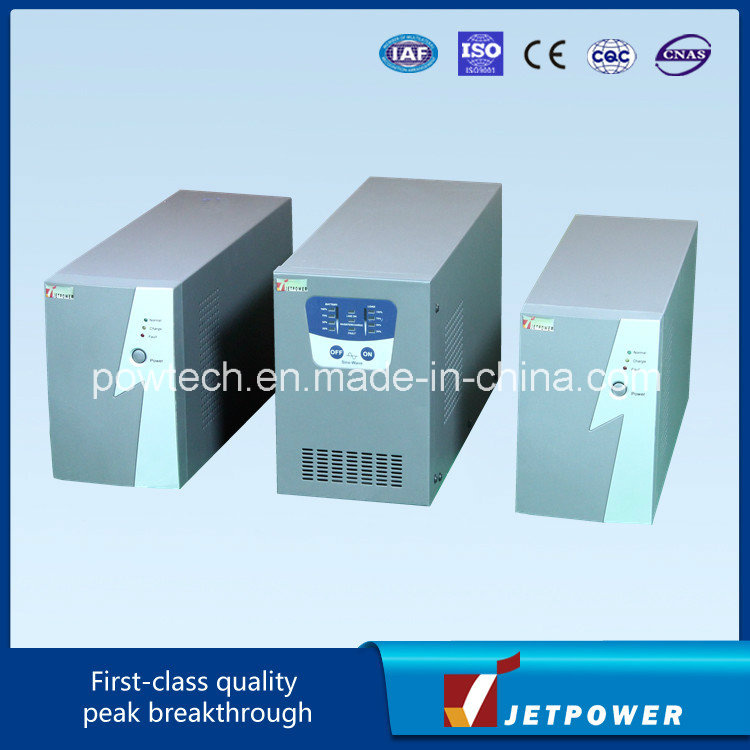

Horse Series Line Interactive UPS(500VA~10KVA)
Main Features
1) Provide Line-Interactive design and true sine wave out put
2) Equipped with Boost and Buck AVR to stabilize input voltage
3) User configurable input voltage range and output voltage
4) DC start function enables UPS to be started up without AC power supplied
5) Large built-in charger with power factor corrected 6) Enable to extend runtime with scalable external battery pack
7) Fully protection for overload, short-circuit and over temperature
8) RS232 & dry contact signal for power management software
9) SNMP card slot is available for 2KVA above
Technical Specifications:
Model Name | 0.5KL | 0.5KS | 1KL | 1KS | 1.5KL | 1.5KS | 2KL | 2KS | 3KL | 3KS | 6KL | 8KL | 10KS |
| Capacity (VA / Watt) | 500VA/300W | 1000VA/700W | 1500VA/
1050W | 1500VA
/900W | 2000VA/
1400W | 3000VA/
2100W | 6KVA /
4.2KW | 8KVA /
5.6KW | 10KVA
/7KW |
| Overview | Power Factor | 0.6 | 0.7 | 0.6 | 0.7 |
| Outlook | Tower | Tower or Rack (3U) | Tower |
| Waveform | TRUE SINE WAVE |
| Input | Nominal Voltage | 230V |
| Voltage Range | 150-275Vac | 154V~299V |
| Frequency Range | 45HZ~60HZ |
| Output | Nominal Voltage | 230VAC |
| Voltage Range (AC Mode) | 200V~253V |
| Voltage Range (Batt. Mode) | 230V±6% | 230V±3% |
| Frequency Range | (50/60Hz)±0.5% |
| Overload Protection | Overload Protection (AC Mode) | >120% 1min S/D | Alarm (Fuse or C.B Protection) |
| Overload Protection (Batt Mode) | >120%->15Sec S/D, >140%->immed UPS Off. | 110~140%->20Sec, >140%->5Sec. |
| Battery | Volatge | 12VDC | 24VDC | 36VDC | 24VDC | 48VDC |
| Quantity | N/C | 12V7AH*1PCS | N/C | 12V7AH*2PCS | N/C | 12v/9AH*2PCS | N/C | 12V7AH*4PCS | N/C | 12V12AH*4PCS | N/C | N/C | 12V12AH * 12PCS |
| Cold Start (DC Start) | Yes |
| Hot Replacement | Yes |
| Charger Current | 10AMax | 1.5AMax | 15AMax | 1.5AMax | 20A
Max | 1.5A
max | 20AMAX | 2AMax | 20AMAX | 2AMax | 30A Max | 30AMax | 5AMax |
| Charger Over Protection | Yes |
| Charging When UPS off | Yes |
| Data Line | Network Protection(Optional) | N/C | RJ45 (1 in/1 out) | N/C |
| Communication | Intelligent Interface | RS232 OR USB |
| SNMP slot | Optional |
| Display | LED Status | Line,Batt Mode /charging,Overload,Fault | Line,Batt Mode/charging, Overload /Fault;battery capacity; load size | Line/Batt Mode,AVR ,Battery cabacity ;Load size;Overload,Fault,Batt Replacement |
| LCD (OPTIONAL) | O/P voltage,Input voltage and frequence;battery capacity ;Load size. | O/P voltage ,Input voltage and frequence;battery capacity ;Load size.Model |
| Conformance | Safety & EMC Approved | CE/TUV/FCC |
| Physicial | Dimension(DxWxH) | 360*122*193mm | 383*140*212mm | 435x430x135mm | 440*190*330mm | 508*300*792mm |
| Net Weight | 6.5kg | 8kg | 9.5kg | 11kg | 13kg | 12KG | 18KG | 28KG | 21.5KG | 34.5KG | 38.25KG | 60KG | 102KG |
| Ambient | Temperature | 0~45° |
| Related Humidity | 10%~90%(no condensation) |
| Altutide | 1500m |
L for long backup time,S for standard backup time
Specifications subject to change without prior notice.
