| Prod Model: |
5RK90AM |
| Motor: |
AC Motor |
| Gearbox: |
90mm |
| Torque: |
High Torque |
| Speed Range: |
90-1350rpm |
| Voltage: |
110V 220V Gear Motor |
| Gears: |
Metal Gear |
| Duty: |
30min |
| Power: |
25W-120W |
| Material: |
RoHS Material |
| Frequency: |
50Hz/60Hz |
| Number Of Stator: |
Single-Phase |
| Function: |
Driving |
| Certification: |
Ce RoHS |
| Brand: |
Kingly |
Product Description

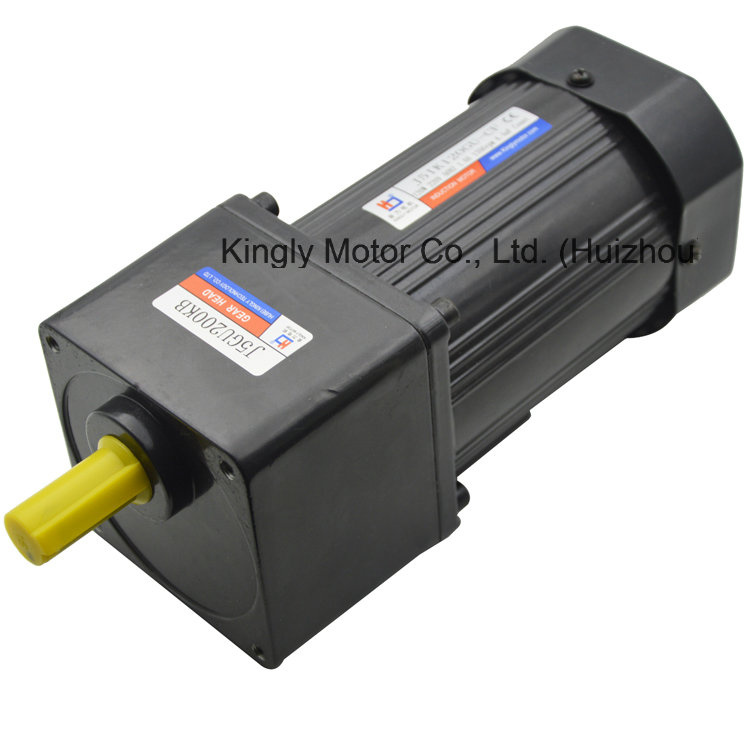

Specification: 90mm AC Brake Control Motor 50HZ 25-120W 1ph 220v
Power:25- 120W
Voltage:220v 1PH
Ruduction Ratio:1:3-1:150
Rated Speed :90rpm-1350rpm
Rated Torque:0.65-3.2kgf.cm
Gearbox Diameter:80mm 90mm
Capacitor/Ve: 3.0uF/450
Motor dimensions:D80mm D90mm -xL143.5mm-195.5mm
Length of Gear:42mm and 60mm and 65mm
Frequency:50HZ/60HZ
Poles:4 Duty:30Min
Typical Aplications:
Packing Machine Paper feeder, Accessory automobile
Electronic lock optic equipment
Monitor, Precision instrnment
Robot, Financial apparatus
Ad equipment, Audio equipment
Healthful equipment
Also We can design the motor according to your Voltage, Speed, Shaft length and so on

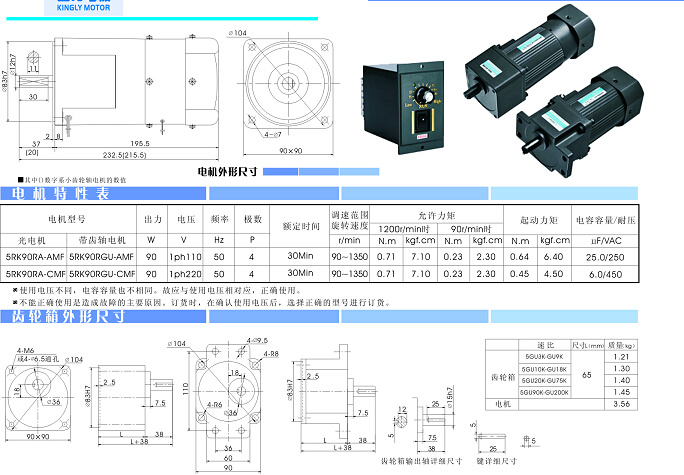

Specification:| Motor Specification |
| Motor Model | Output | Voltage | Frenquency | Poles | Duty | Rotation Speed in Regulated Speed | Allowance Torque | Starting Torque | Capacitor/Ve |
| 1200r/min | 90r/min |
| Optical Motor | Motor with Gear and Shaft | W | V | Hz | P | r/min | N.m | kgf.cm | N.m | kgf.cm | N.m | kgf.cm | uF/VAC |
| 5RK90RA-AMF | 5RK90RGU-AMF | 90 | 1ph110 | 50 | 4 | 30min | 90-1350 | 0.71 | 7.10 | 0.23 | 2.30 | 0.64 | 6.40 | 25.0/250 |
| 5RK90RA-CMF | 5RK90RGU-CMF | 90 | 1ph220 | 50 | 4 | 30min | 901350 | 0.71 | 7.10 | 0.23 | 2.30 | 0.45 | 4.50 | 6.0/450 |
| | Reduction Ratio | Length(mm) | Weight(kg) | | | | | | | | | | | |
| Gearbox | 5GU3K-GU9K | 65 | 1.21 | | | | | | | | | | | |
| 5GU10K-GU18K | 1.30 | | | | | | | | | | | |
| 5GU20K-GU75K | 1.40 | | | | | | | | | | | |
| 5GU90K-GU200K | 1.45 | | | | | | | | | | | |
| Motor | | | 3.56 | | | | | | | | | | | |
