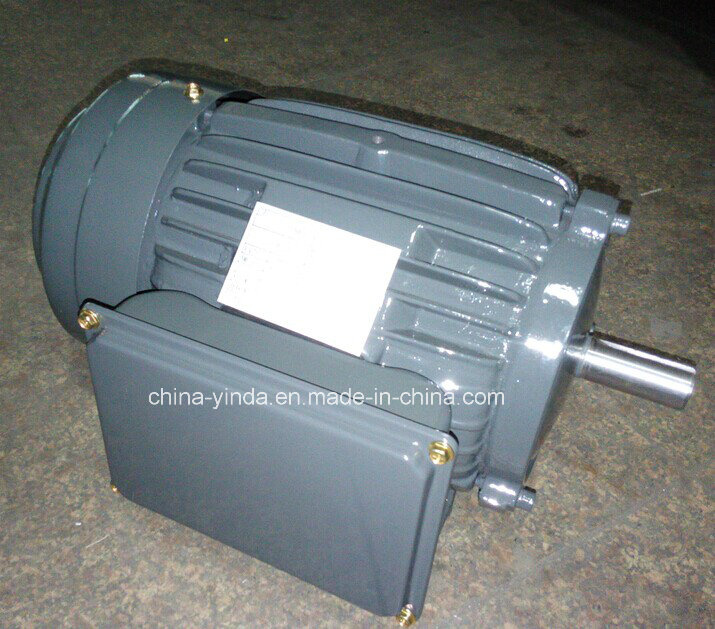

Single Phase Motor, Tefc- IP54, 2.2 - 5.5kw

Name: Single Phase Motor, Tefc- IP54, 2.2 - 5.5kw
Brand: all-electronics-online.com
SKU: 722236625
Availability: InStock
Rating: 4.6 (81 reviews)

Price:	US $ 65/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	TEFC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power:	2.2 - 5.5kw
Voltage:	100/110/120/220/230/240V
Frequency:	50 or 60Hz
Cooling Method:	IC411
Continuous Working Duty:	S1
Mounting Position:	B3/B5/B35
Frame Material:	Cast Iron
Protection Class:	IP54
Insulation Grade:	F
Warranty:	12 Months
Application:	Power Tools
Operating Speed:	Low Speed
Number Of Stator:	Single-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Species:	Single Phase
Starting Mode:	Capacitor Starting
Certification:	Ce

Product Description

TEFC Single Phase Motor
Cap Start & Run

Standard features:
Cast Iron frame: 100-132
Mounting type: B3
Power: 2.2kW/3KW/3.7kW/5.5kW
Speed: 1450rpm
Squirrel cage rotor/Aluminum Die cast
Start & run capacitor
Duty Type: S1
Protection grade: IP54
Insulation class: F
Voltage: 220V

Optical features:
Mounting type: B5/B35/B14/B34/B3
Special voltages
Frequency: 60Hz

Applications:
Fans, pumps, pulleys, cranes, continuous conveyors, grinders etc.

Technical Data:

Type	Rated output		Voltage	Frequency	Speed	Efficiency	Power factor	Rated Current	ILR / Irated	TLR/Trated	LWA
Type	Kw	HP	V	Hz	r/min	%	cosΦ	A	ILR / Irated	TLR/Trated	Lw dB(A)
YL100L-2	3	4	220	50	2840	78.0	0.95	18.4	6	1.7	83
YL112M-2	3.7	5	220	50	2840	79.0	0.95	22.4	6	1.7	83
YL132S-2	5.5	7.5	220	50	2880	80.0	0.95	32.9	6	1.7	83
YL100L1-4	2.2	3	220	50	1400	75.0	0.95	14	5	1.7	78
YL100L2-4	3	4	220	50	1400	77.0	0.95	18.6	5	1.7	78
YL112M-4	3.7	5	220	50	1430	78.0	0.95	22.7	5.5	1.7	83
YL132S-4	5.5	7.5	220	50	1440	79.0	0.95	33.3	5.5	1.7	83

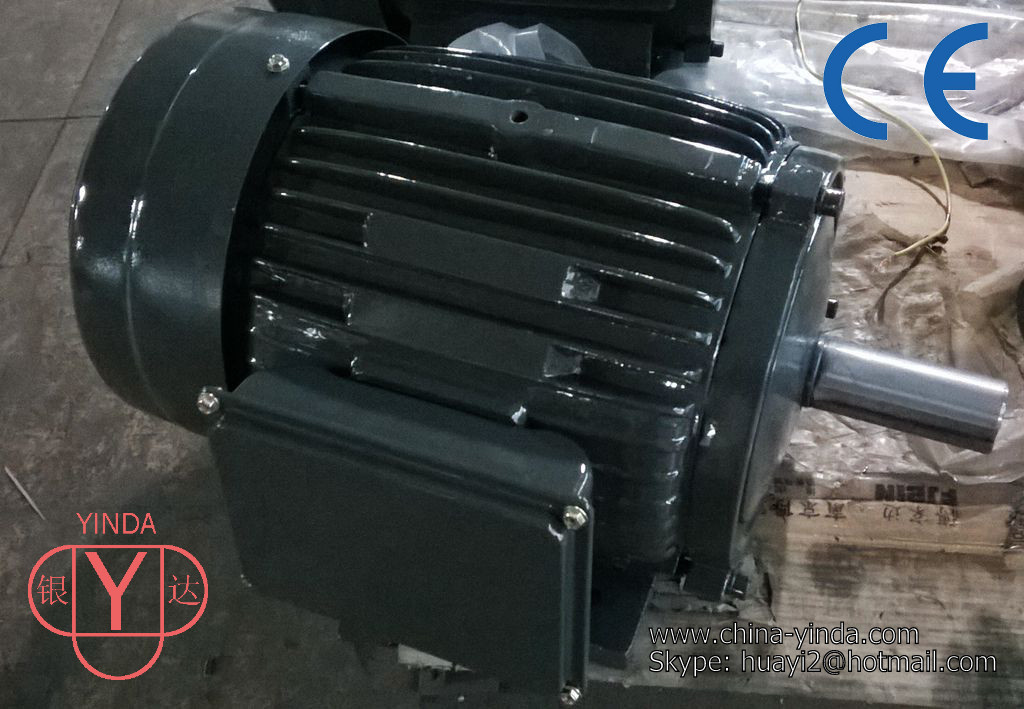

Photos:

Yinda located in Wenling city of Zhejiang provice, which is 15 minutes driving from Wenling Train Station.

Establised in 1988 and renamed in 2003, Zhejiang Yinda Machine Electricity Co., Ltd. Engaged in developing reliable motors, as well as welding machine and scrao wire stripping machines to satisfying the market.

Our products:

1. Electric Motors:

Single-phase AC motor, (including Capacitor start & run motor, capacitor run motor, capacitor start motor, resistance start motor) ML, MC, MY, YL, YC, YY, YU, YCL

Three-phase Electric motor, IE3, IE2

Three-Phase double speed motor, YD series

Electromagnetic Brake AC Motor YEJ/Y2EJ series

Change Speed Frequency Vataible Inverter Duty Motor YVP/YVF2 series

Custom motors are available.

2. Kinds of recycling equipment such as Scrap Wire stripping machine & Motor reccycling machine

3. Welding Machines:

MMA inverter Welding, ZX7 series

TIG Welding

MIG Welding

BX1 series AC Arc Welding

Bx6 Series AC Arc Welding

Bx6 series stainless body welding

Bx series wooden leg welding
