| Prod Model: |
VR-8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Feature: |
Single Phase Step Voltage Stabilizer |
| Material: |
Oil,CRGO,Copper |
| Color: |
Grey,Green or Customized |
| Install Method: |
Pole-Mounted Type |
| Package: |
Wooden Case |
| Phase Number: |
Single Phse Voltage Regulator |
| Brand Name: |
Farady |
| Radiator Design: |
Can Be Customized |
| Current Type: |
AC |
| Phase: |
Single Phase |
| Frequency: |
Industrial Frequency |
| Usage: |
SVR |
| Brand: |
Farady |
Product Description

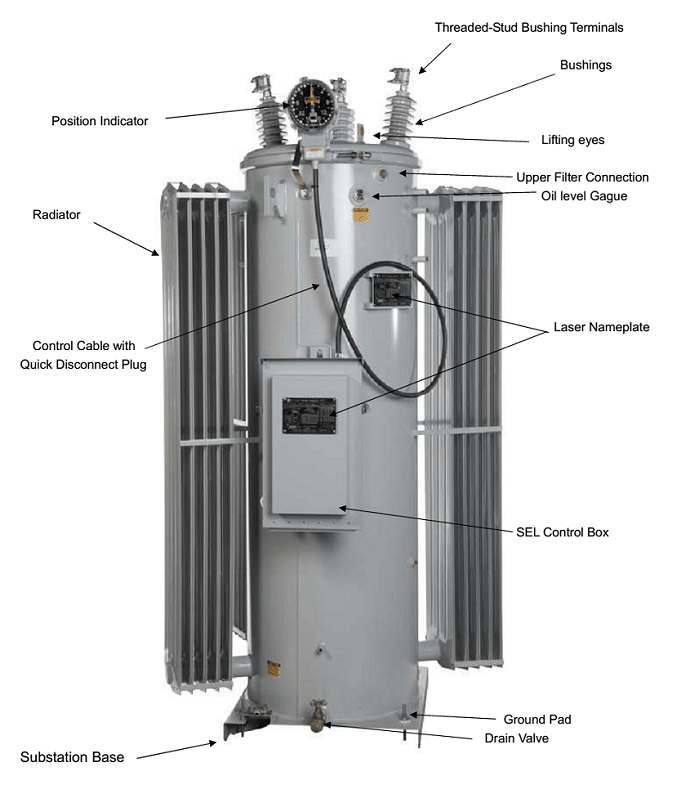

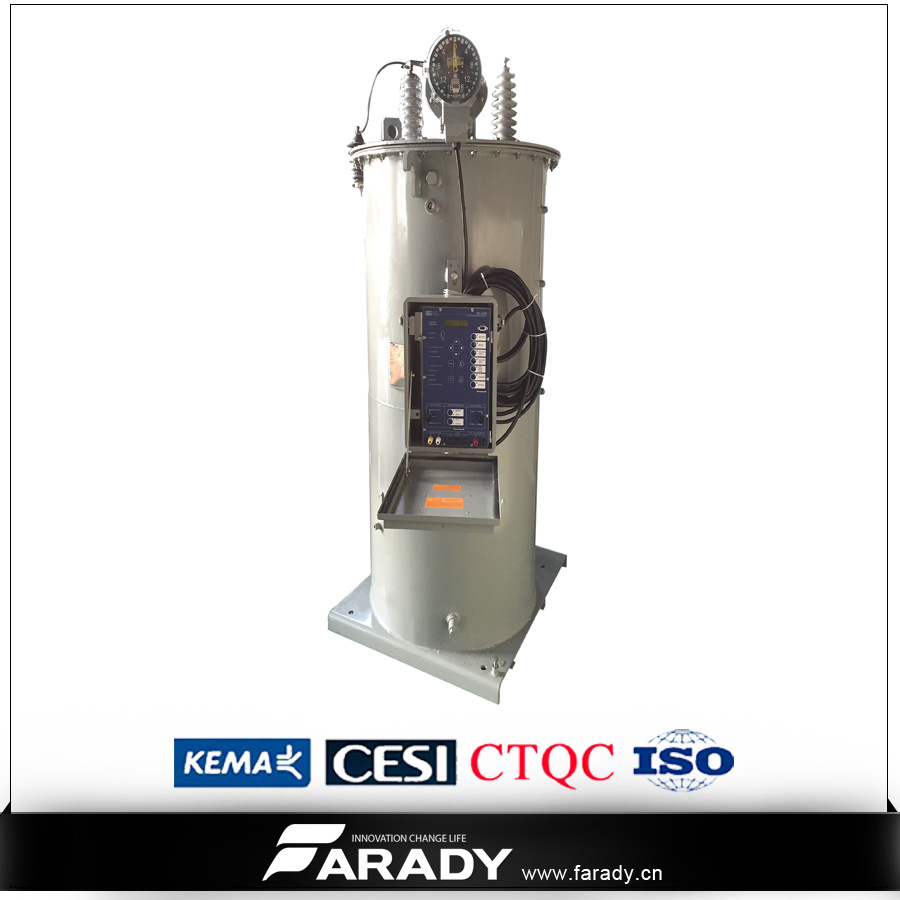

Single phase oil immersed high voltage step stabilizer VR-8Standard Features
SEL control box
Tap changer with motor and power supply
Position indicator with ADD-AMP adjustment
Two laser-etched nameplates
Lifting lugs
Oil drain valve and sampling device
Upper filter press connection
Oil sight gauge
Mounting provisions for shunt arresters
High-creep bushings with clamp-type connectors
Bolt-down provisions (overhead units)
Pole-type mounting brackets (overhead units)
Substation base (substation units)
External series arrester
Automatic pressure relief device
Control cabinet with removable front panel
Ratio correction transformer
Conformally coated circuit boards
Shunt arresters
optional Accessories
Extra-length control cables
Elevating structure
4-hole NEMA® H-spades
Cooling fans
Nameplates in alternate languages or metric units
Internal differential potential transformer for complete reverse power flow w/metering
SEL control accessories
Multi-phase functionality
Front panel overlays in alternate languages
Serial communications interfaces:
- RS232
- Fiber Optic - ST
- RS485
Ethernet communications interfaces:
- Fiber Optic - LC, MTRJ, ST, and SC
- Copper - RJ45
We are professional manufacturer of power transformer,electrical transformer,step voltage regulator,oil immersed and cast resin dry type transformer
ISO9001&14001 approval company
Each series transformer we manufacutured was type tested
Professional technical team ensure our product was always advanced amony your competitor
OUR PAKAGE:
Long time shipment & Seaworthy wooden box
Wooden package optional:
1,choose one unit/ wooden box
2,choose 2unit/ wooden box to save cost
OUR SERVICE:
1,Quick response in before sales period help you got order
2,Excellent service in production time let you know each step we made
3,Reliable quality solve you aftersale headache
4,Long period quality waranty ensure you can buy without hesitate
FAQ:
1,Why I buy Farady transformer
After compare quality,delivery and price you will find out answer
2,How is your farady electrical transformer waranty
12+12month after manufacture date,you total got 2 year waranty
3,Is that possible to be one of distributor of Farady Electric in my country
Yes,once you action is fast enough
4,More question......
Feel free to contact you you will get immediately reply
Founded in 1996, with a registered capital of 10 million USD, Zhejiang Farady Electric enjoys about 20 years' experience in MV transmission and distribution electrical equipment manufacture.
We are National Hi-tech enterprise, National Spark plan Program, State Hi-tech enterprise, State Innovation R&D center, Patent demonstrate company.
Farady is located in Liushi of Yueqing, Zhejiang, China, main products include: Transformer/RMU/switchgear/AVR/ACR and MV indoor and outdoor switch. All the products of ours have passed the national and international laboratory type test, Farady Electric was qualified supplier of China State Grid and China southern Grid
With ISO9001/14001/18001, we are strike for create value for our partner and customer
There is more than 20 distributors and agents worldwide already trust us and distribute Farady product there, we are not only export product, but also provide whole technology solution to help partner to establish local factory in our business line.
Today, boasting the value of products specialization, brand management, and business globalization, with the sprits of pragmatism, innovation, efficiency, and responsibility, Farady Company is dedicated to become the top name in the international business from China, and contributes its share to the transformation from the Made in China into the Invented in China.
WE COMMITTED TO PROVIDE A BETTER POWER
