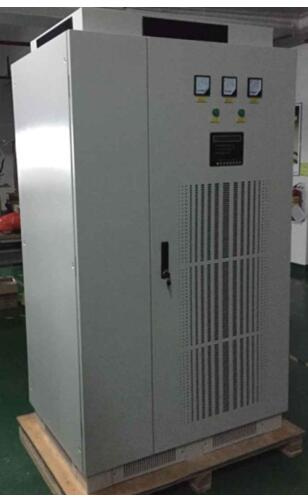

Single Phase Output Industrial Online UPS 10-100kVA

Name: Single Phase Output Industrial Online UPS 10-100kVA
Brand: all-electronics-online.com
SKU: 814947125
Availability: InStock
Rating: 5 (47 reviews)

Price:	US $ 2550-24000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CNI310
IP45 Degree:	Yes
Phase:	Three Phase
Type:	On-line
Protection:	Unbalanced Loads

Product Description

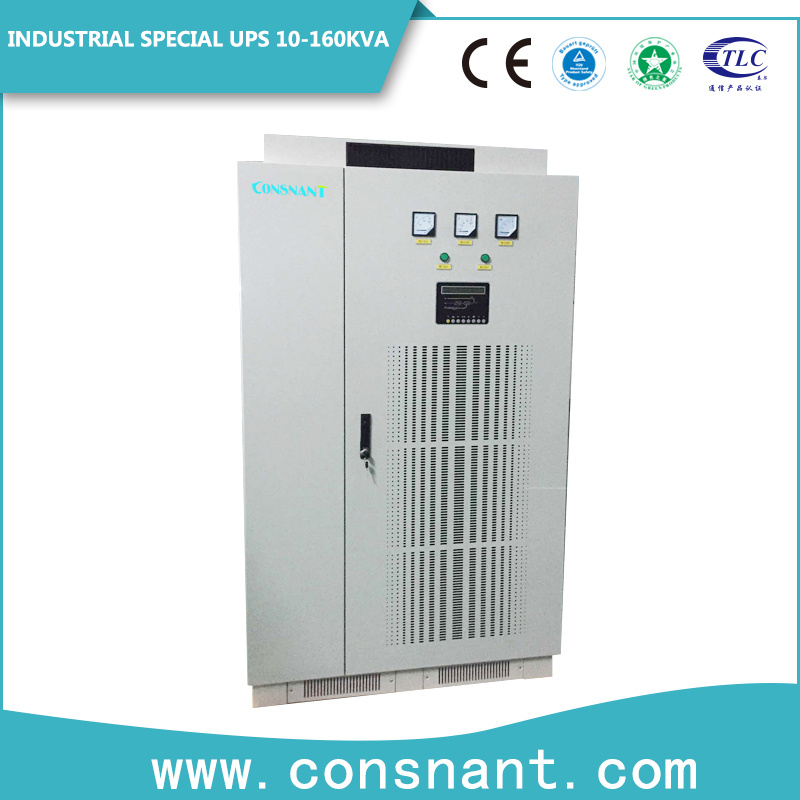

CNI310 Series Industrial Special Online UPS
10-100KVA (3Ph in/1Ph out)

Technical Specification:

Model Papacity(KVA)	10KVA	15KVA	20KVA	30KVA	40KVA	60KVA	80KVA		100KVA
Capacity	8KW	12KW	16KW	24KW	32KW	48KW	64KW		80KW
lnput
Rated voltage	400 Vac three-phase
Voltage range	±20%
Frequency range	50/60HZ±5%
Power factor	≥0.8
Current harmonic distortion	<5%with harmonic filter
Soft Start	0-100% in10"
Bypass Input
Rated voltage	230Vac single-phase
Permitted voltage range	±15%(selectable from ±10% to ±25% from front panel)
Rated frequency	50/60Hz
Permitted frequency range	±2%(selectable from ±1% to ±5% from front panel)
Standard features	BackFeed portection; split bypass line
Batteries
Type	Maintenance-free lead-acid VRLA AGM / GEL;NICd
Maximum recharge current(A)	0.2 X C10
DC Voltage	384VDC							432VDC
AC ripple voltage	<1%
Inverter output
Number of phases	1
Rated voltage(V)	230Vac single-phase
Regulation of the output voltage	220÷244Vac phase/neutral(from contril panel)
Crest factor(Ipeak/Irms)	3:1
Static stability	±1%
Dynamic stability	±5%
Frequency	50/60Hz configurable
Overload	110% 125% 150% of the rated current for 5h/10'/1'
Frequency stability	±0.05% on mains failure
System
Remote signaling	Volt free contacts
Remote controls	EPO and Bypass
Communication	RS232 + romote contacts
Operation temperature	0ºC/ + 40ºC
Relative humidity	<95% non condensing
Colour	Light grey (RAL 7035)
Noise	54dBA at 1m		60dBA at 1m		65dBA at 1m
Protection degree	IP42
Efficiency Smart Mode	up to 98%
Compliance	Safety:EN 62040-1-1(Directive 2006/95/EC); EMC:6200-2(Directive 2004/108/EC)
Weight(KG)N.W	200		220	230	290	340	440
Dimensions:(WxDxH)mm	6008001900
