Single Phase Output Industrial UPS 10-100kVA

Name: Single Phase Output Industrial UPS 10-100kVA
Brand: all-electronics-online.com
SKU: 812817365
Availability: InStock
Rating: 4.6 (47 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CNI310
IP45 Degree:	Yes
Phase:	Three Phase
Type:	On-line
Protection:	Unbalanced Loads

Product Description

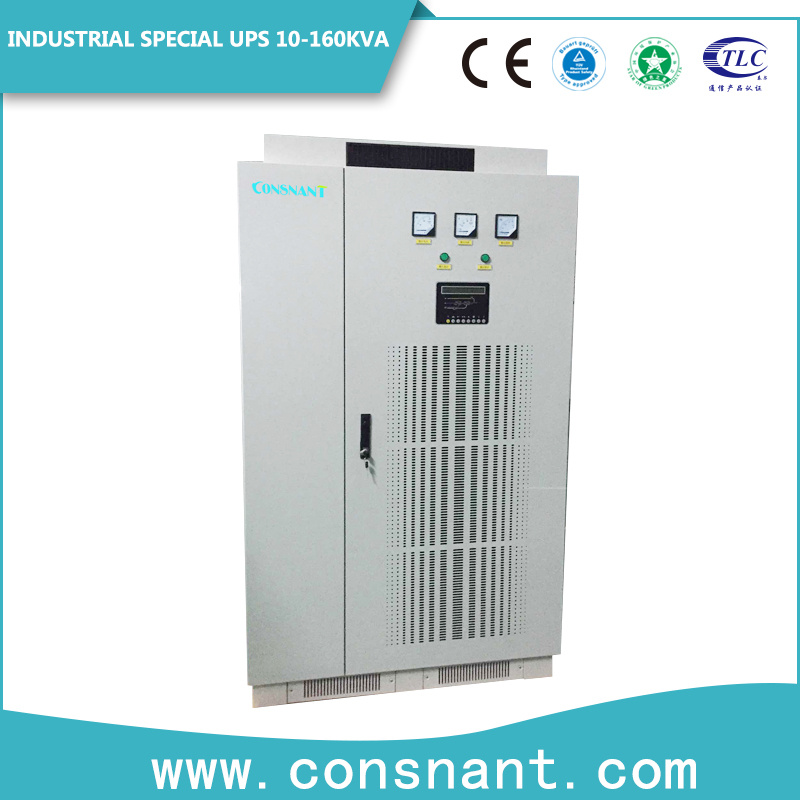

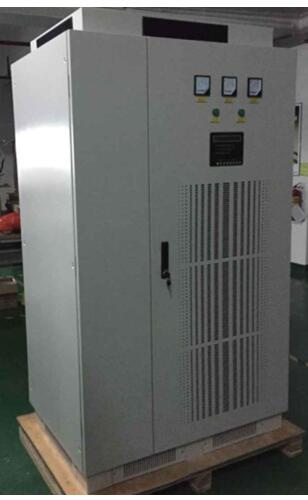

CNI310 Series Industrial Special Online UPS
10-100KVA (3Ph in/1Ph out)

Model
Mode(KVA)

100

120

160

Capacity(KW)

128

Input

Rated voltage

380/400/415Vac three-phase

Voltage range

±20%

Frequency range

50/60HZ±5%

Power factor

≥0.8

Current harmonic distortion

<5%with harmonic filter

Soft Start

0-100% in10"

Bypass Input

Rated voltage

400Vac three-phase

Permitted voltage range

±15%(selectable from ±10% to ±25% from front panel)

Rated frequency

50/60Hz

Permitted frequency range

±2%(selectable from ±1% to ±5% from front panel)

Standard features

BackFeed protection; split bypass line

Batteries

Type

Maintenance-free lead-acid VRLA AGM / GEL;NICd

Maximum recharge current(A)

0.2 X C10

DC Voltage

384VDC

480VDC

AC ripple voltage

<1%

Inverter output

Number of phases

3+N

Rated voltage(V)

280/400/415Vac

Regulation of the output voltage

348~424Vac phase/neutral(from control panel)

Crest factor(Ipeak/Irms)

3:1

Static stability

±1%

Dynamic stability

±5%

Frequency

50/60Hz configurable

Overload

110% 125% 150% of the rated current for 5h/10'/1'

Frequency stability

±0.05% on mains failure;±2%(selectable from ±1% to ±5%)with mains supply present

System

Remote signaling

Volt free contacts

Remote controls

EPO and Bypass

Communication

RS232 + remote contacts

Operation temperature

0ºC/ + 40ºC

Relative humidity

<95% non condensing

Protection degree

IP42

Efficiency Smart Mode

up to 98%

Compliance

Safety:EN 62040-1-1(Directive 2006/95/EC); EMC:6200-2(Directive 2004/108/EC)

Weight(KG)N.W

200

220

230

290

340

440

520

770

855

1300

Dimensions:
(W*D*H)mm

600*800*1900

1200*800*1900

Shenzhen CONSNANT Technology Co., Ltd. (simple name: CONSNANT) is a professional manufacturer engaged in research, development and production of UPS (Uninterruptible Power Supply) including the Modular UPS, Outdoor & Indoor UPS, Industrial special UPS, Low Frequency & High Frequency Online UPS and Solar Power System both for home appliance and telecom equipments.

Our product has obtained the CE, ISO 9001, ISO 14001 and local Chinese TLC certificates. Having reached good sales results in China, we are now expanding our sales overseas.

We are proud of the fact that most of our company's engineering staff is well-qualified and has gained experience in relevant fields more than 10 years. In order to protect your equipment from electrical supply network instability, we offer innovative solutions that obtain higher availability systems, improve efficiency and offer flexible solutions to meet specific needs and range of application. The UPS product is widely used in data and computing centers, finance institutions, banks, within industry and medical fields.

We welcome any kind of collaboration, will enjoy any opportunities of dealing with new costumers: From distributors to ultimate consumers, undertake both wholesale and retail orders, including the sale of finished goods or parts.

If you start work with us, you will not only get high-quality product at reasonable price, but also maintain the profitable conditions for further years.

We are located in the world-famous High-Tech center - Shenzhen city, China. Our factory is close to airport. If you are lucky to visit the city, you are kindly welcomed to visit our factory.
