| Prod Model: |
VR-8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Oil,CRGO,Copper |
| Transformer Type: |
Onan Power Transformer |
| Install Method: |
Pole-Mounted Type |
| Package: |
Wooden Case |
| Place Of Orignal: |
Zhejiang,China |
| Color: |
Gray,Green or Customized |
| Radiator Design: |
Can Be Customized |
| Application: |
Power |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Certification: |
Ctqc |
| Brand: |
Farady |
Product Description

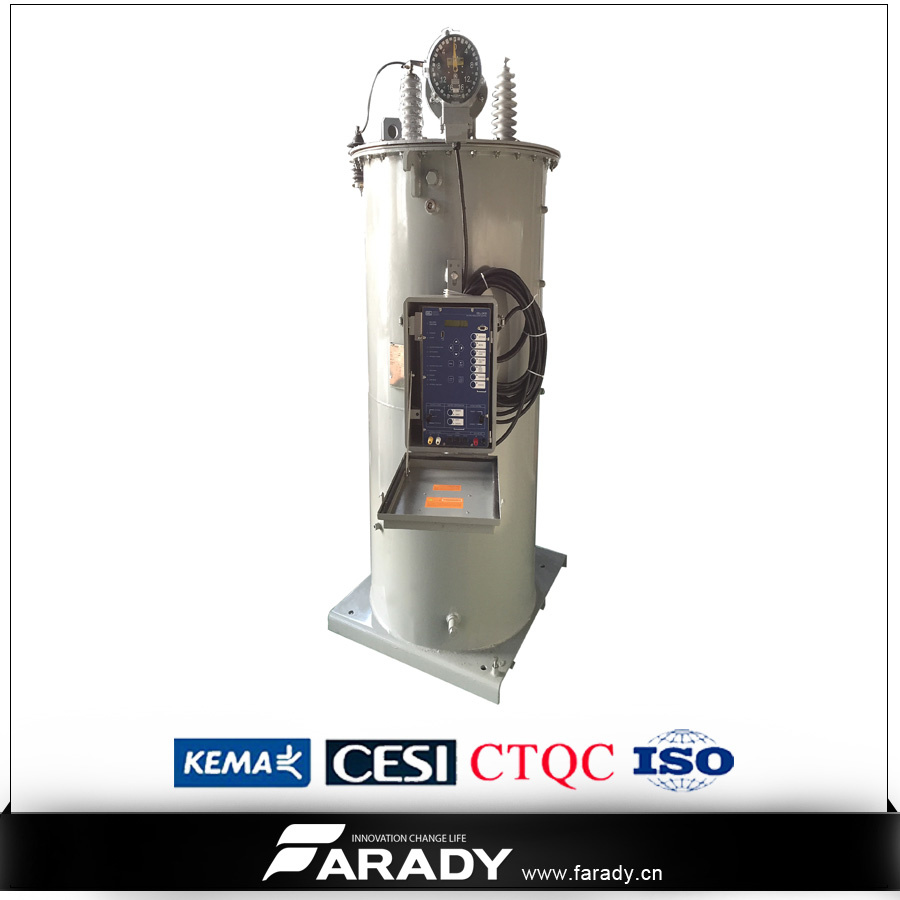

VR-8 single-phase step voltage regulators are tap-changing autotransformers designed to automati- cally regulate distribution line voltages in a range of plus or minus 10% in 32 steps of approximately 5/8% each. The following ratings are available: - Voltage: 2500 Volts (60 kV BIL) through 19920 Volts (150 kV BIL)
- Current: 50 through 1665 Amps
- KVA: 38.1 through 1000
- Frequency: 50 or 60 Hertz
Internal potential winding taps and/or an external ratio correction transformer are provided on all ratings so that each regulator may be applied within a range of system voltages.
A digital control system automatically operates the tap changer mechanism to maintain system voltage within desired limits. The control system is externally programmable to allow precise setting of control limits and provides sophisticated capabilities for special control require- ments, communication, and data logging.
Overhead type voltage regulators are supplied with support brackets for pole mounting and have bolt-down provisions for pad-mounted applications. Substation type voltage regulators are provided with rectangular substation bases. Elevating platforms are available as an option
We are professional manufacturer of power transformer,electrical transformer,step voltage regulator,oil immersed and cast resin dry type transformer
ISO9001&14001 approval company

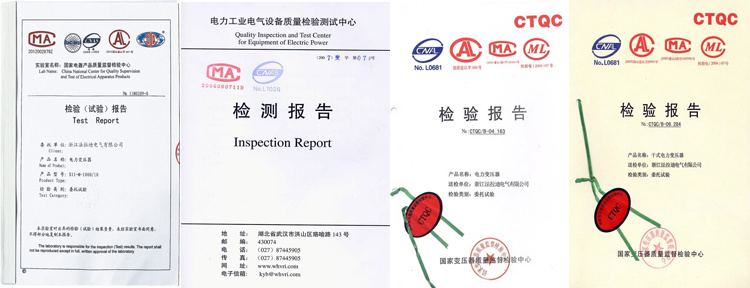

Each series transformer we manufacutured was type tested
Professional technical team ensure our product was always advanced amony your competitor
OUR PAKAGE:
Long time shipment & Seaworthy wooden box
Wooden package optional:
1,choose one unit/ wooden box
2,choose 2unit/ wooden box to save cost
OUR SERVICE:
1,Quick response in before sales period help you got order
2,Excellent service in production time let you know each step we made
3,Reliable quality solve you aftersale headache
4,Long period quality waranty ensure you can buy without hesitate
FAQ:
1,Why I buy Farady transformer
After compare quality,delivery and price you will find out answer
2,How is your farady electrical transformer waranty
12+12month after manufacture date,you total got 2 year waranty
3,Is that possible to be one of distributor of Farady Electric in my country
Yes,once you action is fast enough
4,More question......
Feel free to contact you you will get immediately reply
Founded in 1996, with a registered capital of 10 million USD, Zhejiang Farady Electric enjoys about 20 years' experience in MV transmission and distribution electrical equipment manufacture.
We are National Hi-tech enterprise, National Spark plan Program, State Hi-tech enterprise, State Innovation R&D center, Patent demonstrate company.
Farady is located in Liushi of Yueqing, Zhejiang, China, main products include: Transformer/RMU/switchgear/AVR/ACR and MV indoor and outdoor switch. All the products of ours have passed the national and international laboratory type test, Farady Electric was qualified supplier of China State Grid and China southern Grid
With ISO9001/14001/18001, we are strike for create value for our partner and customer
There is more than 20 distributors and agents worldwide already trust us and distribute Farady product there, we are not only export product, but also provide whole technology solution to help partner to establish local factory in our business line.
Today, boasting the value of products specialization, brand management, and business globalization, with the sprits of pragmatism, innovation, efficiency, and responsibility, Farady Company is dedicated to become the top name in the international business from China, and contributes its share to the transformation from the Made in China into the Invented in China.
WE COMMITTED TO PROVIDE A BETTER POWER
