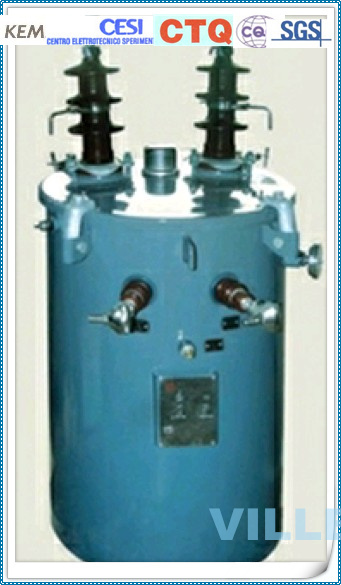

Single Phase Pole Mounted Distribution Dh15 Series Transformer
| Price: |
US $ 1000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
DH15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
10kv/(0.22~0.24) |
| Tapping Range: |
± 5%; ± 2*2.5% |
| Frequency: |
50Hz |
| Vector Group: |
: II0 or II6 |
| Operation Environment: |
Outdoor |
| Application: |
Audio |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Separated Winding Transformer |
| Brand: |
Ville |
Product Description
Product model: DH15-M or D11-M Rated voltage:10kV/(0.22~0.24) or 2×(0.22~0.24) kV (or the voltage proposed by the user) Tapping range: ±5%; ±2*2.5% Frequency: 50Hz Vector group: II0 or II6 Operation environment: outdoor
In order to meet the various demands of customers, the Company has design D11-M and DH15-M two series single phase fully-sealed transformer. D11-M transformer adopts laminated core and is characterized by low loss, low noise level and others; DH15-M transformer adopts amorphous alloy core which further reduces the no-load losses of the transformer. Table below specifies technical parameters and dimensions of the two series of transformers.
Load regulating power transformer is developed and produced according to the requirement of the market. It can be widely used in urban & rural, industrial & agricultural power network, which has a great significance for energy-saving and environment protection. The lamination method of this product's iron core is ladder form, instead of the traditional iron core lamination technology, which improves the magnetic circuit distribution inside the iron core. It can be seen as a revolution of transformer iron core manufacturing. Compared with the traditional, the no-load loss, no-load current and noise of the new one decrease 20% respectively, and load loss decreases 10%. The new product applies CAD, with advance design, reasonable structure, and excellent materials. Each index complies with the standards of GB1094-1996 "Power Transformer" GB/T6451-1999 "Technical Parameters and Requirements of Three-phase Oil-immersed Type Power Transformer". Now its level is n the leading position of our country.
Features:
High reliability, advanced level of performance, economic indicators and reasonable;
Using phase-shaped core of three joints, curing paint brushing the surface to reduce wear and tear and noise;
Winding structure of a new oil road design is reasonable, with the new insulation to improve the mechanical strength and the ability to engage in short-circuit;
Tank forms, beautiful, generous.
Product model: DH15-M or D11-M
Rated Voltage:10kV/(0.22~0.24) or 2×(0.22~0.24) kV (or the voltage proposed by the user)
Tapping range: ±5%; ±2*2.5%
Frequency: 50Hz
Vector group: II0 or II6
Operation environment: outdoor
In order to meet the various demands of customers, the Company has design D11-M and DH15-M two series single phase fully-sealed transformer. D11-M transformer adopts laminated core and is characterized by low loss, low noise level and others; DH15-M transformer adopts amorphous alloy core which further reduces the no-load losses of the transformer. Table below specifies technical parameters and dimensions of the two series of transformers.
FAQ For You
| 1. Q: | What is your delivery time ? |
| A: | Depend on the type of transformer. |
| 2. Q: | What is your payment term? |
| A: | 30% advance by T/T , 70% before delivery by T/T or L/C or we can discuss about it. |
| 3. Q: | What kind of starndard you follow? |
| A: | IEC, ANSI, CSA, |
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier
