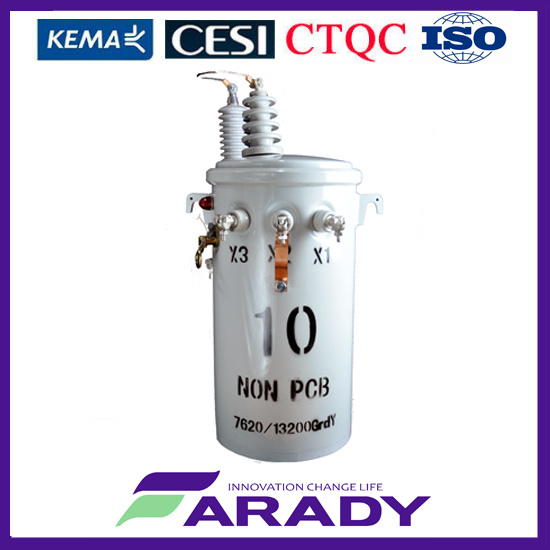

Single Phase Polemounted Distribution Transformer (D13&DH15)

Prod Model:	D13&DH15
Coil Structure:	Wound Core
Item:	Single Phase Polemounted Distribution Transformer
Product Feature:	Oil Immsered Transformer
Material:	CRGO, Copper, Minral Oil
Color:	Grey or Optional
Tank Design:	Cylinder
Rated Voltage:	13200/7620
Rated Capacity:	37.5kVA
Model Number:	D13&Dh15
Core Strument:	Wound Core
Application:	Electronic
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Two-winding Transformer
Brand:	Farady

Product Description

Product Description
Farady power transformer Meets ANS/IEEE/CSA standard single phase transformer tank coating exceeds ANSI C57.12.31single pole transformer cover with a minimum dielectric strength of 8 kVsingle-phase transformer tin-plated high-and low-voltage bushing terminals to accommodate aluminum or copper conductors 10kva single phase pole mounted transformers laser-scribed anodized aluminum nameplate 25kva single phase transformer price electrical grade mineral oil
single phase step down transformer with heavy-duty lifting lugs and hanger brackets per ANSI/CSA requirements


Farady power transformer 10kva single pole transformer which is single phase pole mounted transformers(also call single phase transformer,single-phase transformer or single pole transformer have been field proven to provide reliability quality single phase step down transformer in various regions of the world, even in the harshest climates. Our power transformer 10kva single phase pole mounted transformers flexible design concept and multiple manufacturing facilities allow us to meet special customer requirements for single phase step down transformer, with short lead times in single phase pole mounted transformers and at an affordable price at single phase transformer,single-phase transformer or single pole transformer. Those single phase transformer,single-phase transformer or single pole transformer product sheet lists many of the standard features and benefits of our single phase transformer,single-phase transformer,single pole transformer. But for complete  details regarding specific requirements of power transformer 10kva single phase step down transformer, please contact power transformer 10kva single pole transformer sale dept

Technical
D13 Series with C.R.G.O wound core

Model	Rated Capaity   (kva)	Primary rating (v)	Tapping Range(%)	Secondary Rating (V)	Loss (w)
					No load loss	Load   loss
D13-3	3	34500/19920 33000/17321 20000/11547 13200/7620 11000/6350 or others	±2*2.5%  or others	120-240 240-480 250-500 or others	9	45
D13-5	5				19	75
D13-10	10				36	120
D13-15	15				50	195
D13-25	25				80	290
D13-37.5	37.5				105	360
D13-50	50				135	500
D13-75	75				190	650
D13-100	100				210	850
D13-167	167				350	1410
D13-250	250				500	2000
D13-333	333				650	2500

DH15 Series with  core

Model	Rated Capaity   (kva)	Primary rating (v)	Tapping Range(%)	Secondary Rating (V)	Loss (w)
					No load loss	Load   loss
D15-3	3	34500/19920 33000/17321 20000/11547 13200/7620 11000/6350 or others	±2*2.5%  or others	120-240 240-480 250-500 or others	9	45
D15-5	5				19	75
D15-10	10				36	120
D15-15	15				50	195
D15-25	25				80	290
D15-37.5	37.5				105	360
D15-50	50				135	500
D15-75	75				190	650
D15-100	100				210	850
D15-167	167				350	1410
D15-250	250				500	2000
D15-333	333				650	2500

Our Company
Founded in 2006, with a registered capital of 10 million USD, Farady transformer enjoys about 10 years experience in distribution transformer manufacture.
Farady transformer is located in Liushi of Yueqing, a costal city, which is often referred as the Electric Products Capital in China. Boardered by the State road, highway, and high-speed railway, close to SHANGHAI/NINGBO/WENZHOU sea ports, and the Yongqiang International airport in Wenzhou, we enjoy a great advantage in transportation which thus can guarantee our clients the fast shipping.

Our main products include: step voltage regulator up to 35kV, conventional and complete self-protection transformer, single phase pad mounted transformer, withstand high overload transformer, capacity-adjustable transformer, amorphous transformer, energy-saving transformer, etc green transformer. All the products of ours have passed the national laboratory type test, which also wins the STATE GRID of China as one of our contractors.

The company is equipped with the state-of-the-art technology, sophisticated facilities, ISO9001 quality management system certification and ISO14001 environment certification approval.

We also enjoy the Certification of New Hi-tech Enterprises, National Spark Program, and own more than 70 item transformer patents, with which our products are not only popular in the domestic market but also exported to Southeast Asia, South America, Africa and the middle east.

Today, boasting the value of products specialization, brand management, and business globalization, with the sprits of pragmatism, innovation, efficiency, and responsibility, Farady Company is dedicated to become the biggest name in the international business of transformers in China, and contributes its share to the transformation from the Made in China into the Invented in China.


Our Service
1. Quick response in before sales period help you got order
2. Excellent service in production time let you know each step we made
3. Reliable quality solve you aftersale headache
4. Long quality waranty ensure you can buy without hesitate



FAQ
1. Why I buy Farady transformer
   After compare quality,delivery and price you will find out answer

2. How is your farady electrical transformer waranty
   12+12month after manufacture date,you total got 2 year waranty

3. Is that possible to be one of distributor of Farady Electric in my country
    Yes,once you action is fast enough

4. More question......
    Feel free to contact you you will get immediately reply
