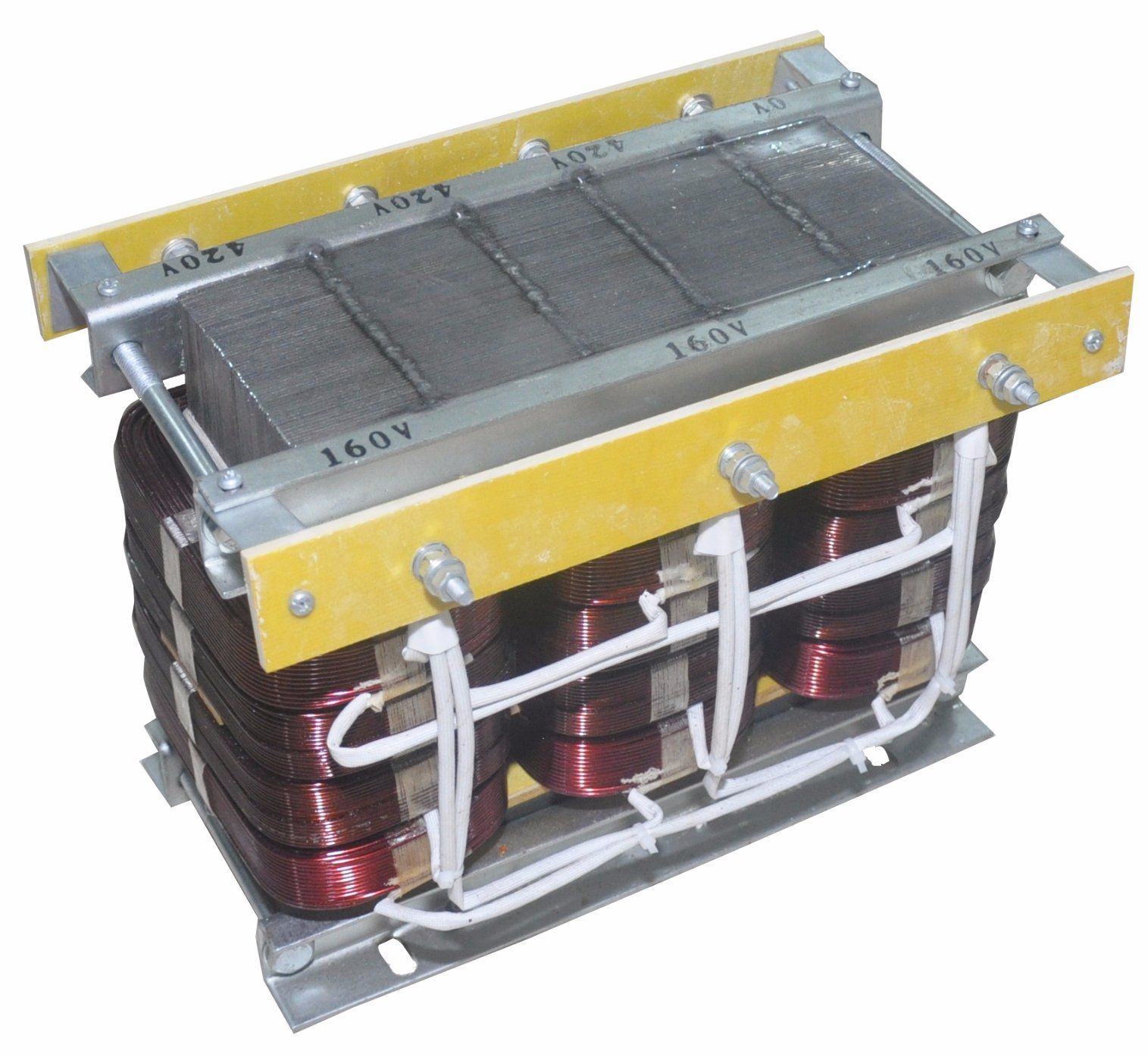

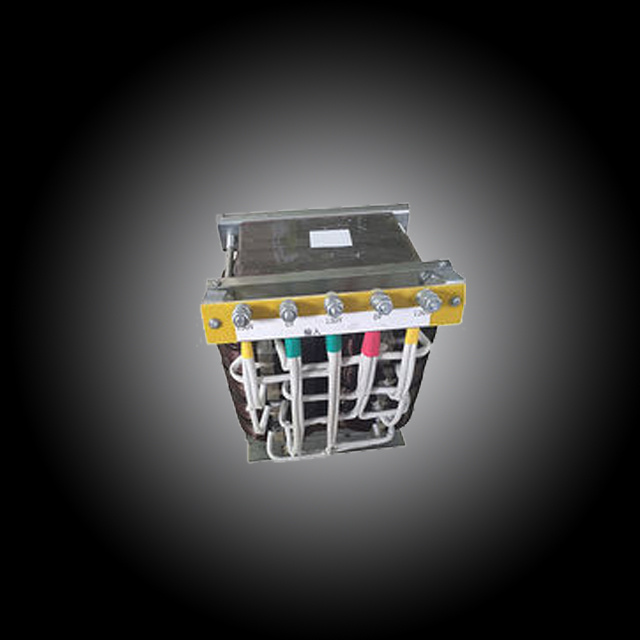

Single Phase Power Frequency Transformer for Pure Sine Wave Inverter System

Prod Model:	1kva to 10kva
Application:	Audio
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Brand:	Bangzhao or OEM

Product Description

single phase power frequency transformer for pure sine wave inverter system
1.General introduction:

Transformer is made by high quality of material and advanced workmanship of technology.

This series of transformer not only have the ability to adjust the pressure, but also can isolate the three times of harmonic produced by power grid to equipment and protect to reduce the fever produced by machine and the lifetime of Insulation materials. They can be equipped and used directly on load of different natures and can be used in the work sites that Utility the voltage needs to be change or isolated safely.

These parameters or parts of transformer including input and output voltage (Single-phase, three-phase, more ways of input and output and more), the distribution of volume of Quad tap, outside case (equipped or not) can be designed and produced elaborately according to the requests of clients.

2.Main features:
1) Mainly used for electrical network voltage conversion in injection machines and more.
2) Also used for isolated equipments
3) Can protect and reduces the harm rate in switching power.
4) It has isolated transformer and autotransformer
5) The isolated type is more safe, and the other is more economic
we can design and produce according to customer's requirement. We can make all kinds of transfomers including EI transformer, toroidal transformer, high frequency transformer, We can do the productd as you request.

3. Description of the transformer material:
1.Core
using Taiwan zhuang gang high quality's high silicon and silicon-steel plates fold outfit, the main material is 0.35 thick H18, H14, H12, Z11's high-quality silicon steel, we can according to the requirements of room requirements and conditions of use, choose the most suitable material, design of the transformer to achieve the best performance.(Conventional materials is Taiwan Zhuang Gang 0.35Thick H18 Film)




Phase	One-phase	three phase
specifications	50VA-300KVA	10KVA-2000KVA
Input voltage	110V-240V AC	380V AC
Output voltage	Different configurations are possible, depending on the user's needs and requirements
frequency	50/60Hz
Link way	Y/ Y or Y/ combination
efficiency	≥98%
Insulation class	F,H,HC ,C
Overload	Allow more than 1.2 times rated load work continuously 4 hours
Cooling way	Natural cooling
Noise	≤35dB(in one meter)
Temperature	≤65°C
Insulation resistance	≥150MΩ
Electric strength	3000VAC/1min
Life	20 years
Work environment	temperature:-20~+40°C humidity:≤93%RH (No condensation)
Workplace	No corrosive gas and electric dust
Standard	Products meet VDE0550,IEC439,JB5555,GB226 standards and other international
