Single-Phase Relay Switches (60A)

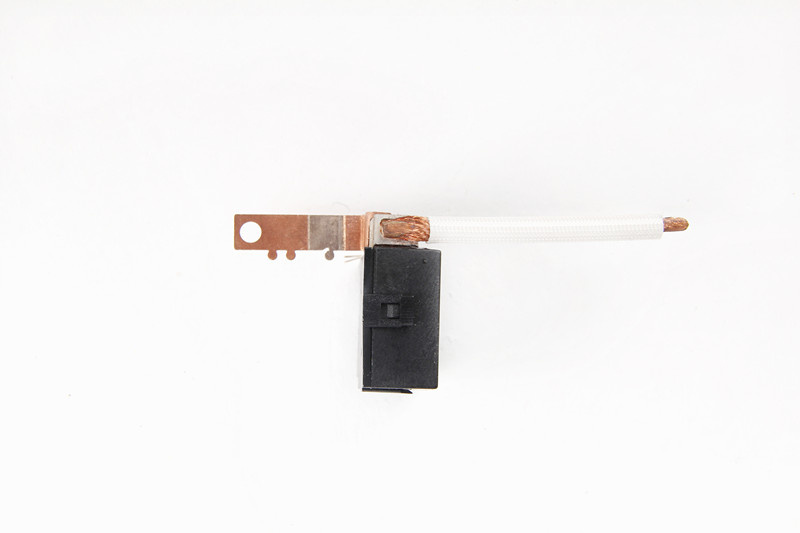

Name: Single-Phase Relay Switches (60A)
Brand: all-electronics-online.com
SKU: 706965235
Availability: InStock
Rating: 4.9 (135 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Relay 60A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Appliance: Widely appliance to single phase energy meter, combination switch, streetlights, industrial automation control.

Feature: 1. Contact switch current 60A 2. Compression between contact and coil is 4KV 3. Using metal magnetic shield structure, relay against strong magnetic interference 4. Energy conservation and environmental protection

Dimension: 39.5× 17.9× 30.0mm

Specification Data:
Coil Rated Voltage (V)	9	12
Coil Resistance(Ω )± 10%	80	145
Coil Pulse Drive Voltage Amplitude	≥ 120% Rated Voltage
Coil Pulse Drive Width	40mS Min 100mS Max
Coil Power	Double Coil 2/2W
Rate Switch Current	60A
Rate Switch Voltage	250VAC
Rate Current Contact Pressure drop	60mV Max
Contact Switch Time	20mS Max
Ambient Temp	-40-80° C
Vibration	10-55Hz Single Amplitude 0.75mm
Impact	147 m/S²
Relative Humidity	45%-85%
Life(Mechanical)	≥ 1× 10
Life(Electrical)	≥ 1× 104
Max Operate Frequency	600 OPS/H
Dielectric Strength(Between open contact)	1500VAC 50/60Hz
Dielectric Strength(Between coil & contact)	3750VAC 50/60Hz
Insulation Resistance	1000MΩ (500VDC)
