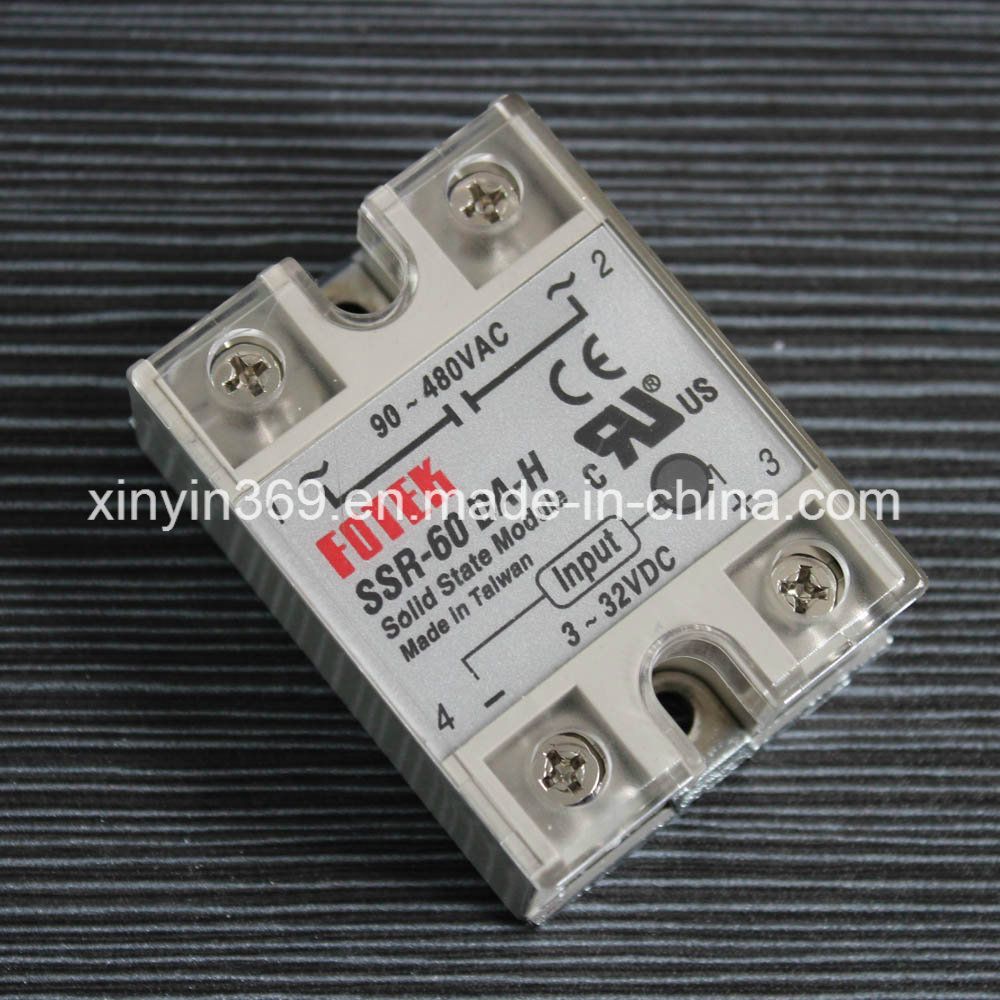

Single Phase SSR Solid State Relay SSR-60da

Single Phase SSR Solid State Relay SSR-60da
Price: US $ 5.4/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SSR-60DA
Control Voltage: 3-32VDC
Load Voltage: 90-480VAC
Load Current: 60A
Net Weight: 1.1kgs/Box

Product Description

TypeTerminal Type
ModelSSR-60DASSR-75DA
Rated Load Current60A75A
Input Data
Operating Voltage3~32VDC
Min. ON/OFF VoltageON>2.4V , OFF <1.0V
Trigger Current7.5mA / 12V
Control MethodZero Cross Trigger
Output Data
Operating Voltage24~380VAC
Min. Block Voltage600VAC (Repetive)
Voltage Drop1.6V / 25°C
Max. One Cycle Surge550A820A
Leakage Current6.0mA6.0mA
Response TimeON<10ms , OFF<10ms
General Data
Dielectric StrengthOver 2.5KVAC / 1min.
Isolation StrengthOver 50MΩ / 500VDC
Operating Temperature-20°C ~ + 80°C
Housing MaterialIntensive ABS
WeightAppr. 125g



Yueqing Trihero Elecric is located in "Capital of China's low-voltage electrical appliances, " the Liuzhou City, is a collection of scientific research, development, production and sales as one of the non-regional joint-stock enterprises.

The company mainly produces relays, instruments, sensors, circuit breakers, frequency inverter and other products, has now extended to manufacturing plastic products, filter paper, and other diversified development. The company's industrial park covers an area of 7, 300 square meters, with a number of joint ventures and holding enterprises, its brand "Trihero" is in the industry favored. The company's quality system complies with international standards, in the same industry enterprises is the first to pass ISO9001: 2000 international quality management system and the CE, RoHS certifications.

After years of operation, our products are sold to more than 60 countries, we have built many overseas network with the help of local partners to meet the customer diversified demands.

With the development of society, we will work harder to provide customers with reliable, stable products and a full range of professional services. Our goal is: To become the user trust, with first-class scientific research and development capabilities of high-tech enterprises, and always pragmatic innovation, forge ahead spirit, to create a century Sanying and make unremitting efforts!
