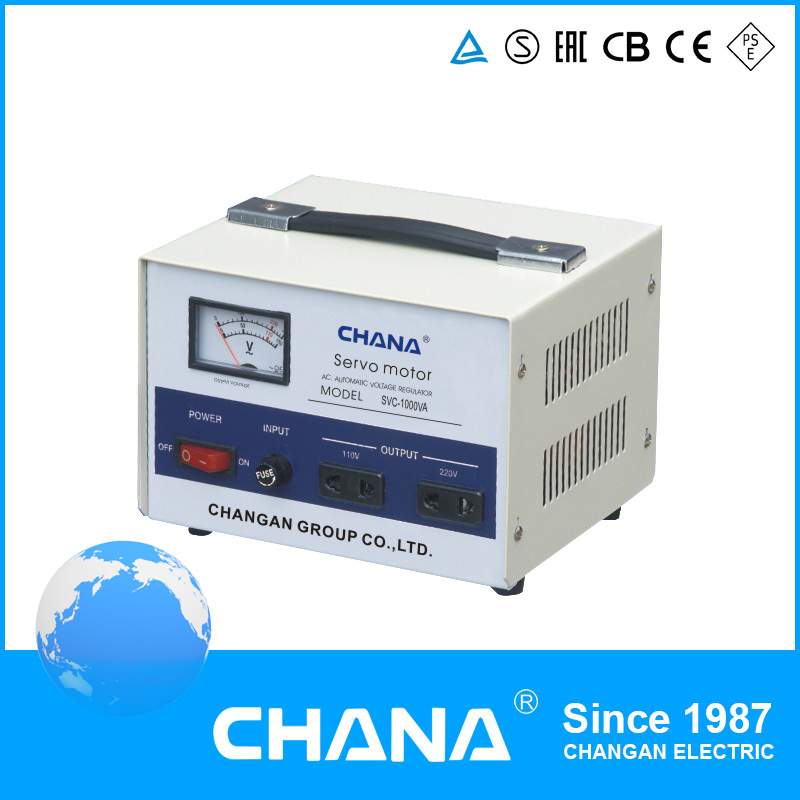

Single Phase SVC 3kVA AC Automatic Voltage Regulator Stabilizer

Name: Single Phase SVC 3kVA AC Automatic Voltage Regulator Stabilizer
Brand: all-electronics-online.com
SKU: 798069475
Availability: InStock
Rating: 4.9 (129 reviews)

Price:	US $ 20/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SVC-3KVA
Current Type:	AC
Phase:	Single Phase
Usage:	SVC
Frequency:	Low Frequency
Brand:	Chana

Product Description

Application
Computer, Testing equipment, Lighting system, Communication system, Medical equipment, Industrial automatic equipment, Stereo sound equipment and home appliance etc.
Technical Data
Feature
The series product is a servo-motor type high accuracy household voltage stabilizer.
Low power consumption, reliable work, high accuracy of stabilization, and good for
use in regions where the net voltage is much fluctuating.
Main Technical Data
Phase no.: Single-phase
Input voltage: 160V~250V
Output voltage: 220V/110V± 2.5%(≤5000VA With 110±2.5%)
Frequency: 50Hz/60Hz
Adjustable time: <1sec.against 10% input voltage deviation
Efficiency: >90%
Ambient temperature: -10ºC ~+40ºC
Relative humidity: <95%
Temperature rise: < 60 ºC
Waveform distortion: Non additional waveform distortion
Withstand voltage: 1500V/min
Insulation resistance: > 2MΩ
With over current protector
With output voltage indication

Application
Computer, Testing equipment, Lighting system, Communication system, Medical equipment, Industrial automatic equipment, Stereo sound equipment etc.
Technical Data
Feature
The series product is a servo-motor type high accuracy voltage stabilizer. Low power consumption, reliable work, high accuracy of stabilization, andgood for in regions where the net voltage is much fluctuating. The indispensable voltage Stabilizer for factories and enterprises.
Main Technical Data
Phase no.: Three-phase four wire system
Input voltage: Phase voltage: 160V~250V
                          Line voltage: 280V~430V
Output voltage: Phase voltage: 220V±2.5%
                            Line voltage: 380V±2.5%
Frequency: 50Hz/60Hz
Adjustable time: <1sec.against 10% input voltage deviation
Efficiency: >90%
Ambient temperature: -10 ºC~+40ºC
Relative humidity: <95%
Temperature rise: < 60 ºC
Waveform distortion: Non additional waveform distortion
Withstand voltage: 1500V/min
Insulation resistance: > 2MΩ
Main Technical Data

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
