Single Phase Three Phase Motor Frequency Inverter VFD Afd VSD

Name: Single Phase Three Phase Motor Frequency Inverter VFD Afd VSD
Brand: all-electronics-online.com
SKU: 813168315
Availability: InStock
Rating: 4.8 (83 reviews)

Price:	US $ 81/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Z900E
Item Name:	Three Phase Mini Frequency Inverter
Input Power 380V:	0.75-315kw
Input Power 220V:	0.4-3.7kw
Output Current:	2.4A-300A
Digital Setting:	0.01Hz
Speed Range:	1:100(Sfvc)
Maximum Frequency:	V/F Control(0-3200Hz);Vector Control(0-320Hz)
Analog Setting:	Maximum Frequency X 0.025%
Communication Methods:	RS485
Timing Control:	Time Range:(0.0-6500.0 Minutes
Application:	High Frequency Converter Transducer
Output Type:	Triple
Switch Mode:	PWM Control
Main Circuit Type:	Voltage
Principle Of Work:	V/F or Vector Control
Voltage Of Power Supply:	220V/380V
Brand:	Machtric

Product Description

Single Phase Three Phase Motor Frequency Inverter VFD AFD VSD

1.Product Specification:

Item	Z900E
tandard Function	Control mode	Sensorless flux vector control(SFVC) Voltage/Frequency(V/F) control
	Maximum frequency	Vector control:0-320Hz V/F control:0-3200Hz
	Carrier frequency	1-16kHz The carrier frequency is automatically adjusted based on the load features.
	Input frequency resolution	Digital setting:0.01Hz Analog setting:maximum frequency x 0.025%
	Startup torque	G type:0.5 Hz/150%(SFVC) P type:0.5 Hz/100%
	Speed range	1:100(SFVC)
	Speed stability accuracy	±0.5%(SFVC)
	Torque control accuracy	± 5% (CLVC)
	Overload capacity	G type:60s for 150% of the rated current,3s for 180% of the rated current. P type:60s for 120% of the rated current,3s for 150% of the rated current.
	Torque boost	Fixed boost Customized boost 0.1%-30.0%
	V/F Curve	Straight-line V/F curve Multi-point V/F curve N-power V/F curve(1.2-power,1.4-power,1.6-power,1.8-power,square
	V/F separation	Two types:complete separation;half separation
	Ramp mode	Straight-line ramp S-curve ramp Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
	DC braking	DC braking frequency:0.00 Hz to maximum frequency Braking time:0.0-100.0s Braking action current value:0.0%-100%
	JOG control	JOG frequency range:0.00-50.00Hz JOG acceleration/deceleration time:0.0-6500.s
	Onboard multiple	It implements up to 16 speeds via the simple PLC function or combination of X terminal states
	Onboard PID	It realizes process-controlled closed loop control systerm easily
	Auto voltage regulation(AVR)	It can keep constant output voltage automatically when the main voltage changes
	Overvoltage/Overcurrent stall control	The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/over current
	Torque limit and control	It can limit the torque automatically and prevent frquent over current tripping during the running process
	Instantaneous stop doesn't stop	The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time
	Rapid current limit	It helps to avoid frequent over current faults of the AC drive
	High performace	Control of asynchronous motor is implemented throgh the high-performance current vector Control technology
	Timing control	Time range:0.0-6500.0 minutes
	Communication methods	RS485
	Running command channel	Given by the panel,control terminals.Serial communication port,can be switched by many ways
	Frequency source	10 kinds of frequency source,given by Digital analog voltage,analog current,Pulse,serial port.can be switched by man ways.
	Auxiliary frequency source	10 kinds of Frequency source,can easily realize Micro ajustment,frequency Synthesizer.
Input and output	Input terminal	6 digitak input terinals,one of which supports up to100kHz high-speed pulse input. 2 analog input terminal,one of which only supports 0-10v voltage input and the other supports 0-10v voltage input or 4-20 mA current input
Input and output	Output termianl	1 digital output terminal 1 relay output terminal 1 analog output termianl:that supports 0-20 mA current output or 0-10V voltage ouput
Operation on the operation panel	LED display	It displays the parameters
	Key locking and cuntion selection	It can lock the keys partially or completely and define the function range of some keys so as to prevent mis-function
	Protection mode	Motor short-circuit detection at power-on,output phase loss protection,over-curent protection,over-voltage protection,under voltage protection,overheat protection and overload protection.
Environment	Installation location	Indoor,avoid direct sunlight,dust,corrosive gas,combustible gas,oil smoke,vapour drip or salt
Environment	Altitude	Lower than 1000m(Lower the grades when using higher then 1000m)
	Ambient temperature	-10°C~40°C(Lower the grades if the ambient temperature is between 40°C and 50°C)
	Humidity	Less than 95%RH,without condensing
	Vibration	Less than 5.9 m/s² (0.6g)
	Storage temperature	-20°C~60°C

2.Guidence:
1PHAC220V±15% 50/60Hz

Model	Rated output power	Rated Output Current	Overload Capacity	Applicable motor
Model	(KW)	(A)	(60s)(A)	(KW)
Z900-2S0.4GE	0.4	5.4	3.75	0.4
Z900-2S0.75GE	0.75	7.2	7.5	0.75
Z900-2S1.5GE	1.5	10	10.5	1.5
Z900-2S3.7GE	3.7	16	10.0	3.7
Z900-2S5.5GE	5.5	21	20	5.5
Z900-2S7.5GE	7.5	31	30	7.5

3 PHAC 380V±15% 50/60Hz

Model	Rated output power	Rated Output Current	Overload Capacity	Applicable motor
Model	(KW)	(A)	(60s)(A)	(KW)
Z900-4T0.4GE	0.4	3.4	1.2	0.4
Z900-4T0.75GE	0.75	3.8	2.5	0.75
Z900-4T1.5GE	1.5	5	3.7	1.5
Z900-4T2.2GE	2.2	5.8	5.0	2.2
Z900-4T3.7GE/5.5PE	3.7/5.5	10.0/15.0	9.0/13.0	3.7/5.5
Z900-4T5.5GE	5.5	15	13	5.5
Z900-4T7.5GE/11PE	7.5	20	17	7.5
Z900-4T11GE/15PE	11/15	26/35	25/32	11/15
Z900-4T15GE/18.5PE	15/18.5	35/38	32/37	15/18.5
Z900-4T18.5GE/22PE	18.5/22	38/46	37/45	18..5/22
Z900-4T22GE/30PE	22/30	46/62	45/60	22/30
Z900-4T30GE/37PE	30/37	62/76	60/75	30/37
Z900-4T37GE/45PE	37/45	76/90	75/90	37/45
Z900-4T45GE/55PE	45/55	90/105	90/110	45/55
Z9010-4T55GE	55	105	110	55
Z900-4T75PE	75	140	150	75
Z900-4T75GE/90E	75/90	140/160	150/176	75/90
Z900-4T90GE/110PE	90/110	160/210	176/210	90/110
Z900-4T110GE/132PE	110/132	210/240	210/253	110/132
Z900-4T132GE/160PE	132/160	240/290	253/300	132/160
Z900-4T160GE/185PE	160/185	290/330	300/340	160/185

3.Application:

Food machinery-Feeder, mixer, bag filling machines, pastry forming machine…
Woodworking Machinery-Polishing machine, grinding machine, carving machine…
Textile Machinery-winding machine, fabric inspection machine…
Packaging Machinery-Liquid filling machine, pharmaceutical filling machine…
Other: Stone cutting machine…
Blowing machine, Water-pump-housetop/a fan to fill and exhaust gas, small
Pump for water supply
Printing equipment-offset
Conveyor belt-Small conveyor belt, common conveyor belt
Feeding equipment-Tool machine, winding machines, weaving machines equipment
Rubber and plastic industry-Sealing machine, various types of small machine
General business-Common household, air conditioning, automatic door

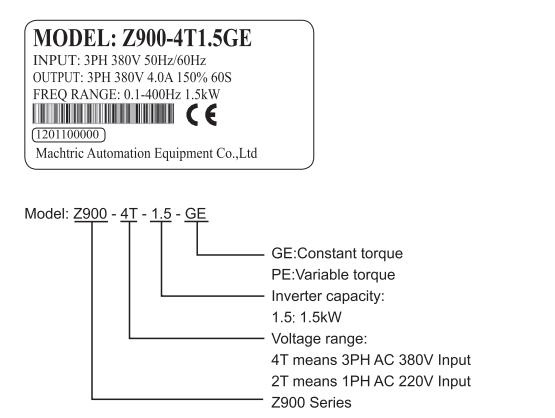

4.The Description of Name Plate:

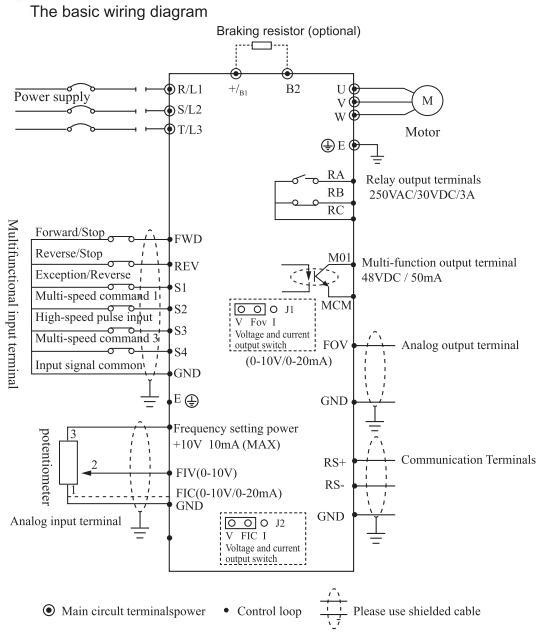

5.Basic Wiring Diagram:

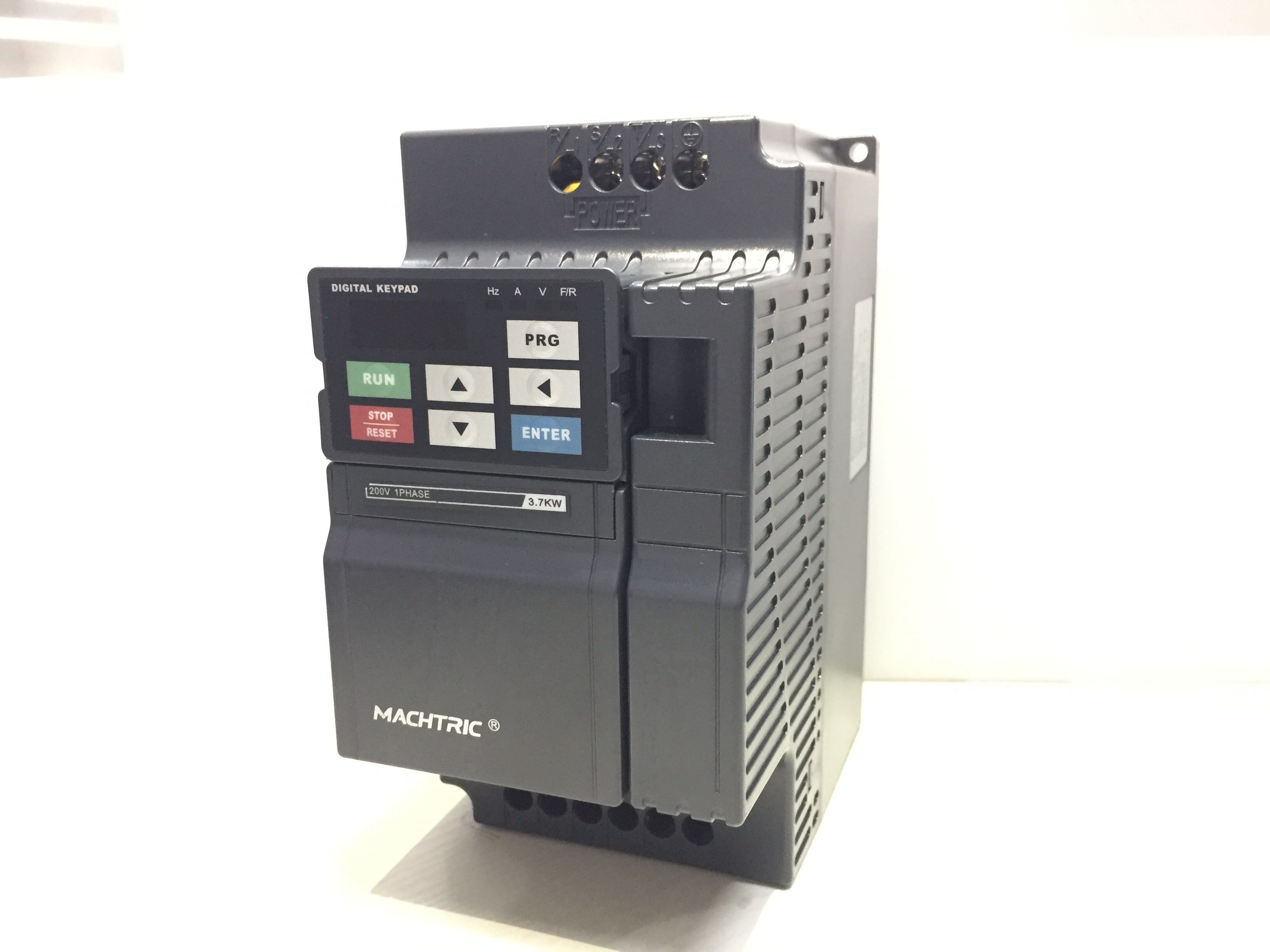

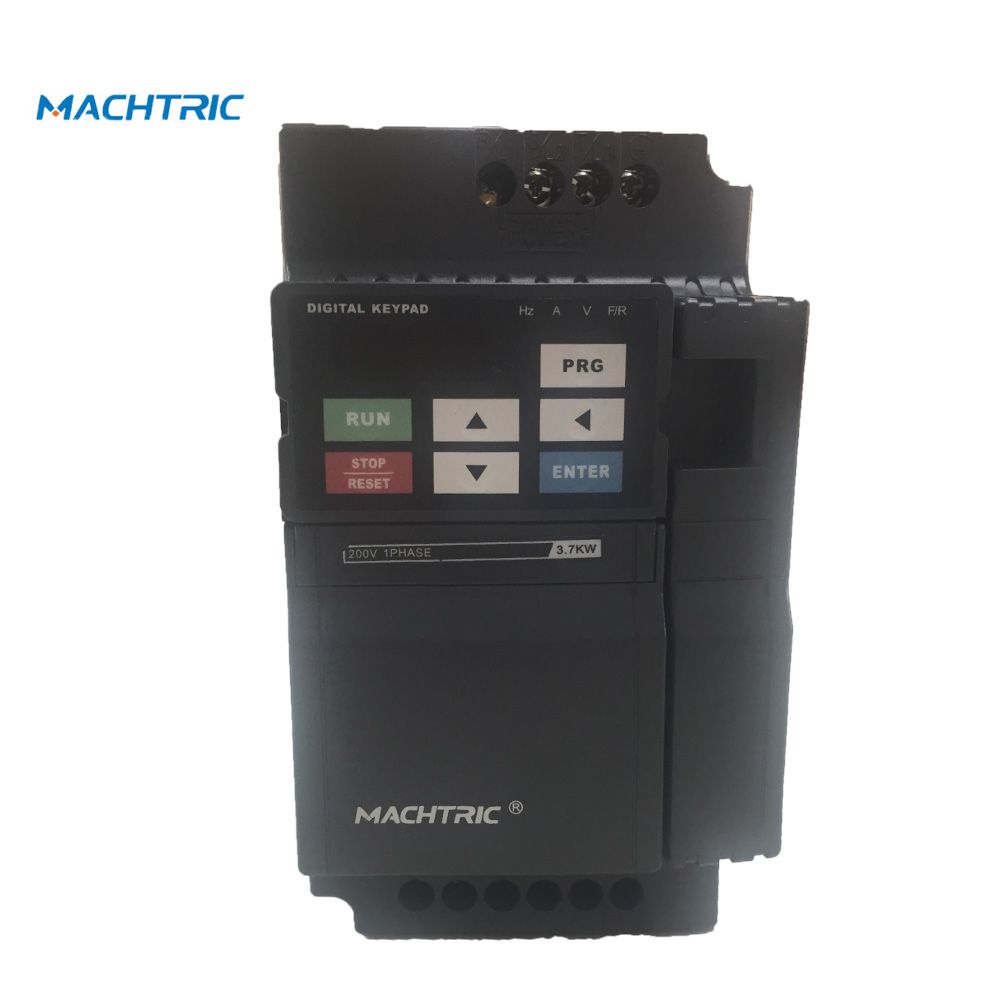

6.Product Show:

7.Contact Us:

Quanzhou Machtric Automation Equipment Co., Ltd., together with three leading enterprises and several affiliated organizations in China and Taiwan has been established to supply "Total Project Solutions" in Industrial Automation.Sanch is geared to integrate the development, manufacture and systems engineering for local and international clients alike.

Our professional teams of engineering, product development, manufacturing and integration staff, devote themselves to the development and application of motor, electric, electronic, microelectronic, information and control technology.

We continue to maintain close co-operation with scientific research institutions both at home and abroad, in order to provide "intelligent" products that not only offer the best solutions, but also have a "humanized" approach to functionality.

At present, our manufacturing capacity is over 100 thousand devices per annum.

This includes products such as:

A/C Frequency Inverters (INVERTER)

Thyristor power controller

Circular knitting machine

Intelligent Control Instruments

Peripheral equipment for Industrial Process Control (IPC)

Microcomputer Controllers for various applications and many others.

In order to service the Chinese market, we have already established dozens of marketing, distribution agents and service organizations, to cover the Northern, Eastern, Central and Southern areas.A Pathway Management System and CRM Customer Relationship Centre with high-efficiency logistic and linkage service has also been established.

SANCH have already applied their range of products and services to the following industries;Textile, dye, ceramic, transportation, building, metallurgy, chemical, light, military ---etc.

SANCH philosophy is to continually improve the electric management platform to account for all facets of applications, thus maximising the competitiveness of technology, quality, service and efficiently in accordance with the principle of satisfying our customers and creating excellent products.

SANCH actively promote a philosophy of, maximising production outputs and yet minimizing energy consumption, using modern technological developments.

Our goal is to achieve "Automation---Energy Saving---Green World", and we will try our best to improve the environment and society as a whole.
