Single Point Load Cell Czl601yd

Name: Single Point Load Cell Czl601yd
Brand: all-electronics-online.com
SKU: 800869695
Availability: InStock
Rating: 4.4 (24 reviews)

Price:	US $ 1.5-1.8/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CZL601YD
Output:	Analog Sensor
Usage:	Weighing Sensor
Theory:	Weighing Sensor

Product Description

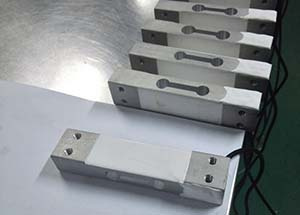

Single Point Load Cell (CZL601YD)

Type:        single point load cell
Material:     aluminum alloy
Surface:      anodized treatment
Protection:   IP65
Suggested Platform Size:
              350 ×350 mm
Application:   retail, bench and
              counting scales

1. Rated Load	3-120 (Kg)
2. Rated Output	2.0mV/V±5%
3. Zero Balance	±1%F.S
4. Input Resistance	400±10Ω
5. Output Resistance	350±3Ω
6. Excitation Voltage	9-12VDC
7. Nonlinearity	0.02%F.S
8. Hysteresis	0.02%F.S
9. Repeatability	0.02%F.S
10.Creep(30min)	0.02%F.S
11.Operating Temperature	-20oC To +65oC
12.Temperature Effect on Zero	0.03%F.S/10oC
13.Temperature Effect on Span	0.02%F.S/10oC
14.Insulation Resistance	5000MΩ(50VDC)
15. Safe Overload	150%F.S
16.Ultimate Overload	200%FS
17. Cable	420mm(3mm 4-wire shielding cable)

Guangdong South China Sea Electronic Measuring Technology Co., Ltd. (SCS)is located at Dongguan City, Guangdong Province, Where is the manufacture centre of China. Established in 1992, it specializes in developing and manufacturing advanced load cells, force sensor, Torque sensor, axle weigher, wheel weigher, pressure transducer based on strain-gages. We also manufacture custom designed load cells and weighing system whatever our customers can dream up. Some of our products have "OIML" and European approved "CE" mark. Hope we will establish a long term business-ship with you.
