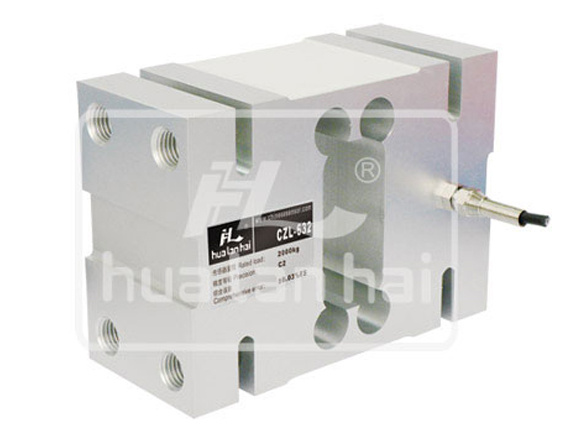

Name: Single Point Load Cell (CZL632)
Brand: all-electronics-online.com
SKU: 760734585
Availability: InStock
Rating: 4.6 (60 reviews)

Price:	US $ 40/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CZL632
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Weighing Sensor
Cable Length:	5X3000mm
Pattern:	Single Point Type

Product Description

Rated load(kg): 50-2500

Main features: The product is made of alloy aluminum. It is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation. The product is suit for electronic top scale, floor scale and other weighing equipment.

Parameters:
Precision : C2		Temp. effect on span(%F.S/10deg C): ±0.02
Comprehensive error(%F.S) : ±0.02		Temp. effect on zero(%F.S/10deg C) : ±0.03
Rated output(mv/v) : 2.0±0.1		Compensated temp. range(deg C) : -10~+40
Creep(%F.S/30min) : ±0.02		Use temp. range(deg C) : -20~+60
Zero balance(%F.S) : ±1.0		Excitation voltage(V) : 9~12(DC)
Input resistance(Ω) : 405±10		Safe overload (%F.S) : 120
Output resistance(Ω) : 350±3		Ultimate overload (%F.S) : 150
Insulation resistance(MΩ) : ≥5000(100VDC)		Defend grade : IP65

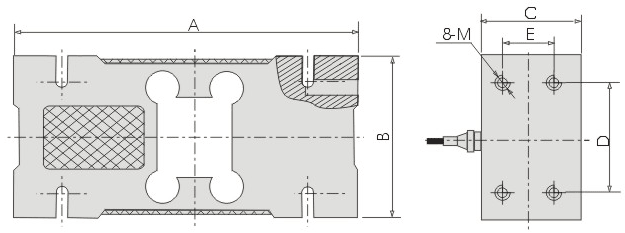

Installation size (mm):

Rated Load(kg)	50-200	250-500	750-2500
Recommended surface size(mm)	600x600	600x600	1200x1200
A	146	156	176
B	75	95	125
C	44	60	76.2
D	50	70	95
E	24	36	46
M	M12	M12	M16

Wiring schematic diagram:

Red: Input ( + ) White: Output ( - )
Black: Input ( - ) Green: Output ( + )

Notes:It used 4-core shielded cable(φ5×3000mm)

Load instruction:

Guangdong South China Sea Electronic Measuring Technology Co., Ltd. (SCS)is located at Dongguan City, Guangdong Province, Where is the manufacture centre of China. Established in 1992, it specializes in developing and manufacturing advanced load cells, force sensor, Torque sensor, axle weigher, wheel weigher, pressure transducer based on strain-gages. We also manufacture custom designed load cells and weighing system whatever our customers can dream up. Some of our products have "OIML" and European approved "CE" mark. Hope we will establish a long term business-ship with you.
